Single-pole 10A C-curve thermal magnetic circuit breaker with 50kA breaking capacity, IP20 protection, and mechanical status indicator for reliable electrical system protection

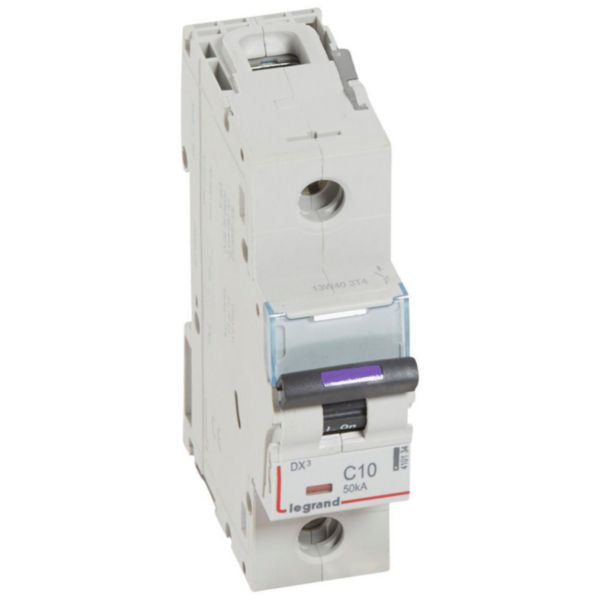

The Legrand DX3 MCB (Miniature Circuit Breaker) is a thermal magnetic circuit-breaker designed to protect wiring installations against overloads and short-circuits. With a rated current of 10A and a C-curve characteristic, this single-pole breaker provides reliable protection for residential and small commercial electrical systems. The device features a 50kA breaking capacity according to IEC 60947-2 standards, making it suitable for demanding applications. The MCB is equipped with a red/green mechanical indicator that clearly displays the status of the contacts (open or closed), and includes a convenient label holder for circuit identification. With IP20 protection rating (fingerproof against solid bodies larger than 12.5mm), this breaker meets modern safety standards and can be installed in flush-mounted or surface-mounted configurations. The device is compatible with Legrand DX3 auxiliaries, RCD add-on modules, and various accessories, allowing for flexible system configurations. Built-in depth of 47mm and a width of 1.5 modular spacings make it ideal for compact installation in distribution panels. Operating at 230V AC with rated insulation voltage of 500V and impulse withstand voltage of 6kV, this circuit breaker ensures comprehensive protection across 50-60Hz frequency ranges. The thermal magnetic tripping mechanism activates at short-circuit currents between 5In and 10In (50A-100A), providing optimal protection without nuisance trips.
Key Features
- 50kA breaking capacity according to IEC 60947-2 standards for superior short-circuit protection
- C-curve characteristic with tripping threshold between 50A and 100A (5In-10In) for optimal load protection
- Red/green mechanical indicator clearly displaying open/closed contact status for easy monitoring
- IP20 protection rating fingerproof against solid bodies larger than 12.5mm for enhanced safety
- Compatible with Legrand DX3 auxiliaries, RCD add-on modules and accessories for flexible configurations
- Compact 1.5 modular spacing design with 47mm built-in depth for space-efficient panel installation
- Copper cable connection capability with optional aluminum cable terminal accessory support
- Rated for 230V AC operation across 50-60Hz frequency range with 500V insulation voltage
- Integrated label holder for clear circuit identification and convenient maintenance access
- Environmentally conscious design complying with substance-restriction requirements
Technical Specifications
| Specification |
Value |
| Product Type | Miniature Circuit Breaker (MCB) - Thermal Magnetic |
| Rated Current | 10 A |
| Number of Poles | 1 (Single Pole) |
| Release Characteristic | C Curve |
| Rated Voltage | 230 V AC |
| Rated Insulation Voltage (Ui) | 500 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Breaking Capacity (Icu) | 50 kA at 230V according to IEC 60947-2 |
| Frequency Range | 50-60 Hz |
| Degree of Protection | IP20 (Fingerproof) |
| Impact Strength Rating | IK02 |
| Width (Modular Spacings) | 1.5 modules |
| Built-in Depth | 47 mm |
| Physical Width | 26.7 mm |
| Physical Height | 127.5 mm |
| Physical Depth | 79.2 mm |
| Connectable Conductor Cross Section (Solid-core) | 1.5-50 mm² |
| Connectable Conductor Cross Section (Multi-wired) | 1.5-35 mm² |
| Operating Temperature Range | -25 to +70 °C |
| Storage Temperature Range | -40 to +70 °C |
| Nominal Voltage Range | 210-250 V |
| Pollution Degree | 3 |
| Installation Type | Flush-mounted |
| Neutral Conductor Switching | No |
| Additional Equipment | Yes (Auxiliaries, RCD modules, accessories compatible) |
| Explosion-proof | No |
| Carbon Footprint (Manufacturing) | 1.451 kg CO₂ eq. |
| Reference Number | 410134 |
| EAN Code | 3245064101349 |
| Brand | Legrand |
| Series | DX³ |
