Professional 4-pole thermal-magnetic circuit breaker with 80A rating, 36kA breaking capacity, C-curve protection, and IP20 finger-safe terminals for residential and commercial electrical installations

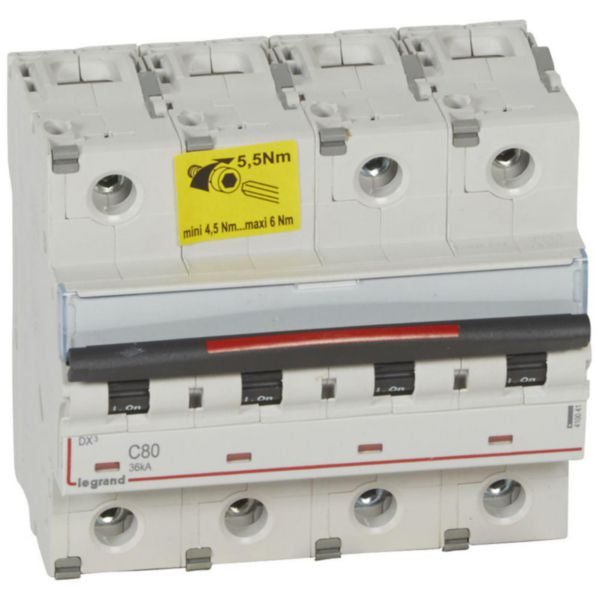

The Legrand DX³ four-pole modular thermal-magnetic circuit breaker (Model 410041) is a professional-grade electrical protection device designed for comprehensive control, protection, and isolation of electrical circuits. With a breaking capacity of 36kA at 400V AC and an 80A C-curve rating, this circuit breaker provides reliable short-circuit protection with a tripping threshold between 400A and 800A. The device features fully visible breaking mechanism and IP20 finger-safe terminals, ensuring safe operation in residential and small commercial installations.
This circuit breaker is equipped with a red/green mechanical indicator that clearly displays the contact status (open or closed) and includes a label holder for convenient circuit identification. The DX³ series is fully compatible with Legrand DX3 auxiliaries, RCD add-on modules, and various accessories, providing flexible configuration options for different electrical applications. Built-in depth of 47mm and occupying 6 modular spacings on DIN rails, it integrates seamlessly into standard electrical panels and distribution boards.
The product complies with IEC 60947-2 standards and features environmentally conscious design with halogen-free materials. Operating across a wide temperature range from -25°C to +70°C, the circuit breaker accommodates both solid-core conductors (6-70mm²) and multi-wired conductors (6-50mm²), making it suitable for diverse installation scenarios. The DX³ series represents Legrand's commitment to safety, reliability, and compliance with international electrical standards.
Key Features
- 4-pole thermal-magnetic circuit breaker with 80A rated current
- 36kA breaking capacity at 400V AC with C-curve characteristic (5-10 In tripping)
- Fully visible breaking mechanism with red/green mechanical status indicator
- IP20 finger-safe terminals protected against solid bodies larger than 12.5mm
- Compatible with Legrand DX3 auxiliaries, RCD add-on modules and accessories
- DIN rail mounting with 6 modular spacing width (106.8mm)
- Wide operating temperature range from -25°C to +70°C
- Accepts both solid-core (6-70mm²) and multi-wired (6-50mm²) conductors
- Built-in label holder for clear circuit identification
- Halogen-free environmentally conscious design
Technical Specifications
| Specification |
Value |
| Product Type | Modular Thermal-Magnetic Circuit Breaker |
| Number of Poles | 4 poles (3 protected + 1 neutral) |
| Rated Current | 80 Amperes |
| Rated Voltage | 400V AC |
| Insulation Voltage | 500V |
| Impulse Withstand Voltage | 6 kV |
| Breaking Capacity at 230V | 72 kA (Icu) |
| Breaking Capacity at 400V | 36 kA (Icu) |
| Trip Characteristic | C Curve (400A-800A short-circuit threshold) |
| Operating Frequency | 50-60 Hz |
| Protection Degree | IP20 (Finger-safe terminals) |
| Impact Strength | IK02 |
| Built-in Depth | 47 mm |
| Overall Width | 106.8 mm |
| Overall Height | 127.5 mm |
| Overall Depth | 79.2 mm |
| Modular Width | 6 module spacings |
| Solid-core Conductor Range | 6-70 mm² |
| Multi-wired Conductor Range | 6-50 mm² |
| Operating Temperature Range | -25°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
| Nominal Voltage Range | 360-440V |
| Supply Direction | Top or bottom |
| Connection Type | Screwed terminal and cable connection |
| Mounting Method | DIN rail |
| Color | Grey (RAL 7035) |
| Material Composition | Halogen-free |
| Pollution Degree | 3 |
| Concurrent Neutral Switching | Yes |
| Additional Equipment Compatible | Yes (RCD modules, auxiliaries, accessories) |
| Flush-mounted Installation | Yes |
| Carbon Footprint (Manufacturing) | 7.173 kg CO₂ eq. |
| Reference Number | 410041 |
| EAN Code | 3245064100410 |
| Compliance Standards | IEC 60947-2, IEC/EN 60529 |
