Description

Shop Legrand DX3 4 Pole 10A Curve D Circuit Breaker | 410225 In Iraq Best Prices

Professional 4-pole thermal-magnetic circuit breaker with 50kA breaking capacity, D-curve 10A tripping, IP20 finger-safe terminals, and visible breaking contacts for reliable electrical circuit protection.

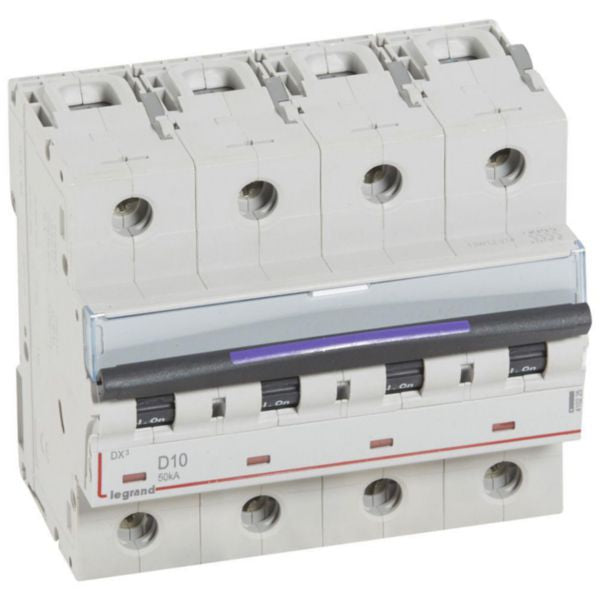

The Legrand DX³ four-pole modular thermal-magnetic circuit breaker is a professional-grade electrical protection device designed for control, protection, and isolation of electrical circuits in residential and small commercial installations. This advanced circuit breaker features a 50kA breaking capacity at 400V~ with D-curve 10A tripping characteristics, making it ideal for circuits requiring moderate overload protection. The device incorporates visible breaking contacts for clear status indication and is equipped with IP20 finger-safe terminals for enhanced safety. This circuit breaker offers exceptional reliability with a rated short-circuit breaking capacity of 50kA at 400V and 100kA at 230V according to IEC 60947-2 standards. The D-curve tripping characteristic provides a tripping threshold between 100A and 140A (10-14 times the rated current), making it suitable for circuits with moderate inrush currents. The device features a red/green mechanical indicator for clear open/closed status display and includes a convenient label holder for circuit identification. The DX³ circuit breaker is designed for DIN rail mounting with a width of 6 modular spacings (106.8mm). It can be supplied from either the top or bottom with copper cables and features concurrently switching neutral conductor capability. The device is halogen-free, environmentally conscious, and complies with all substance-restriction requirements. With an operating temperature range of -25°C to 70°C and storage temperature range of -40°C to 70°C, this circuit breaker ensures reliable performance in various environmental conditions.

Key Features

50kA breaking capacity at 400V~ with IEC 60947-2 compliance
D-curve tripping characteristic with 100A-140A threshold (10-14 In)
IP20 finger-safe terminals protected against solid bodies larger than 12.5mm
Red/green mechanical indicator for clear open/closed status display
Compatible with Legrand DX3 auxiliaries, RCD add-on modules and accessories
Concurrently switching neutral conductor for enhanced safety
DIN rail mounting with 6 modular spacings (106.8mm width)
Halogen-free and environmentally conscious design
Label holder for convenient circuit identification
Top or bottom copper cable supply capability

Technical Specifications

Specification	Value
Product Type	Modular Thermal-Magnetic Circuit Breaker
Number of Poles	4 poles (3 protected + 1 neutral)
Rated Current	10 Amperes
Tripping Curve	D-curve (100A-140A threshold)
Rated Voltage	400V AC
Rated Insulation Voltage (Ui)	500V
Rated Impulse Withstand Voltage (Uimp)	6kV
Breaking Capacity at 400V	50kA (Icu)
Breaking Capacity at 230V	100kA (Icu)
Frequency	50-60 Hz
Degree of Protection	IP20 (finger-safe)
Degree of Impact Strength	IK02
Width (Modular Spacings)	6 modules
Physical Width	106.8mm
Physical Height	127.5mm
Physical Depth	79.2mm
Built-in Depth	47mm
Mounting Method	DIN rail
Connection Type	Screwed terminal, Cable
Conductor Cross-Section (Multi-wired)	1.5-35mm²
Conductor Cross-Section (Solid-core)	1.5-50mm²
Operating Temperature Range	-25°C to +70°C
Storage Temperature Range	-40°C to +70°C
Nominal Voltage Range	360-440V
Supply Direction	Top or bottom
Neutral Conductor Switching	Concurrently switching
Pollution Degree	3
Additional Equipment Possible	Yes
Colour	Grey (RAL 7035)
Halogen Free	Yes
Reference Number	410225
EAN Code	3245064102254
Carbon Footprint (Manufacturing)	6.889 kg CO₂ eq.
Flush-mounted Installation	Yes
Label Space/Information Surface	Yes

Order Legrand DX3 4 Pole 10A Curve D Circuit Breaker | 410225 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
