Premium 3-pole 63A modular circuit breaker with 50kA breaking capacity, C-curve protection, IP20 finger-safe terminals, and DIN rail mounting for residential and commercial electrical installations.

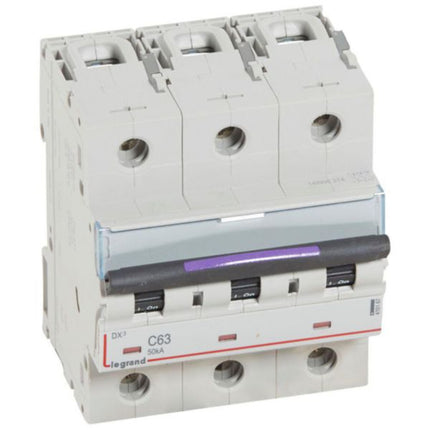

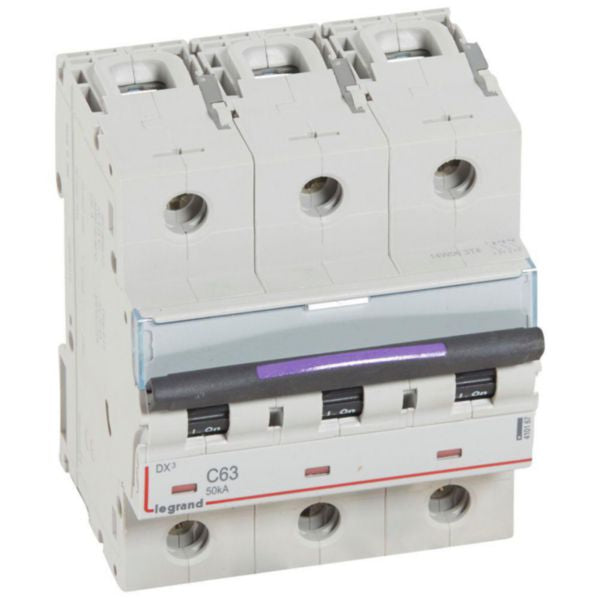

The Legrand DX3 3 Pole 63A Curve C is a premium modular thermal-magnetic circuit breaker designed for comprehensive control, protection, and isolation of electrical circuits in residential and small commercial applications. This advanced device delivers an impressive 50kA breaking capacity at 400V and features a C-curve tripping characteristic that provides optimal protection with a tripping threshold between 315A and 630A (5-10 times the rated current). The circuit breaker is engineered with IP20 finger-safe terminals, ensuring maximum safety during installation and maintenance operations.
With a built-in depth of just 47mm and a width of 4.5 modular spacings, this compact device integrates seamlessly into standard DIN rail-mounted distribution panels. The DX3 series incorporates a red/green mechanical indicator that clearly displays the contact status (open or closed), and features a convenient label holder for circuit identification. The device supports both top and bottom copper cable supply connections, offering flexibility in installation configurations. It operates reliably across a frequency range of 50-60Hz and maintains performance in ambient temperatures from -25°C to +70°C.
The DX3 3 Pole 63A Curve C is fully compatible with Legrand DX3 auxiliaries, RCD add-on modules, and various accessories, making it an ideal choice for modular electrical installations. Built with halogen-free materials and designed through environmentally conscious manufacturing processes, this circuit breaker complies with RoHS directives and substance-restriction requirements. Its robust construction with IK02 impact resistance ensures durability in demanding installation environments.
Key Features
- 50kA breaking capacity at 400V with IEC 60947-2 compliance for superior short-circuit protection
- C-curve tripping characteristic with threshold between 315A-630A (5-10In) for optimal load protection
- IP20 finger-safe terminals providing maximum safety during installation and maintenance
- Red/green mechanical indicator clearly displaying open/closed contact status for easy circuit monitoring
- Compatible with Legrand DX3 auxiliaries, RCD add-on modules and comprehensive accessory range
- Compact 4.5 modular spacing design fitting seamlessly into standard DIN rail distribution panels
- Flexible top or bottom copper cable supply connections accommodating various installation configurations
- Halogen-free construction with environmentally conscious manufacturing meeting RoHS requirements
- Reliable operation across 50-60Hz frequency range and -25°C to +70°C ambient temperature
- Built-in label holder for convenient and clear circuit identification in complex installations
Technical Specifications
| Specification |
Value |
| Product Type | Modular Thermal-Magnetic Circuit Breaker |
| Number of Poles | 3 poles (3P) |
| Rated Current | 63 Amperes |
| Rated Voltage | 400V AC |
| Rated Insulation Voltage | 500V |
| Rated Impulse Withstand Voltage | 6 kV |
| Breaking Capacity at 230V | 100 kA (Icu according to IEC 60947-2) |
| Breaking Capacity at 400V | 50 kA (Icu according to IEC 60947-2) |
| Release Characteristic | Curve C (5-10 times rated current) |
| Tripping Threshold | 315A to 630A |
| Frequency Range | 50-60 Hz |
| Operating Temperature Range | -25°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
| Degree of Protection | IP20 (finger-safe terminals) |
| Impact Resistance | IK02 |
| Built-in Depth | 47 mm |
| Width | 80.1 mm |
| Height | 127.5 mm |
| Depth Overall | 79.2 mm |
| Modular Spacing Width | 4.5 modules |
| Connectable Conductor Cross-Section (Solid) | 1.5-50 mm² |
| Connectable Conductor Cross-Section (Multi-wired) | 1.5-35 mm² |
| Connection Type | Screwed Terminal with Cable |
| Supply Direction | Top or Bottom |
| Mounting Method | DIN Rail |
| Flush-Mounted Installation | Yes |
| Concurrent Neutral Switching | No |
| Pollution Degree | 3 |
| Additional Equipment Possible | Yes (RCD modules, auxiliaries) |
| Colour | Grey (RAL 7035) |
| Halogen Free | Yes |
| Label Space | Yes (Built-in label holder) |
| Mechanical Indicator | Red/Green (Open/Closed Status) |
| Nominal Voltage Range | 360-440V |
| Carbon Footprint (Manufacturing) | 5.755 kg CO₂ eq. |
| Reference Number | 410167 |
| EAN Code | 3245064101677 |
| Standards Compliance | IEC 60947-2, IEC/EN 60529, RoHS Directive |
Order Legrand DX3 3 Pole 63A Circuit Breaker Curve C | 410167 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
