Shop Legrand DPX-IS 630 Isolating Switch 4P 630A Right-Hand | 26679 In Iraq Best Prices
Professional isolating switch with 630A capacity, 690V rating, and integrated padlock for secure electrical isolation and maintenance operations

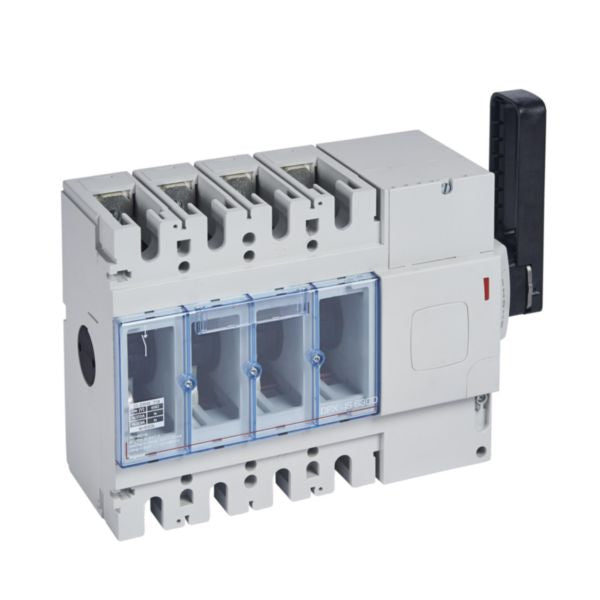

The Legrand DPX-IS 630 is a professional-grade isolating switch designed for industrial and commercial electrical installations. This four-pole switch features a rated permanent current of 630 A and operates at voltages up to 690 V AC, making it suitable for demanding applications requiring reliable on-load circuit breaking with visible isolation and positive contact action. The switch incorporates a padlock-integrated handle for enhanced safety and security, ensuring that the device remains in the desired position during maintenance or emergency situations.
This isolating switch is manufactured to comply with IEC 60947-3 standards and is classified as Category AC-23A for use. It features screw-type electrical connections for the main circuit and can be mounted on plates within XL³ enclosures, making it versatile for various installation configurations. The device is equipped with terminal shields and cage terminals as standard, providing additional protection and ease of installation. With a rated short-time withstand current of 15 kA and a conditioned rated short-circuit current of 100 kA, this switch offers robust protection against electrical faults.
The DPX-IS 630 with release version can be associated with a residual current relay featuring a separate coil, supplied without shunt trip. The right-hand side rocker lever control element is color-coded in black for easy identification. This switch is suitable for use as a main switch, maintenance/service switch, safety switch, and emergency stop installation, providing comprehensive electrical protection and control capabilities for industrial facilities.
Key Features
- On-load circuit breaking with visible isolation and positive contact action
- Integrated padlock in handle for enhanced safety and security
- IEC 60947-3 compliant with AC-23A category rating
- Suitable for main switch, maintenance switch, safety switch, and emergency stop installations
- Screw-type electrical connections with terminal shields and cage terminals included
- Rated short-circuit withstand current of 15 kA with 100 kA conditioned rating
- Right-hand side rocker lever control element in black
- Compatible with residual current relay with separate coil
- Mountable on plates in XL³ enclosures for flexible installation
- Motor drive and voltage release optional capabilities
Technical Specifications
| Specification |
Value |
| Product Type | Isolating Switch with Release |
| Model | DPX-IS 630 |
| Reference Number | 026679 |
| EAN Code | 3245060266790 |
| Number of Poles | 4 Poles (4P) |
| Rated Permanent Current | 630 A |
| Maximum Rated Operation Voltage | 690 V AC |
| Rated Operating Voltage Range | 230-690 V |
| Rated Operation Power at AC-23, 400V | 252 kW |
| Rated Short-Time Withstand Current | 15 kA |
| Conditioned Rated Short-Circuit Current | 100 kA |
| Category of Use | AC-23A |
| Control Element Type | Rocker Lever |
| Control Element Color | Black |
| Handle Configuration | Right-Hand Side |
| Main Circuit Connection Type | Screw Connection |
| Degree of Protection (Front) | IP20 |
| Device Construction | Complete Device in Housing |
| Auxiliary Contacts (Normally Open) | 0 |
| Auxiliary Contacts (Normally Closed) | 0 |
| Auxiliary Contacts (Change-Over) | 4 |
| Mounting Capability | Floor mounting, Front mounting 4-hole, Distribution board installation |
| Enclosure Compatibility | XL³ Enclosures |
| Interlockable | Yes |
| Voltage Release | Optional |
| Motor Drive | Optional |
| Standards Compliance | IEC 60947-3 |
| Accessories Included | Terminal Shields, Cage Terminals, Integrated Padlock |
