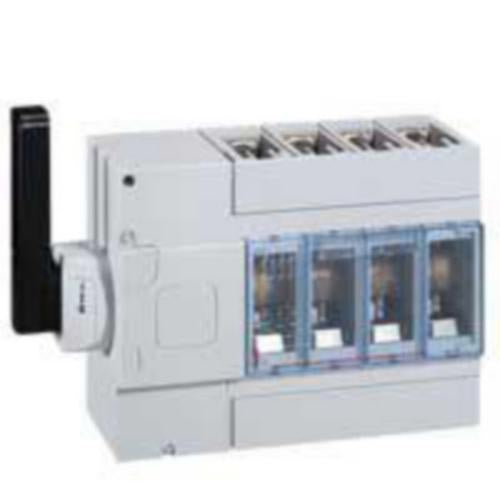

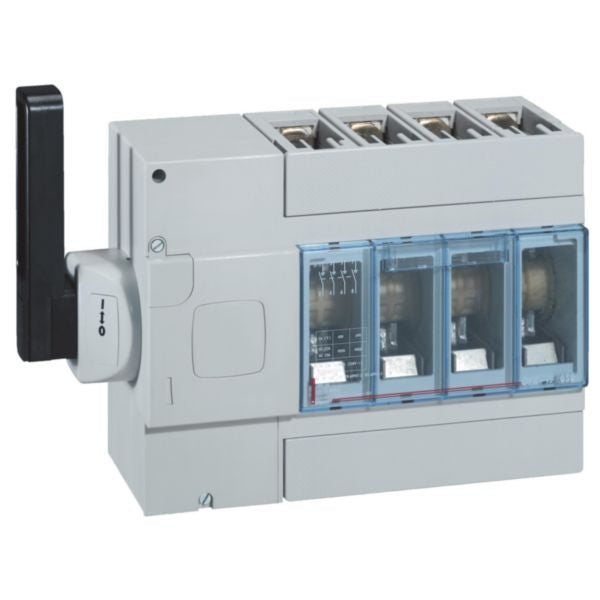

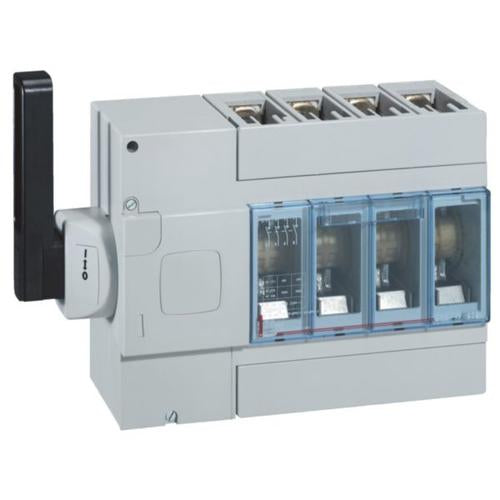

Shop Legrand DPX-IS 630 Isolating Switch 4P 400A Left Handle | 26682 In Iraq Best Prices
Professional 4-pole isolating switch with 400A rated current, 690V maximum voltage, and integrated padlock handle for secure maintenance operations. Complies with IEC 60947-3 standards and features visible isolation with positive contact action.
The Legrand DPX-IS 630 is a professional-grade isolating switch designed for industrial and commercial electrical installations. This 4-pole isolating switch features a rated permanent current of 400A and operates at a maximum voltage of 690V AC, making it suitable for heavy-duty applications requiring on-load circuit breaking with visible isolation and positive action of contacts. The switch incorporates a padlock-integrated handle for enhanced safety and security during maintenance operations, and is supplied with terminal shields and cage terminals for reliable electrical connections.
This isolating switch complies with IEC 60947-3 standards and is classified as Category AC 23A, ensuring compatibility with various electrical auxiliaries. The DPX-IS 630 can be mounted on plates within XL³ enclosures and is suitable for floor mounting, front mounting with 4-hole configuration, and distribution board installation. With a rated short-time withstand current of 15 kA and a conditioned rated short-circuit current of 100 kA, this switch provides exceptional protection and reliability in demanding industrial environments.
The left-hand side rocker lever control element offers intuitive operation, while the device construction in complete housing ensures durability and protection. With 4 auxiliary contacts as change-over contacts and optional voltage release capabilities, this isolating switch can be integrated into complex electrical systems for comprehensive circuit management and protection.
Key Features
- On-load circuit breaking with visible isolation and positive contact action
- Integrated padlock in handle for enhanced safety during maintenance
- 4-pole configuration with 400A rated permanent current at 690V AC
- Supplied with terminal shields and cage terminals for reliable connections
- 4 auxiliary change-over contacts for complex circuit integration
- Rated short-circuit withstand current of 15 kA with 100 kA conditioned rating
- Multiple mounting options including floor, front 4-hole, and distribution board installation
- Rocker lever control element with black color for clear visibility
- Optional voltage release capability for electrical auxiliaries integration
- IEC 60947-3 compliant for international standard compatibility
Technical Specifications
| Specification |
Value |
| Product Type | Isolating Switch with Release |
| Model | DPX-IS 630 |
| Number of Poles | 4P (4-pole) |
| Rated Permanent Current | 400 A |
| Maximum Rated Operation Voltage | 690 V AC |
| Rated Operating Voltage Range | 230-690 V |
| Rated Short-Time Withstand Current | 15 kA |
| Conditioned Rated Short-Circuit Current | 100 kA |
| Rated Operation Power at AC-23, 400V | 160 kW |
| Category of Use | AC 23A |
| Number of Auxiliary Change-Over Contacts | 4 |
| Control Element Type | Rocker Lever |
| Control Element Color | Black |
| Handle Position | Left-Hand Side |
| Main Circuit Connection Type | Screw Connection |
| Degree of Protection (IP), Front Side | IP20 |
| Device Construction | Complete Device in Housing |
| Mounting Options | Floor Mounting, Front Mounting 4-Hole, Distribution Board Installation |
| Voltage Release | Optional |
| Interlockable | Yes |
| Compliance Standards | IEC 60947-3 |
| Reference Number | 026682 |
| EAN Code | 3245060266820 |
