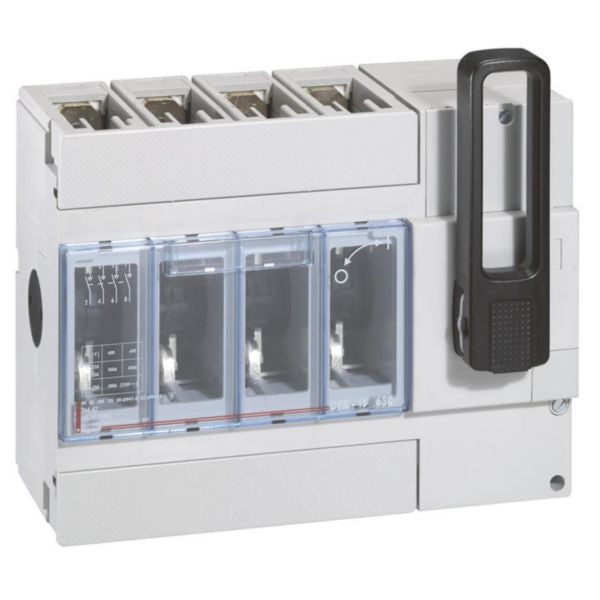

Shop Legrand DPX-IS 630 Isolating Switch 4 Poles 400A | 26662 In Iraq Best Prices

Professional isolating switch for on-load circuit breaking with 4 poles, 400A rated current, visible isolation, and positive contact action. EN/IEC 60947-3 compliant with 800V insulation voltage and 100kA short-circuit rating.

The Legrand DPX-IS 630 is a professional-grade isolating switch designed for on-load circuit breaking with visible isolation and positive contact action. This 4-pole isolating switch features a rated current of 400A and is specifically engineered for commercial and medium power installations according to EN/IEC standard 60947-3, ensuring compliance with NEMA AB-1 requirements. The switch operates in AC-23 category use with a rated insulation voltage of 800V and a rated impulse withstand voltage of 8kV, making it ideal for demanding industrial and commercial applications. The DPX-IS 630 incorporates advanced safety features including cage terminals supplied with terminal shields for secure connections, and an integrated padlock in the handle for enhanced security during maintenance operations. The device can be equipped with emergency use handles or vari-depth handles depending on application requirements. With a rated short-time withstand current of 15kA and conditioned rated short-circuit current of 100kA, this switch provides reliable protection in high-demand environments. This isolating switch is suitable for multiple applications including use as a main switch, maintenance/service switch, or safety switch. The device features a turn button control element with black coloring and is interlockable for enhanced operational safety. It can be mounted on plates in XL³ or XL³ S enclosures and is suitable for floor mounting, front mounting with 4-hole configuration, and distribution board installation. The IP20 degree of protection on the front side ensures adequate protection against dust and contact hazards in industrial settings.

Key Features

On-load circuit breaking capability with visible isolation and positive contact action
4-pole configuration with 400A rated permanent current suitable for commercial and medium power installations
EN/IEC 60947-3 compliant and NEMA AB-1 certified for international standards compliance
Integrated padlock in handle with emergency use handle and vari-depth handle options for enhanced security
Cage terminals with terminal shields, 15kA short-time withstand current, and 100kA short-circuit rating
Multiple mounting options including XL³ enclosures, floor mounting, front 4-hole mounting, and distribution boards
AC-23 category use with 800V insulation voltage and 8kV impulse withstand voltage
Turn button control with black color, interlockable design, and IP20 front protection degree

Technical Specifications

Specification	Value
Product Model	DPX-IS 630
Reference Number	026662
EAN Code	3245060266622
Manufacturer	Legrand
Number of Poles	4 poles
Rated Permanent Current (Iu)	400 A
Rated Operating Voltage (Ue AC)	690 V
Rated Operating Voltage Range	230-690 V
Rated Insulation Voltage	800 V
Rated Impulse Withstand Voltage	8 kV
Category of Use	AC-23
Rated Short-Time Withstand Current (Icw)	15 kA
Rated Operation Power at AC-23, 400V	160 kW
Conditioned Rated Short-Circuit Current (Iq)	100 kA
Rated Permanent Current at AC-21, 400V	400 A
Auxiliary Contacts (Normally Closed)	0
Auxiliary Contacts (Normally Open)	0
Auxiliary Contacts (Change-over)	4
Control Element Type	Turn button
Control Element Color	Black
Device Construction	Complete device in housing
Electrical Connection Type	Screw connection
Degree of Protection (IP)	IP20
Motor Drive	Optional (not integrated)
Voltage Release	Optional
Interlockable	Yes
Floor Mounting	Yes
Front Mounting 4-Hole	Yes
Distribution Board Installation	Yes
Version as Main Switch	Yes
Version as Maintenance Switch	Yes
Version as Safety Switch	Yes
Version as Emergency Stop	No
Version as Reversing Switch	No
Applicable Standards	EN/IEC 60947-3, NEMA AB-1
Handle Type	Front handle with integrated padlock
Optional Handle Configurations	Emergency use handle, Vari-depth handle
Connection Type	Cage terminals with terminal shields
Mounting Options	XL³/XL³ S enclosures, floor mounting, front 4-hole mounting, distribution boards

Order Legrand DPX-IS 630 Isolating Switch 4 Poles 400A | 26662 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
