Description

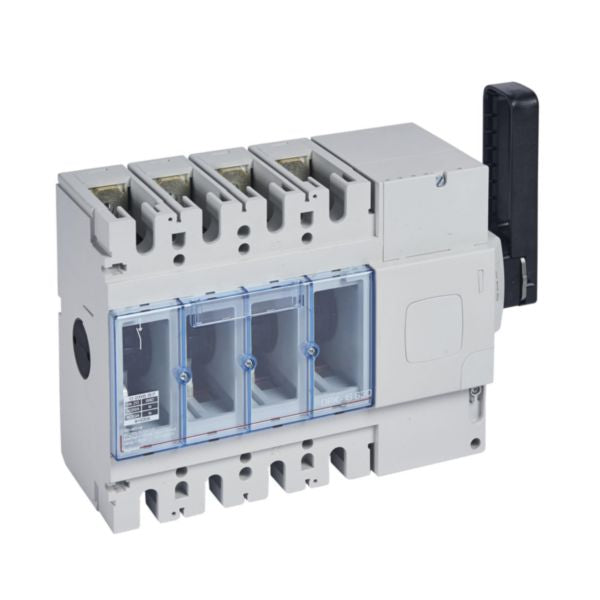

Shop Legrand DPX-IS 630 Isolating Switch 4 Poles 630A | 26667 In Iraq Best Prices

Professional isolating switch for on-load circuit breaking with 630A rated current, 4 poles, visible isolation, and positive contact action. Compliant with EN/IEC 60947-3 and NEMA AB-1 standards.

The Legrand DPX-IS 630 is a professional-grade isolating switch designed for on-load circuit breaking with visible isolation and positive contact action. This four-pole switch is rated at 630A and complies with EN/IEC standard 60947-3 and NEMA AB-1 specifications, making it suitable for commercial and middle power installations. The device features a rated insulation voltage of 800V with a rated impulse withstand voltage of 8kV, ensuring reliable performance in demanding electrical environments. This isolating switch is equipped with cage terminals and integrated terminal shields for secure and safe connections. The DPX-IS 630 can function as a main switch, maintenance/service switch, or safety switch, providing versatile application options for industrial and commercial settings. The device features a black rocker lever control element and can be interlocked for enhanced safety. With a maximum rated operation voltage of 690V AC and a conditioned rated short-circuit current of 100kA, this switch delivers exceptional reliability and protection. The DPX-IS 630 is designed for mounting on plates within XL³ or XL³ S enclosures and is suitable for distribution board installation, front mounting with 4-hole configuration, and floor mounting. It includes a padlock integrated into the handle and can be equipped with emergency use handles or vari-depth handles for operational flexibility. The switch maintains a degree of protection IP20 on the front side and includes four auxiliary change-over contacts for comprehensive circuit control.

Key Features

On-load circuit breaking with visible isolation and positive contact action
Four poles with 630A rated permanent current capacity
Compliant with EN/IEC standard 60947-3 and NEMA AB-1 specifications
Rated insulation voltage of 800V with 8kV impulse withstand voltage
Integrated padlock in handle with emergency use and vari-depth handle options
Four auxiliary change-over contacts for comprehensive circuit control
Cage terminals with integrated terminal shields for secure connections
Suitable for main switch, maintenance/service switch, and safety switch applications
Compatible with XL³ and XL³ S enclosures for flexible mounting
IP20 degree of protection on front side

Technical Specifications

Specification	Value
Product Type	Isolating Switch
Model	DPX-IS 630
Manufacturer	Legrand
Reference Number	026667
EAN Code	3245060266677
Number of Poles	4
Rated Permanent Current (Iu)	630 A
Maximum Rated Operation Voltage (Ue AC)	690 V
Rated Operating Voltage Range	230-690 V
Rated Insulation Voltage	800 V
Rated Impulse Withstand Voltage	8 kV
Rated Short-time Withstand Current (Icw)	15 kA
Conditioned Rated Short-circuit Current (Iq)	100 kA
Rated Operation Power at AC-23, 400V	252 kW
Category of Use	AC23
Auxiliary Contacts - Normally Closed	0
Auxiliary Contacts - Normally Open	0
Auxiliary Contacts - Change-over	4
Device Construction	Complete device in housing
Control Element Type	Rocker lever
Control Element Color	Black
Electrical Connection Type	Screw connection
Degree of Protection (IP) - Front Side	IP20
Suitable for Main Switch	Yes
Suitable for Maintenance/Service Switch	Yes
Suitable for Safety Switch	Yes
Suitable for Emergency Stop	No
Suitable for Reversing Switch	No
Motor Drive Optional	No
Motor Drive Integrated	No
Voltage Release Optional	No
Interlockable	Yes
Suitable for Floor Mounting	Yes
Suitable for Front Mounting 4-hole	Yes
Suitable for Front Mounting Centre	No
Suitable for Distribution Board Installation	Yes
Suitable for Intermediate Mounting	No
Terminal Type	Cage terminals with terminal shields
Compatible Enclosures	XL³ and XL³ S enclosures
Handle Features	Integrated padlock, optional emergency use handle, optional vari-depth handle
Standards Compliance	EN/IEC 60947-3, NEMA AB-1

Order Legrand DPX-IS 630 Isolating Switch 4 Poles 630A | 26667 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
