Shop Legrand DPX-IS 630 Isolating Switch 4 Poles 400A | 26674 In Iraq Best Prices
Professional-grade 4-pole isolating switch with 400A rated current, rated insulation voltage of 800V, and 160 kW operation power. Features visible isolation, positive contact action, and integrated padlock safety mechanism for commercial and industrial applications.

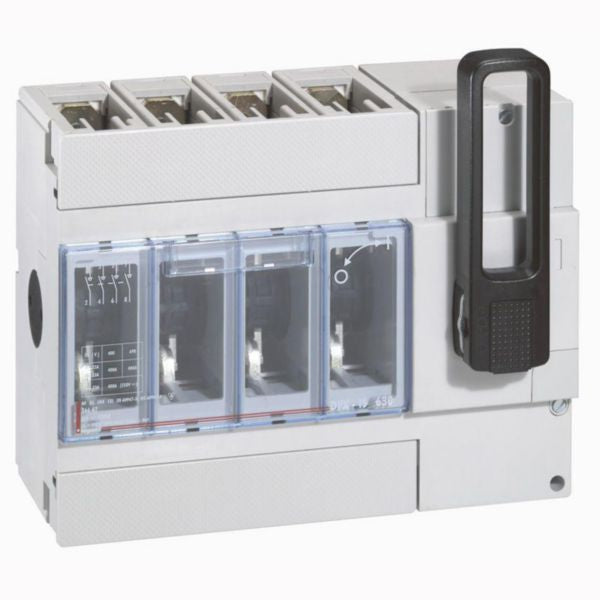

The Legrand DPX-IS 630 is a high-performance isolating switch designed for on-load circuit breaking with visible isolation and positive contact action. This 4-pole switch is rated for 400A continuous current and is suitable for commercial and middle power installations according to EN/IEC standard 60947-3, ensuring compliance with NEMA AB-1 requirements. The switch features a rated insulation voltage of 800V with a rated impulse withstand voltage of 8kV, making it ideal for demanding industrial and commercial applications.
This isolating switch is equipped with cage terminals and supplied with terminal shields for secure and reliable connections. The DPX-IS 630 can function as a main switch, maintenance/service switch, safety switch, or emergency stop installation, providing versatile operational capabilities. The device features a turn button control element with black color and includes an integrated padlock in the handle for safety purposes. With a rated operation power of 160 kW at AC-23 and 400V, and a conditioned rated short-circuit current of 100 kA, this switch delivers exceptional performance and reliability.
The DPX-IS 630 is suitable for floor mounting, front mounting (4-hole), and distribution board installation within XL³ or XL³ S enclosures. It offers IP20 degree of protection on the front side and features interlockable design capabilities. The switch includes 4 change-over auxiliary contacts and can be optionally equipped with voltage release, emergency use handle, or vari-depth handle for enhanced operational flexibility and safety.
Key Features
- On-load circuit breaking with visible isolation and positive contact action
- 4-pole configuration with 400A rated continuous current capacity
- Rated insulation voltage of 800V with 8kV impulse withstand voltage
- Multiple operational modes: main switch, maintenance switch, safety switch, emergency stop
- Integrated padlock in handle with optional emergency use handle or vari-depth handle
- Cage terminals with supplied terminal shields for secure connections
- 4 change-over auxiliary contacts for enhanced control flexibility
- Optional voltage release capability for advanced safety features
- IP20 degree of protection on front side
- Compliant with EN/IEC 60947-3 and NEMA AB-1 standards
Technical Specifications
| Specification |
Value |
| Product Model | DPX-IS 630 |
| Manufacturer | Legrand |
| Reference Number | 026674 |
| EAN Code | 3245060266745 |
| Number of Poles | 4 poles |
| Rated Permanent Current (Iu) | 400 A |
| Rated Operation Voltage (Ue AC) | 690 V |
| Rated Operating Voltage Range | 230-690 V |
| Rated Insulation Voltage | 800 V |
| Rated Impulse Withstand Voltage | 8 kV |
| Rated Operation Power (AC-23, 400V) | 160 kW |
| Rated Short-time Withstand Current (Icw) | 15 kA |
| Conditioned Rated Short-circuit Current (Iq) | 100 kA |
| Category of Use | AC23 |
| Connection Type | Cage terminals with terminal shields |
| Electrical Connection | Screw connection |
| Control Element Type | Turn button |
| Control Element Color | Black |
| Auxiliary Contacts - Normally Closed | 0 |
| Auxiliary Contacts - Normally Open | 0 |
| Auxiliary Contacts - Change-over | 4 |
| Degree of Protection (IP) - Front | IP20 |
| Mounting Options | Floor mounting, front mounting (4-hole), distribution board installation |
| Enclosure Compatibility | XL³ or XL³ S enclosures |
| Device Construction | Complete device in housing |
| Interlockable | Yes |
| Motor Drive | Not integrated, optional motor drive available |
| Voltage Release | Optional |
| Version as Main Switch | Yes |
| Version as Maintenance/Service Switch | Yes |
| Version as Safety Switch | Yes |
| Version as Emergency Stop Installation | Yes |
| Optional Handle Types | Emergency use handle, vari-depth handle |
| Safety Features | Integrated padlock in handle |
| Standards Compliance | EN/IEC 60947-3, NEMA AB-1 |
