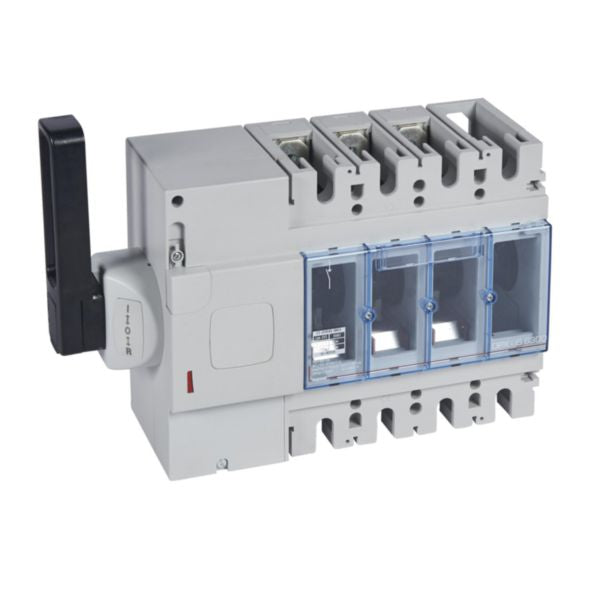

Shop Legrand DPX-IS 630 Isolating Switch 3P 400A Left Handle | 26680 In Iraq Best Prices
Professional 3-pole isolating switch with 400A rating, 690V AC operation, integrated padlock, and advanced safety features for industrial applications
The Legrand DPX-IS 630 is a professional-grade isolating switch designed for on-load circuit breaking with visible isolation and positive action contact mechanism. This three-pole switch is rated for 400A continuous current and operates at voltages up to 690V AC, making it suitable for demanding industrial and commercial applications. The switch features an integrated padlock in the handle for safety, terminal shields for protection, and cage terminals for secure connections. It conforms to IEC 60947-3 standards and is categorized as AC 23A for use as main switches, maintenance/service switches, safety switches, and emergency stop installations.
This isolating switch comes with release capability and can be associated with a residual current relay with separate coil for enhanced protection. The left-hand side rocker lever control element is color-coded black and provides intuitive operation. With a rated short-time withstand current of 15 kA and a conditioned rated short-circuit current of 100 kA, this device offers exceptional reliability and protection. The switch is suitable for floor mounting, front mounting with 4-hole configuration, and distribution board installation, providing flexible deployment options for various electrical infrastructure setups.
The DPX-IS 630 is engineered to meet rigorous international standards and delivers consistent performance in mission-critical applications. Its robust construction, combined with advanced electrical characteristics and safety features, makes it an ideal choice for industrial facilities, power distribution centers, and commercial electrical systems requiring reliable on-load isolation and circuit protection.
Key Features
- On-load circuit breaking with visible isolation and positive action contact mechanism
- Integrated padlock in handle for enhanced safety and security
- Terminal shields and cage terminals for secure electrical connections
- IEC 60947-3 compliant with AC 23A category rating
- Suitable for main switches, maintenance, safety, and emergency stop installations
- Left-hand side rocker lever control element with black color coding
- Accepts optional electrical auxiliaries and residual current relays
- Mountable on plate in XL³ enclosures and distribution boards
- Interlockable design for coordinated operation
- IP20 degree of protection on front side
Technical Specifications
| Specification |
Value |
| Product Type | Isolating Switch with Release |
| Manufacturer | Legrand |
| Model | DPX-IS 630 |
| Reference Number | 026680 |
| EAN Code | 3245060266806 |
| Number of Poles | 3 poles (3P) |
| Rated Permanent Current (Iu) | 400 A |
| Rated Permanent Current at AC-21, 400V | 400 A |
| Maximum Rated Operation Voltage (Ue AC) | 690 V |
| Rated Operating Voltage Range | 230-690 V AC |
| Rated Short-time Withstand Current (Icw) | 15 kA |
| Rated Operation Power at AC-23, 400V | 160 kW |
| Conditioned Rated Short-circuit Current (Iq) | 100 kA |
| Category of Use | AC 23A |
| Control Element Type | Rocker lever |
| Control Element Color | Black |
| Handle Type | Left-hand side handle |
| Number of Auxiliary Contacts (Normally Closed) | 0 |
| Number of Auxiliary Contacts (Normally Open) | 0 |
| Number of Auxiliary Contacts (Change-over) | 4 |
| Electrical Connection Type | Screw connection |
| Device Construction | Complete device in housing |
| Degree of Protection (IP) - Front Side | IP20 |
| Motor Drive | Not integrated or optional |
| Voltage Release | Optional |
| Interlockable | Yes |
| Suitable for Floor Mounting | Yes |
| Suitable for Front Mounting (4-hole) | Yes |
| Suitable for Distribution Board Installation | Yes |
| Version as Main Switch | Yes |
| Version as Maintenance/Service Switch | Yes |
| Version as Safety Switch | Yes |
| Version as Emergency Stop Installation | Yes |
| Compliance Standards | IEC 60947-3 |
| Safety Features | Integrated padlock in handle, terminal shields, cage terminals |
