Shop Legrand DPX-IS 250 Isolating Switch 4P 160A Right-Hand | 26616 In Iraq Best Prices
Professional isolating switch with 160A capacity, 690V rating, visible isolation, integrated padlock, and compliance with IEC 60947-3 standards for industrial applications.

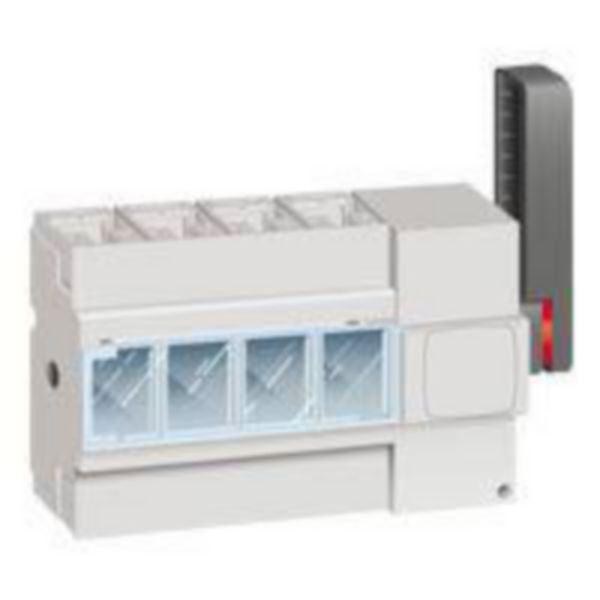

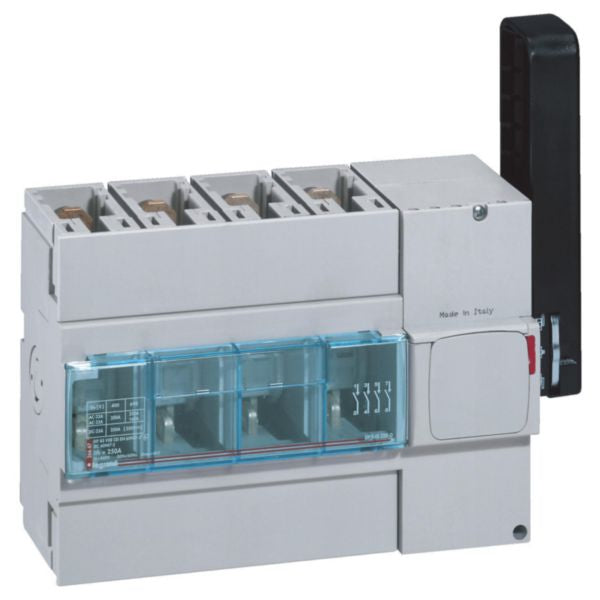

The Legrand DPX-IS 250 is a professional-grade isolating switch designed for on-load circuit breaking with visible isolation and positive action of contacts. This 4-pole, 160A rated switch features a right-hand side rocker lever handle and is fully compliant with IEC 60947-3 standards. The device is engineered for safe electrical disconnection in industrial and commercial applications, offering reliable protection and control for electrical distribution systems.
This isolating switch is equipped with an integrated padlock mechanism in the handle for enhanced security during maintenance operations. The switch features cage terminals for reliable connections and comes supplied with terminal shields for added protection. With a maximum rated operation voltage of 690V AC and rated permanent current of 160A, this device is suitable for AC-21 applications at 400V with a rated operation power of 64 kW. The switch can withstand a rated short-time current of 9 kA and a conditioned rated short-circuit current of 100 kA.
The DPX-IS 250 is versatile in installation, suitable for floor mounting, front mounting with 4-hole configuration, and distribution board installation. It features three auxiliary change-over contacts for enhanced control capabilities and offers an IP20 degree of protection on the front side. The black rocker lever control element provides intuitive operation, while the interlockable design allows for coordinated control in complex electrical systems.
Key Features
- On-load circuit breaking with visible isolation and positive contact action
- Integrated padlock mechanism in handle for maintenance security
- Cage terminal connections with supplied terminal shields
- IEC 60947-3 compliant for international safety standards
- Three auxiliary change-over contacts for enhanced control
- Suitable for floor, front, and distribution board mounting
- Black rocker lever control element for intuitive operation
- Interlockable design for coordinated electrical system control
Technical Specifications
| Specification |
Value |
| Product Type | Isolating Switch - DPX-IS 250 Series |
| Number of Poles | 4 Poles (4P) |
| Rated Permanent Current | 160 A |
| Maximum Rated Operation Voltage | 690 V AC |
| Rated Operating Voltage Range | 230-690 V |
| Rated Operation Power at AC-21, 400V | 64 kW |
| Rated Short-Time Withstand Current | 9 kA |
| Conditioned Rated Short-Circuit Current | 100 kA |
| Category of Use | AC 23 A |
| Number of Auxiliary Contacts | 3 Change-over Contacts |
| Control Element Type | Rocker Lever |
| Control Element Color | Black |
| Handle Configuration | Right-Hand Side Handle |
| Electrical Connection Type | Screw Connection |
| Degree of Protection (Front) | IP20 |
| Device Construction | Complete Device in Housing |
| Mounting Options | Floor Mounting, Front Mounting 4-Hole, Distribution Board Installation |
| Interlockable | Yes |
| Release Feature | Without Release |
| Compliance Standards | IEC 60947-3 |
| Reference Number | 026616 |
| EAN Code | 3245060266165 |
| Manufacturer | Legrand |
