Shop Legrand DPX-IS 250 Isolating Switch 4P 160A Front Handle | 26606 In Iraq Best Prices
Professional isolating switch with 4-pole, 160A capacity, front handle operation, integrated padlock, and compliant to IEC 60947-3 standards for industrial applications

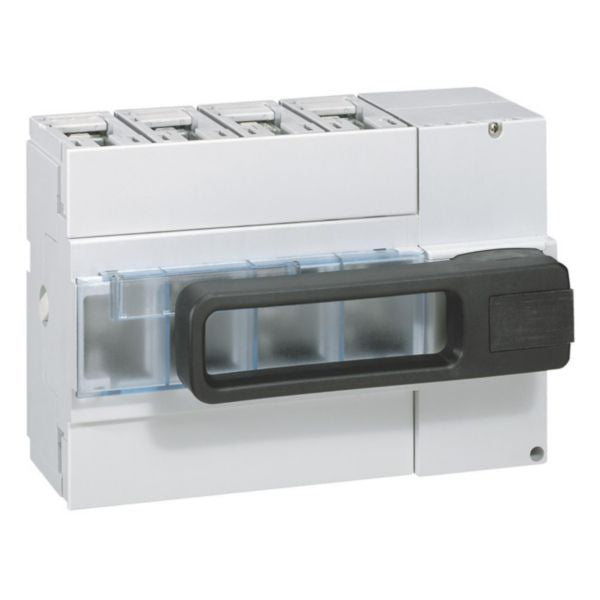

The Legrand DPX-IS 250 is a professional-grade isolating switch designed for on-load circuit breaking with visible isolation and positive action of the contacts. This 4-pole, 160A isolating switch features a front handle operation and is built to conform to IEC 60947-3 standards. The device incorporates an integrated padlock mechanism in the handle for enhanced safety and security during maintenance operations. With a rated maximum voltage of 690V AC and a rated permanent current of 160A, this switch is suitable for use as a main switch, maintenance/service switch, or safety switch in industrial and commercial applications. The switch accepts electrical auxiliaries and can be mounted on rail or plate within XL³ enclosures, making it highly versatile for various installation scenarios.
This isolating switch is equipped with cage terminals for secure electrical connections and supplied with terminal shields for added protection. The device features three auxiliary contacts as change-over contacts, providing flexible control options for complex electrical systems. With a rated short-time withstand current of 9 kA and a conditioned rated short-circuit current of 100 kA, the DPX-IS 250 offers robust protection against electrical faults. The black turn-button control element is interlockable, allowing for coordinated operation with other protective devices. The screw connection type ensures reliable and maintainable electrical connections throughout the device's operational life.
Key Features
- On-load circuit breaking with visible isolation and positive contact action
- Integrated padlock mechanism in handle for enhanced security during maintenance
- 4-pole configuration with 160A rated permanent current capacity
- Maximum rated voltage of 690V AC with flexible operating range 230-690V
- Three auxiliary change-over contacts for flexible control and coordination
- Cage terminals with supplied terminal shields for secure connections
- Rated short-time withstand current of 9 kA with 100 kA short-circuit protection
- Suitable for main switch, maintenance/service, and safety switch applications
- Compatible with XL³ enclosures for rail or plate mounting
- Interlockable black turn-button control element for coordinated operation
Technical Specifications
| Specification |
Value |
| Product Type | Isolating Switch |
| Manufacturer | Legrand |
| Model | DPX-IS 250 |
| Reference Number | 026606 |
| EAN Code | 3245060266066 |
| Number of Poles | 4 |
| Rated Permanent Current (Iu) | 160 A |
| Maximum Rated Voltage (Ue AC) | 690 V |
| Operating Voltage Range | 230-690 V |
| Rated Short-Time Withstand Current (Icw) | 9 kA |
| Conditioned Rated Short-Circuit Current (Iq) | 100 kA |
| Rated Operation Power at AC-23, 400V | 64 kW |
| Auxiliary Contacts (Normally Open) | 0 |
| Auxiliary Contacts (Normally Closed) | 0 |
| Auxiliary Contacts (Change-over) | 3 |
| Control Element Type | Turn Button |
| Control Element Color | Black |
| Electrical Connection Type | Screw Connection |
| Degree of Protection (IP) Front Side | IP20 |
| Device Construction | Complete Device in Housing |
| Suitable for Floor Mounting | Yes |
| Suitable for Front Mounting 4-Hole | Yes |
| Suitable for Distribution Board Installation | Yes |
| Interlockable | Yes |
| Motor Drive Optional | No |
| Motor Drive Integrated | No |
| Voltage Release Optional | No |
| Version as Main Switch | Yes |
| Version as Maintenance/Service Switch | Yes |
| Version as Safety Switch | Yes |
| Version as Emergency Stop Installation | No |
| Version as Reversing Switch | No |
| Compliance Standard | IEC 60947-3 |
| Category of Use | AC 23 A |
| Connection Type | Cage Terminals |
| Padlock Feature | Integrated in Handle |
