Description

Shop Legrand DPX-IS 250 Isolating Switch 4 Poles 63A | 26634 In Iraq Best Prices

Professional 4-pole isolating switch with 63A rated current, visible isolation, and positive contact action for commercial and industrial applications

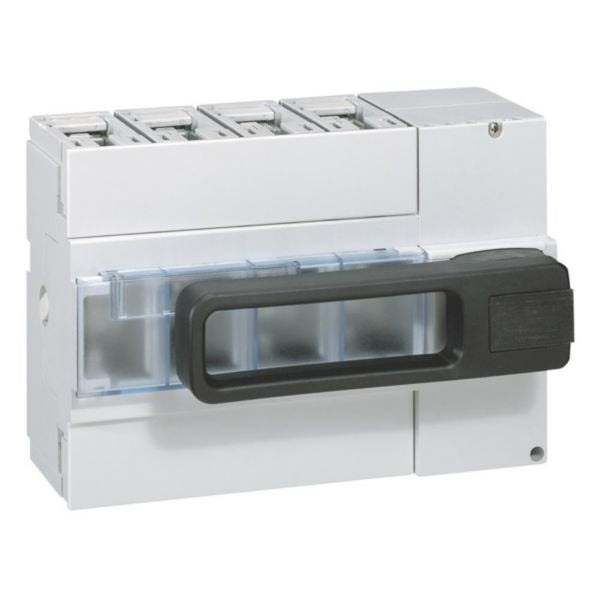

The Legrand DPX-IS 250 is a professional-grade isolating switch designed for on-load circuit breaking with visible isolation and positive contact action. This 4-pole isolating switch features a rated current of 63A and is specifically engineered for commercial and middle power installations according to EN/IEC standard 60947-3, ensuring compliance with NEMA AB-1 requirements. The device offers reliable performance with a rated insulation voltage of 800V and an impressive rated impulse withstand voltage of 8kV, making it suitable for demanding industrial and commercial applications. This isolating switch is equipped with cage terminals supplied with terminal shields for secure and safe connections. The device features a padlock integrated in the handle, providing enhanced security for maintenance and service operations. The DPX-IS 250 can be equipped with an emergency use handle or vari-depth handle options to accommodate different installation requirements and operational preferences. With its turn button control element in black and interlockable design, this switch provides intuitive operation and safety features for various installation scenarios. The DPX-IS 250 is suitable for multiple applications including main switch installations, maintenance and service switch operations, safety switch configurations, and emergency stop installations. It can be mounted on DIN rail or on plate within XL³ or XL³ S enclosures, offering flexible installation options. The device maintains performance under challenging climatic conditions according to IEC/EN 60947-1 Annex Q Category F specifications, including temperature, humidity, vibration, shock, and salt mist exposure.

Key Features

On-load circuit breaking with visible isolation and positive contact action
4-pole configuration with 63A rated current and 690V maximum rated operation voltage
Compliant with EN/IEC standard 60947-3 and NEMA AB-1 requirements
Integrated padlock in handle for enhanced security during maintenance operations
Flexible mounting options on DIN rail or XL³/XL³ S enclosures with emergency use handle capability
Cage terminals with terminal shields for secure connections
Rated impulse withstand voltage of 8kV and short-time withstand current of 9kA
Interlockable design with black turn button control element
Multiple application versions: main switch, maintenance switch, safety switch, emergency stop
Operates reliably under challenging climatic conditions including temperature, humidity, vibration, shock, and salt mist

Technical Specifications

Specification	Value
Product Model	DPX-IS 250
Manufacturer	Legrand
Reference Number	026634
EAN Code	3245060266349
Number of Poles	4 poles
Rated Permanent Current (Iu)	63 A
Rated Operating Voltage (Min-Max)	230-690 V AC
Maximum Rated Operation Voltage	690 V
Rated Insulation Voltage	800 V
Rated Impulse Withstand Voltage	8 kV
Rated Short-time Withstand Current	9 kA
Conditioned Rated Short-circuit Current	100 kA
Rated Operating Power (AC-23, 400V)	25.2 kW
Category of Use	AC23
Control Element Type	Turn button
Control Element Color	Black
Electrical Connection Type	Screw connection with cage terminals
Degree of Protection (Front)	IP20
Auxiliary Contacts - Normally Open	0
Auxiliary Contacts - Normally Closed	0
Auxiliary Contacts - Change-over	3
Motor Drive	Not included (optional)
Voltage Release	Optional
Device Construction	Complete device in housing
Mounting Options	DIN rail or plate mounting in XL³/XL³ S enclosures
Floor Mounting Compatible	Yes
Front Mounting 4-hole Compatible	Yes
Distribution Board Installation Compatible	Yes
Interlockable	Yes
Handle Type	Front handle with integrated padlock
Additional Handle Options	Emergency use handle or vari-depth handle
Terminal Shields	Supplied with terminal shields
Standards Compliance	EN/IEC 60947-3, NEMA AB-1
Climatic Condition Category	IEC/EN 60947-1 Annex Q, Category F
Application as Main Switch	Yes
Application as Maintenance Switch	Yes
Application as Safety Switch	Yes
Application as Emergency Stop	Yes

Order Legrand DPX-IS 250 Isolating Switch 4 Poles 63A | 26634 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
