Shop Legrand DPX-IS 250 Isolating Switch 3P 160A Right Handle | 26612 In Iraq Best Prices

Professional isolating switch with 160A capacity, 690V rating, visible isolation mechanism, integrated padlock safety feature, and full compliance with IEC 60947-3 industrial standards for reliable circuit breaking.

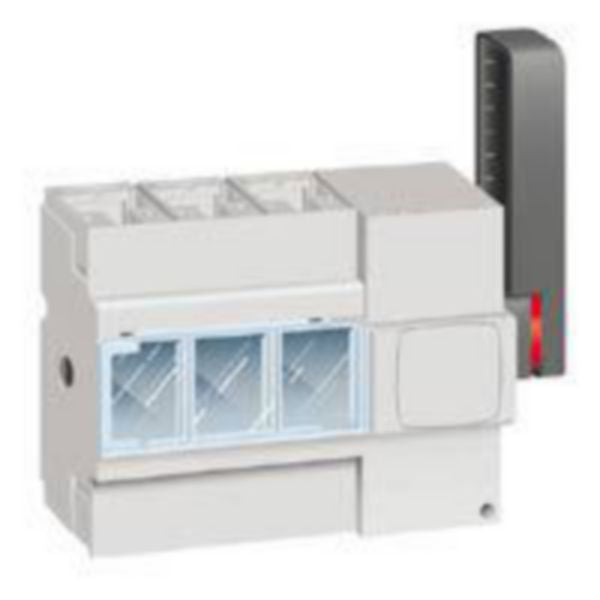

The Legrand DPX-IS 250 is a professional-grade isolating switch designed for industrial and commercial applications requiring reliable on-load circuit breaking with visible isolation. This three-pole switch features a rated permanent current of 160A at 400V and operates at voltages up to 690V AC, making it suitable for demanding electrical distribution systems. The switch incorporates a visible isolation mechanism with positive contact action, ensuring safe and reliable operation in accordance with IEC 60947-3 standards. This isolating switch is equipped with an integrated padlock in the handle for enhanced safety during maintenance operations, preventing unauthorized reconnection. The right-hand side rocker lever control element provides intuitive operation, while the screw connection terminals with integrated shields ensure secure and reliable electrical connections. The device supports multiple operational modes including main switch, maintenance/service switch, and safety switch applications, with a rated short-time withstand current of 9kA and a conditioned short-circuit current rating of 100kA. The DPX-IS 250 accepts three auxiliary change-over contacts for integration with control systems and can be mounted on rails or plates within XL³ enclosures. Its IP20 front protection rating and compliance with AC-23 category of use make it ideal for motor control applications. The switch is suitable for floor mounting, front mounting with 4-hole configuration, and distribution board installation, offering flexible deployment options for various industrial electrical configurations.

Key Features

On-load circuit breaking with visible isolation and positive contact action for safe operation
Integrated padlock in handle for enhanced safety during maintenance and service operations
Three-pole configuration with 160A rated permanent current at 400V and up to 690V AC operation
Accepts three auxiliary change-over contacts for integration with control and signaling systems
Multiple mounting options including rail, plate, floor, and 4-hole front mounting configurations
Rated short-time withstand current of 9kA and conditioned short-circuit current of 100kA
Screw connection terminals with integrated shields for secure electrical connections
IP20 front protection rating suitable for industrial electrical enclosures
Compliant with IEC 60947-3 and AC-23 category of use for motor control applications
Suitable for use as main switch, maintenance switch, and safety switch

Technical Specifications

Specification	Value
Product Type	Isolating Switch - DPX-IS 250 Series
Manufacturer	Legrand
Reference Number	026612
EAN Code	3245060266127
Number of Poles	3 Poles
Rated Permanent Current (Iu)	160 A
Maximum Rated Operating Voltage (Ue AC)	690 V
Rated Operating Voltage Range	230-690 V AC
Rated Permanent Current at AC-21, 400V	160 A
Rated Short-Time Withstand Current (Icw)	9 kA
Rated Operation Power at AC-23, 400V	64 kW
Conditioned Rated Short-Circuit Current (Iq)	100 kA
Auxiliary Contacts - Normally Closed	0
Auxiliary Contacts - Normally Open	0
Auxiliary Contacts - Change-Over	3
Control Element Type	Rocker Lever
Control Element Color	Black
Handle Orientation	Right-Hand Side
Electrical Connection Type	Screw Connection with Terminal Shields
Degree of Protection (IP) - Front Side	IP20
Device Construction	Complete Device in Housing
Version as Main Switch	Yes
Version as Maintenance/Service Switch	Yes
Version as Safety Switch	Yes
Version as Emergency Stop Installation	No
Version as Reversing Switch	No
Motor Drive Optional	No
Motor Drive Integrated	No
Voltage Release Optional	No
Interlockable	Yes
Suitable for Floor Mounting	Yes
Suitable for Front Mounting 4-Hole	Yes
Suitable for Front Mounting Centre	No
Suitable for Distribution Board Installation	Yes
Suitable for Intermediate Mounting	No
Category of Use	AC 23 A
Standards Compliance	IEC 60947-3
Safety Features	Integrated Padlock in Handle, Visible Isolation, Positive Contact Action
Enclosure Compatibility	XL³ Enclosures

Order Legrand DPX-IS 250 Isolating Switch 3P 160A Right Handle | 26612 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
