Shop Legrand DPX-IS 1600 Isolating Switch 4P 800A Front Handle | 26595 In Iraq Best Prices
Professional 4-pole isolating switch with 800A capacity, front handle control, integrated padlock, and advanced safety features for industrial power distribution and motor control applications.

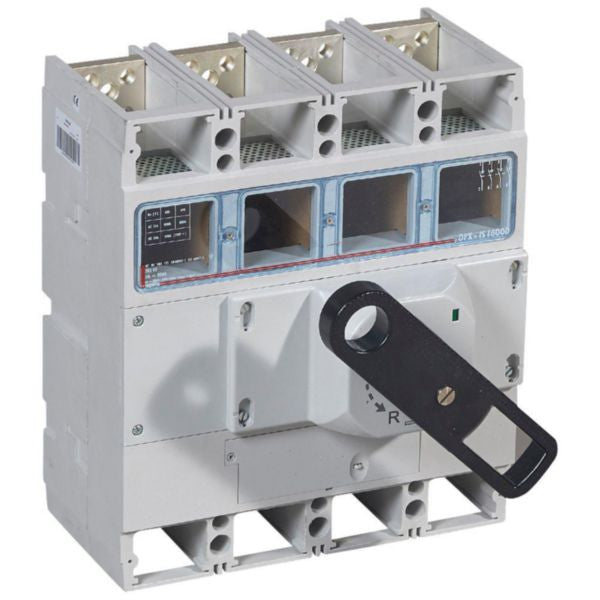

The Legrand DPX-IS 1600 is a professional-grade isolating switch designed for on-load circuit breaking with visible isolation and positive action contact operation. This 4-pole switch delivers a rated permanent current of 800A at 400V with a maximum operating voltage of 690V AC. The device features an integrated padlock mechanism within the handle for enhanced security and safety compliance. Built to IEC 60947-3 standards, it serves as a main switch, maintenance/service switch, safety switch, and emergency stop installation switch, making it versatile for diverse industrial and commercial applications.
The DPX-IS 1600 incorporates cage terminal connections for secure and reliable electrical connections. It includes four auxiliary contacts configured as change-over contacts, allowing for flexible control circuit integration. The switch is equipped with terminal shields for protection and can accept electrical auxiliaries. With a rated short-time withstand current of 20 kA and a conditioned rated short-circuit current of 100 kA, this device provides robust protection in demanding electrical environments. The front-mounted turn button control with black color coding ensures easy operation and clear identification.
This isolating switch is suitable for floor mounting, front mounting with 4-hole configuration, and distribution board installation. Its IP20 protection rating on the front side ensures adequate protection for indoor industrial environments. The device is compatible with residual current relays with separate coils and can be supplied without shunt release. Fully compliant with AC-23A category of use requirements, the DPX-IS 1600 represents a reliable solution for industrial power distribution and motor control applications.
Key Features
- On-load circuit breaking with visible isolation and positive contact action
- 4-pole configuration rated at 800A with maximum operating voltage of 690V AC
- Integrated padlock mechanism in handle for enhanced security
- Four auxiliary change-over contacts for flexible control circuit integration
- Compliant with IEC 60947-3 standards and AC-23A category of use
- Cage terminal connections for secure and reliable electrical connections
- Rated short-time withstand current of 20 kA and short-circuit current of 100 kA
- Suitable for main switch, maintenance switch, safety switch, and emergency stop applications
- Multiple mounting options: floor, front 4-hole, and distribution board installation
- IP20 protection rating for indoor industrial environments
Technical Specifications
| Specification |
Value |
| Product Type | Isolating Switch with Release |
| Reference Number | 026595 |
| EAN Code | 3245060265953 |
| Number of Poles | 4 poles |
| Rated Permanent Current (Iu) | 800 A |
| Rated Operating Voltage (AC) | 690 V maximum |
| Rated Operating Voltage Range | 230-690 V |
| Rated Permanent Current at AC-21 400V | 800 A |
| Rated Short-time Withstand Current | 20 kA |
| Rated Operation Power at AC-23 400V | 320 kW |
| Conditioned Rated Short-circuit Current | 100 kA |
| Auxiliary Contacts (Normally Closed) | 0 |
| Auxiliary Contacts (Normally Open) | 0 |
| Auxiliary Contacts (Change-over) | 4 |
| Motor Drive | Optional |
| Voltage Release | Optional |
| Device Construction | Complete device in housing |
| Control Element Type | Turn button |
| Control Element Color | Black |
| Main Circuit Connection Type | Screw connection with cage terminals |
| Degree of Protection (IP Front) | IP20 |
| Mounting Options | Floor mounting, front mounting 4-hole, distribution board installation |
| Interlockable | Yes |
| Standards Compliance | IEC 60947-3, AC-23A category of use |
| Handle Type | Front handle with integrated padlock |
| Application Category | Main switch, maintenance switch, safety switch, emergency stop |
