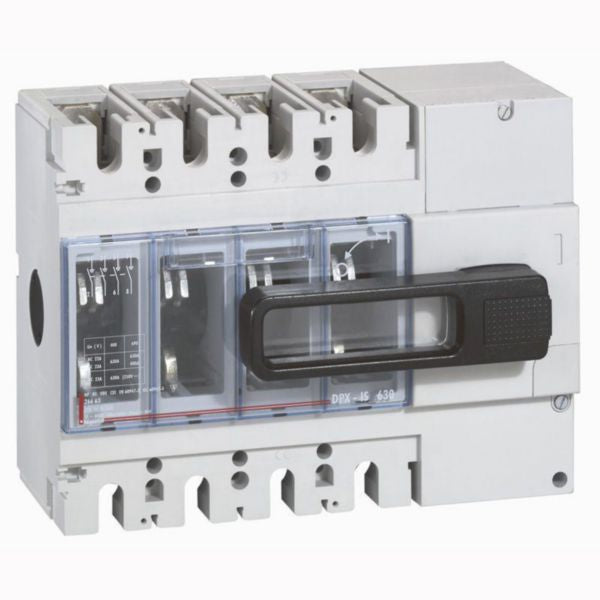

Shop Legrand DPX³ 630 Isolating Switch 4 Poles 630A Front Handle | 26675 In Iraq Best Prices

Professional isolating switch for commercial and industrial installations with 630A rated current, 4 poles, visible isolation, and positive contact action. Compliant with EN/IEC 60947-3 and NEMA AB-1 standards.

The Legrand DPX³ 630 is a professional-grade isolating switch designed for on-load circuit breaking with visible isolation and positive contact action. This four-pole switch is engineered specifically for commercial and medium-power installations, meeting the stringent requirements of EN/IEC standard 60947-3 and NEMA AB-1 compliance. With a rated current capacity of 630A and maximum operating voltage of 690V, this switch provides reliable performance for demanding industrial and commercial applications. This isolating switch features advanced safety and operational characteristics including a rated insulation voltage of 800V and an impressive rated impulse withstand voltage of 8kV. The device is equipped with cage terminals and supplied with integrated terminal shields for enhanced safety and secure connections. The front-mounted handle design ensures easy accessibility and operation, while the integrated padlock feature provides additional security for maintenance and emergency situations. The switch can be equipped with optional emergency use handles or vari-depth handles to accommodate different installation requirements. The DPX³ 630 is suitable for multiple applications including main switch installations, maintenance and service switch configurations, safety switch applications, and emergency stop installations. It features four auxiliary contacts with change-over functionality, providing flexible integration into complex electrical systems. The switch is rated for AC-23 category use with a rated operation power of 252 kW at 400V, and can handle a conditioned rated short-circuit current of 100 kA. Its robust construction, IP20 degree of protection on the front side, and compatibility with XL³ and XL³ S enclosures make it an ideal choice for modern electrical distribution systems.

Key Features

On-load circuit breaking with visible isolation and positive contact action
Four poles with 630A rated current capacity and 690V maximum operating voltage
Compliant with EN/IEC 60947-3 and NEMA AB-1 standards for commercial and medium-power installations
Rated insulation voltage of 800V with 8kV impulse withstand voltage for enhanced protection
Integrated padlock in handle with optional emergency use and vari-depth handle configurations
Four auxiliary contacts with change-over functionality for flexible system integration
Cage terminals with integrated terminal shields for secure and safe connections
Suitable for main switch, maintenance switch, safety switch, and emergency stop applications
IP20 degree of protection with front-mounted handle for easy accessibility
Compatible with XL³ and XL³ S enclosures for plate mounting installations

Technical Specifications

Specification	Value
Product Model	DPX³ 630
Manufacturer	Legrand
Reference Number	026675
EAN Code	3245060266752
Number of Poles	4 poles
Rated Permanent Current (Iu)	630 A
Rated Operating Voltage (Ue AC)	690 V
Operating Voltage Range	230-690 V
Rated Insulation Voltage	800 V
Rated Impulse Withstand Voltage	8 kV
Rated Operation Power at AC-23, 400V	252 kW
Rated Short-time Withstand Current (Icw)	15 kA
Conditioned Rated Short-circuit Current (Iq)	100 kA
Category of Use	AC-23 (On-load circuit breaking)
Connection Type	Cage terminals with terminal shields
Electrical Connection	Screw connection
Control Element Type	Turn button
Control Element Color	Black
Degree of Protection (IP)	IP20 (front side)
Device Construction	Complete device in housing
Auxiliary Contacts (Change-over)	4 contacts
Auxiliary Contacts (Normally Open)	0 contacts
Auxiliary Contacts (Normally Closed)	0 contacts
Interlockable	Yes
Motor Drive	Optional (not integrated)
Voltage Release	Optional
Suitable for Floor Mounting	Yes
Suitable for Front Mounting (4-hole)	Yes
Suitable for Distribution Board Installation	Yes
Compatible Enclosures	XL³ and XL³ S enclosures
Standards Compliance	EN/IEC 60947-3, NEMA AB-1
Application Versions	Main switch, maintenance/service switch, safety switch, emergency stop installation
Handle Options	Front handle, optional emergency use handle, optional vari-depth handle
Safety Features	Integrated padlock in handle, visible isolation, positive contact action

Order Legrand DPX³ 630 Isolating Switch 4 Poles 630A Front Handle | 26675 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
