Description

Shop Legrand Domestic Fuse Carrier 250V 1P+N Miniature Cylindrical | 5802 In Iraq Best Prices

Legrand domestic fuse carrier for 5x20mm miniature cylindrical cartridge fuses, 250V AC, 1P+N configuration with Class II insulation, DIN rail mounting, padlockable design, and IP20 protection for sensitive equipment.

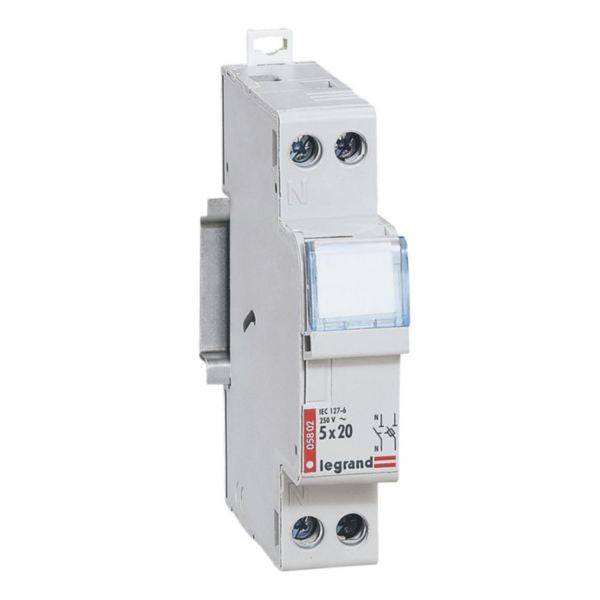

The Legrand Domestic Fuse Carrier (REF. 005802) is a high-quality electrical protection device designed for miniature cylindrical cartridge fuses with dimensions of 5 x 20 mm. This fuse holder is specifically engineered to protect sensitive equipment such as transformers and electronic devices from electrical overloads and short circuits. Conforming to international standards EN 60127-6 and IEC 60127-6, this single-pole plus neutral carrier operates at 250V AC voltage and features a DIN rail mounting method for easy installation in electrical panels and distribution boards. The fuse carrier incorporates advanced safety features including an insulated carrier design (Class II protection), padlockable functionality for enhanced security, and shielded terminals capable of accommodating conductors up to 2 x 10 mm² in cross-section. The device features a label area for clear identification and includes the possibility to add an optical defect indication system to signal when a fuse has blown. With an IP20 degree of protection and RAL 7035 color specification, this fuse holder ensures reliable performance in various electrical installations. This domestic fuse carrier is an essential component for residential and small commercial electrical systems, providing reliable protection for sensitive electronic equipment and transformers. Its compact single-module design (1 module) makes it suitable for space-constrained applications while maintaining full compliance with European electrical safety standards. The product is supplied without fuses, allowing customers to select appropriate fuse ratings for their specific application requirements.

Key Features

Complies with international standards EN 60127-6 and IEC 60127-6 for miniature cylindrical fuses
Class II insulated carrier design with padlockable functionality for enhanced security
Shielded terminals accommodate conductors up to 2 x 10 mm² cross-section
Optical defect indication capability to signal blown fuses
DIN rail mounting method for easy installation in electrical panels
Single-pole plus neutral (1P+N) configuration for comprehensive protection
IP20 degree of protection with RAL 7035 color specification
Suitable for protecting sensitive equipment including transformers and electronic devices
Label area for clear identification and organization
Compact single-module design for space-constrained applications

Technical Specifications

Specification	Value
Product Reference	005802
EAN Code	3245060058029
Nominal Voltage	250 V AC
Number of Poles	1 Pole + Neutral (1P+N)
Fuse Size	Miniature Cylindrical Cartridge 5 x 20 mm
Mounting Method	DIN Rail
Terminal Capacity	2 x 10 mm² (Shielded)
Insulation Class	Class II
Degree of Protection	IP20
RAL Color Number	7035
Lockable Feature	Yes
Optical Defect Indication	Optional
Number of Modules	1
Neutral Conductor Switching	Yes (Concurrently switching)
Standards Compliance	EN 60127-6, IEC 60127-6
Application	Domestic and Small Commercial
Fuse Supply	Not Included
Equipment Protection	Transformers, Electronic Equipment, Sensitive Devices

Order Legrand Domestic Fuse Carrier 250V 1P+N Miniature Cylindrical | 5802 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
