Shop Legrand CTX³ 3-Pole Motor Contactor 85A 415V AC | 416219 In Iraq Best Prices
Professional-grade 85A motor contactor with 45kW switching capacity, 2NO+2NC auxiliary contacts, 12M mechanical operations endurance, and modular design for industrial motor control applications.

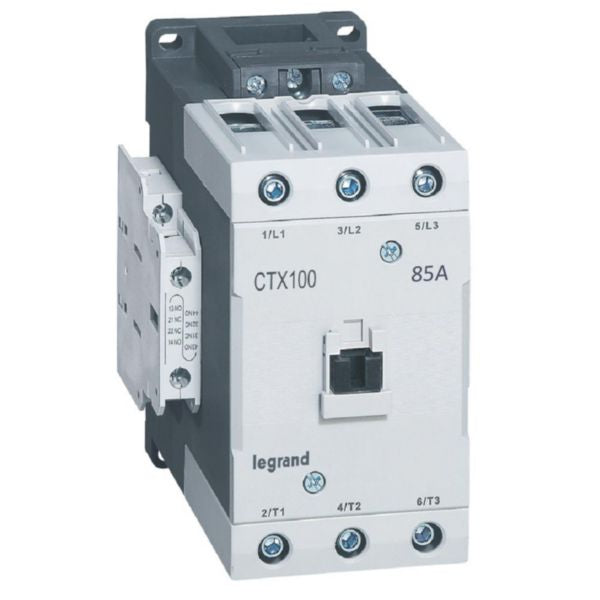

The Legrand CTX³ motor contactor is a high-performance industrial switching device designed for reliable control of three-phase motors and resistive loads. With a rated switching capacity of 85A AC-3 for motors up to 45 kW at 415V, and 135A AC-1 for resistive loads, this contactor delivers exceptional performance in demanding industrial and tertiary applications. The device features 2NO+2NC auxiliary contacts that meet IEC 60947-4-1 standards, allowing for advanced control and monitoring capabilities.
Constructed with robust cage terminals supporting power connections from 2.5mm² to 70mm² (single conductor) and 2.5mm² to 50mm² (dual conductors), the CTX³ contactor ensures secure and reliable electrical connections. The modular design enables easy replacement of coils and integration with Legrand's comprehensive range of auxiliaries and accessories. With an impressive endurance rating of up to 12 million mechanical operations and 2 million electrical operations, this contactor is built to withstand the rigors of continuous industrial use.
The CTX³ contactor features a compact footprint optimized for cabinet space efficiency, with mounting options for both 35mm DIN rail (IEC 60715) and mounting plates. The removable front cover allows for visual inspection of arc chambers and contacts, facilitating maintenance and troubleshooting. Engineered for environmental consciousness, this product complies with substance-restriction requirements and represents Legrand's commitment to sustainable industrial solutions.
Key Features
- 85A AC-3 rated switching for 3-phase motors up to 45 kW at 415V
- 135A AC-1 switching capacity for resistive loads
- 2NO+2NC auxiliary contacts meeting IEC 60947-4-1 standards
- 12 million mechanical and 2 million electrical operations endurance
- Modular design with easily replaceable coils and comprehensive accessory compatibility
- Compact cabinet-optimized design with 35mm DIN rail mounting capability
- Cage terminals supporting 2.5mm² to 70mm² power connections
- Removable front cover for arc chamber and contact inspection
- Environmentally conscious design compliant with substance-restriction requirements
- Flexible coil supply positioning on top or bottom side
Technical Specifications
| Specification |
Value |
| Product Type | 3-Pole Motor Contactor |
| Rated Switching Capacity AC-3 | 85A at 400V, 45kW |
| Rated Switching Capacity AC-1 | 135A at 400V |
| Rated Switching Capacity AC-4 | 62A at 400V, 30kW |
| Control Supply Voltage AC 50Hz | 352.75-456.5V |
| Control Supply Voltage AC 60Hz | 352.75-456.5V |
| Voltage Type | AC |
| Main Contact Configuration | 3 Normally Open (NO) |
| Auxiliary Contacts | 2NO + 2NC (Mirror contact compliant) |
| Main Circuit Connection Type | Screw/Lug Terminals |
| Power Terminal Capacity | Single: 2.5mm² to 70mm², Dual: 2.5mm² to 50mm² |
| Coil Terminal Capacity | 0.75mm² to 2.5mm² |
| Auxiliary Circuit Terminal Capacity | 0.75mm² to 2.5mm² |
| Mechanical Operations Endurance | 12 million cycles |
| Electrical Operations Endurance | 2 million cycles |
| Maximum Operation Cycles per Hour (AC-3) | 1800 cycles |
| Mounting Method | 35mm DIN Rail (IEC 60715) or Mounting Plate |
| Design Standard | IEC 60947-4-1 Compliant |
| Suitable for Distribution Board | Yes |
| Product Reference | REF. 416219 |
| EAN Code | 3414970402226 |
| Coil Supply Options | Top or Bottom side mounting |
| Front Cover | Removable for inspection |
| Environmental Compliance | RoHS Compliant, REACH Declaration compliant |
| Carbon Footprint (Manufacturing) | 14.250 kg CO₂ eq. |
Order Legrand CTX³ 3-Pole Motor Contactor 85A 415V AC | 416219 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
