Shop Legrand CTX3 Motor Contactor 500A 3P Power Control | 416336 In Iraq Best Prices
High-performance 500A 3-phase motor contactor with 265kW switching capacity, 2NO+2NC auxiliary contacts, removable front cover for inspection, and environmentally conscious design for demanding industrial applications.

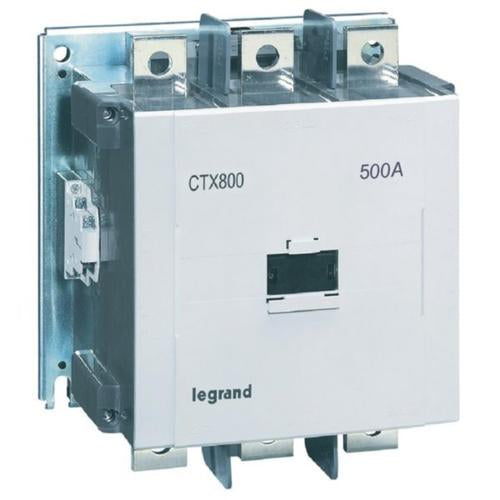

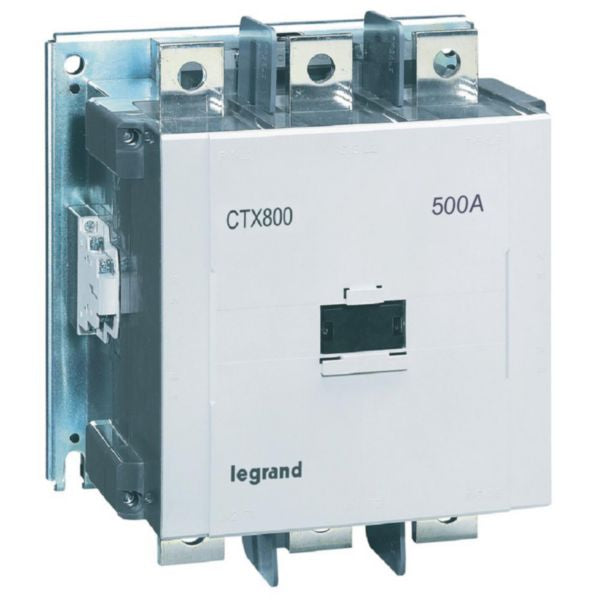

The Legrand CTX³ power contactor is a high-performance industrial switching device specifically engineered for demanding motor control and circuit protection applications. With a robust 500A (AC-3) rating capable of switching 3-phase motors up to 265kW at 415V, and an impressive 580A (AC-1) rating for resistive loads, this contactor delivers exceptional reliability and performance. The device features 2NO+2NC mirror auxiliary contacts that comply with IEC 60947-4-1 standards, ensuring safe and predictable operation in critical applications.
Designed for tertiary and industrial installations, the CTX³ contactor offers exceptional endurance with up to 2 million mechanical operations and 0.5 million electrical operations, supporting up to 1200 operation cycles per hour under AC-3 conditions. The removable front cover provides easy visual inspection of arc chambers and contacts, while the engineered coil design allows for straightforward replacement when needed. Screw terminal connections accommodate power cables from 2x185 to 240mm² and auxiliary circuits from 1.25mm² to 5.5mm², providing flexible installation options for diverse industrial requirements.
The contactor is fully compatible with all Legrand CTX3 auxiliaries and accessories, making it an ideal choice for comprehensive motor control solutions. Engineered with environmental consciousness and designed to comply with substance-restriction requirements, the CTX³ represents a sustainable yet powerful solution for modern industrial electrical systems. Its dual voltage capability (200V-240V AC / 200V-220V DC) ensures compatibility with various power supply configurations commonly found in industrial facilities.
Key Features
- 500A (AC-3) rated capacity for 3-phase motor switching up to 265kW at 415V
- 580A (AC-1) rating for resistive loads with exceptional performance
- 2NO+2NC mirror auxiliary contacts compliant with IEC 60947-4-1 standards
- Removable front cover enabling easy visual inspection of arc chambers and contacts
- Up to 2 million mechanical operations and 0.5 million electrical operations for extended service life
- 1200 operation cycles per hour maximum under AC-3 conditions
- Engineered coil design for straightforward replacement and maintenance
- Screw terminal connections: Power 2x185-240mm², Coil 1.25-5.5mm², Auxiliary 1.25-5.5mm²
- Dual voltage capability: 200V-240V AC / 200V-220V DC
- Full compatibility with all Legrand CTX3 auxiliaries and accessories
- Environmentally conscious design with substance-restriction compliance
- Suitable for tertiary and industrial installations
Technical Specifications
| Specification |
Value |
| Product Type | 3-Phase Motor Power Contactor |
| Rated Capacity AC-3 | 500A at 400V / 265kW at 415V |
| Rated Capacity AC-1 | 580A at 400V |
| Rated Capacity AC-4 | 350A at 400V / 176kW at 415V |
| Control Supply Voltage AC | 200V-240V AC (50Hz/60Hz) |
| Control Supply Voltage DC | 200V-220V DC |
| Main Contacts Configuration | 3 Normally Open (NO) contacts |
| Auxiliary Contacts | 2NO + 2NC mirror contacts (IEC 60947-4-1 compliant) |
| Power Terminal Capacity | 2 x 185 to 240mm² |
| Coil Terminal Capacity | 1.25mm² to 5.5mm² |
| Auxiliary Circuit Terminal Capacity | 1.25mm² to 5.5mm² |
| Connection Type | Screw terminals |
| Mechanical Endurance | Up to 2 million operations |
| Electrical Endurance | 0.5 million operations (AC-3) |
| Maximum Operation Cycles | 1200 cycles per hour (AC-3) |
| Front Cover | Removable for inspection |
| Coil Design | Engineered for easy replacement |
| Installation Type | Mounting plate fixing |
| Suitable for Distribution Board | No |
| Environmental Compliance | RoHS compliant, substance-restriction requirements met |
| Carbon Footprint (Manufacturing) | 194.75 kg CO₂ eq. |
| Reference Number | 416336 |
| EAN Code | 3414970403582 |
| Brand | Legrand |
| Series | CTX³ |
