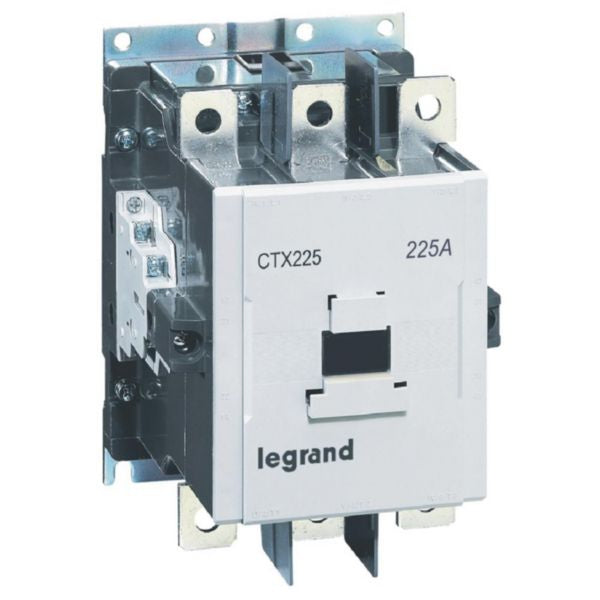

| Product Model | CTX3 Power Contactor |
| Reference Number | 416296 |
| EAN Code | 3414970403506 |
| Rated Current (AC-3 at 400V) | 225A |
| Rated Current (AC-1 at 400V) | 275A |
| Rated Current (AC-4 at 400V) | 180A |
| Rated Power (AC-3 at 400V) | 132kW |
| Rated Power (AC-4 at 400V) | 90kW |
| Motor Phase | 3-Phase |
| Coil Voltage AC 50Hz (Min-Max) | 85-264V |
| Coil Voltage AC 60Hz (Min-Max) | 85-264V |
| Coil Voltage DC (Min-Max) | 85-242V |
| Voltage Type | AC/DC |
| Main Contacts Configuration | 3 Normally Open (NO) |
| Auxiliary Contacts | 2NO + 2NC (Mirror Contacts) |
| Power Terminal Connection Type | Screw Connection |
| Power Cable Capacity | 50mm² to 150mm² |
| Coil Terminal Capacity | 1.25mm² to 5.5mm² |
| Auxiliary Circuit Capacity | 1.25mm² to 5.5mm² |
| Mechanical Operations Endurance | Up to 5 million cycles |
| Electrical Operations Endurance | 1 million cycles |
| Operation Cycles Per Hour (AC-3) | 1200 cycles/hour |
| Installation Type | Mounting on mounting plate |
| Front Cover | Removable for inspection |
| Coil Design | Easy replacement |
| Compatible Accessories | All Legrand CTX3 auxiliaries and accessories |
| Suitable for Distribution Board | No |
| Environmental Compliance | RoHS compliant, REACH declaration available |
| Carbon Footprint (Manufacturing) | 47.5 kg CO2 eq. |
| Application | Tertiary and industrial installations |
