Description

Shop Legrand CTX3 Mini 3P 9A 1NC 24V DC Motor Contactor | 417031 In Iraq Best Prices

Compact 3P 9A motor contactor with 24V DC coil, 1NC auxiliary contact, reduced size design for panel optimization, 12 million mechanical operations endurance, suitable for 4kW motors and 20A resistive loads

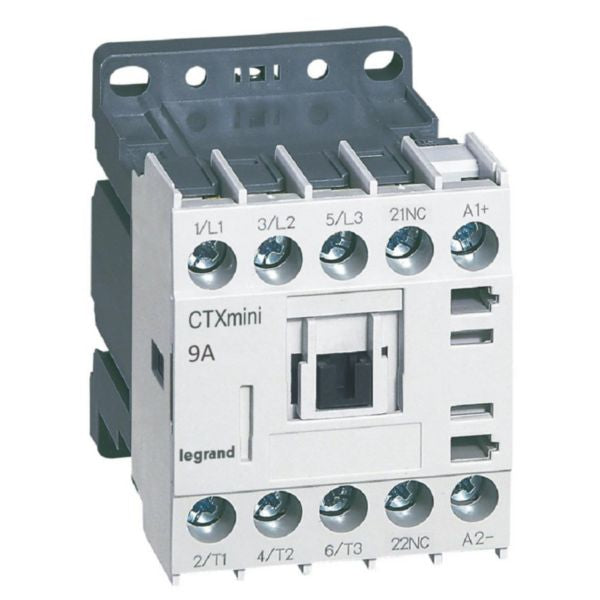

The Legrand CTX³ mini power contactor is a compact switching device specifically designed for industrial and tertiary installations. This contactor is engineered to switch 3-phase motors up to 4kW (AC-3 9A) and resistive loads up to 20A (AC-1). With its reduced size, it optimizes space utilization in electrical panels and cabinets, making it ideal for modern installation requirements. Equipped with a 24V DC coil and 1 NC mirror auxiliary contact, this contactor provides reliable performance with exceptional endurance capabilities. It can withstand up to 12 million mechanical operations and 1 million electrical operations, with a maximum operation cycle rate of 1800 cycles per hour under AC-3 conditions. The screw terminals accommodate power cables from 1.25mm² to 2mm², coil connections from 0.75mm² to 2.5mm², and auxiliary circuit connections from 0.75mm² to 2.5mm². The CTX³ mini contactor is designed for both inductive and non-inductive load switching and can be fixed on 35mm 'top hat' mounting rails (IEC 60715) or mounting plates. It is fully compatible with all Legrand CTX3 mini auxiliaries and accessories, and complies with substance-restriction requirements and environmentally conscious manufacturing standards. This product is certified for use in distribution boards and represents a superior choice for reliable motor control and protection in industrial applications.

Key Features

Compact reduced size design optimizes cabinet and panel space utilization
Rated for 9A AC-3 switching of 3-phase motors up to 4kW at 415V
24V DC coil with 1NC mirror auxiliary contact meeting IEC 60947-4-1 standard
Exceptional endurance: 12 million mechanical operations and 1 million electrical operations
Compatible with all Legrand CTX3 mini auxiliaries and accessories for flexible configuration

Technical Specifications

Specification	Value
Product Model	CTX³ Mini Power Contactor
Reference Number	417031
EAN Code	3414970404138
Rated Control Supply Voltage	24V DC (20.4-26.4V range)
Voltage Type	DC (Direct Current)
Rated Operation Current AC-3 at 400V	9A
Rated Operation Current AC-1 at 400V	20A
Rated Operation Power AC-3 at 400V	4kW
Main Contacts Configuration	3 Normally Open (NO) contacts, 0 Normally Closed (NC) contacts
Auxiliary Contacts	1 Normally Closed (NC) mirror contact
Power Terminal Capacity	1.25mm² to 2mm²
Coil Terminal Capacity	0.75mm² to 2.5mm²
Auxiliary Circuit Terminal Capacity	0.75mm² to 2.5mm²
Electrical Connection Type	Screw Terminals (Cable Clamp)
Mechanical Endurance	Up to 12 million mechanical operations
Electrical Endurance	1 million electrical operations
Operation Cycles per Hour	1800 cycles (AC-3)
Mounting Method	35mm 'top hat' mounting rail (IEC 60715) or mounting plate
Suitable for Distribution Board	Yes
Load Type Compatibility	Inductive and non-inductive loads
Compliance Standards	IEC 60947-4-1, IEC 60715, RoHS Directive, REACH Declaration
Environmental Certification	Complies with substance-restriction requirements and environmentally conscious manufacturing

Order Legrand CTX3 Mini 3P 9A 1NC 24V DC Motor Contactor | 417031 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
