Shop Legrand CTX3 Mini 3P 12A 1NO 24V DC Motor Contactor | 417041 In Iraq Best Prices
Compact 3-phase motor contactor with 12A AC-3 rating, 1NO auxiliary contact, 24V DC control, high endurance up to 12 million mechanical cycles, ideal for industrial panels and motor control applications.

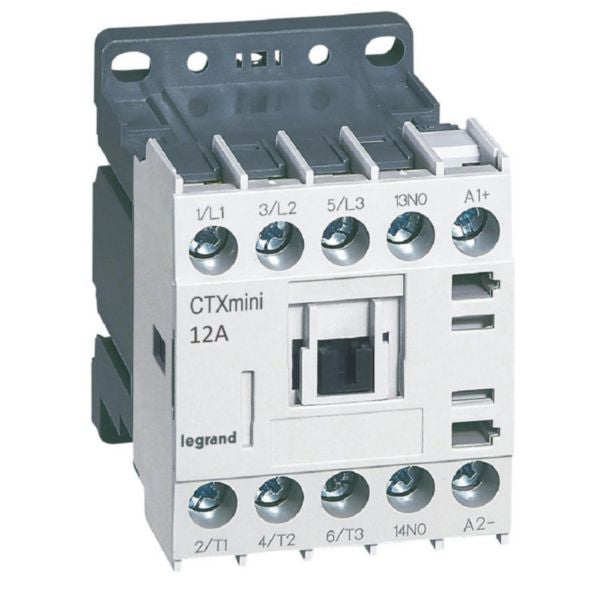

The Legrand CTX³ mini power contactor is a compact industrial switching device specifically engineered for three-phase motor control and resistive load management. With a reduced size design, this contactor switches 3-phase motors up to 5.5kW at AC-3 rating with 12A capacity, and resistive loads up to 20A at AC-1 rating. The device features one normally open (1NO) auxiliary contact, making it ideal for integration into control and distribution panels where space optimization is critical. Built with high endurance capabilities, the CTX³ mini delivers up to 12 million mechanical operations and 1 million electrical operations, ensuring long-term reliability in demanding industrial and tertiary applications.
This contactor utilizes screw terminals with flexible capacity options: power terminals accept 1.25mm² to 2mm² conductors, while coil and auxiliary circuit terminals accommodate 0.75mm² to 2.5mm² conductors. The device operates at a rated control supply voltage of 24V DC (20.4-26.4V range), with an operational cycle rate of 1800 cycles per hour under AC-3 conditions. The CTX³ mini is fully compatible with all Legrand CTX3 mini auxiliary components and accessories, providing flexible configuration options for various installation requirements.
Designed with environmental consciousness and compliance with substance-restriction requirements, this motor contactor meets modern regulatory standards including RoHS and REACH declarations. The fixed mounting on 35mm top-hat mounting rails (IEC 60715) and mounting plates makes installation straightforward in both new and retrofit applications. Its robust construction and proven reliability make it an excellent choice for tertiary and industrial installations requiring dependable motor switching and load control.
Key Features
- Compact reduced-size design optimizes cabinet space utilization
- Switches 3-phase motors up to 5.5kW at AC-3 rating with 12A capacity
- Handles resistive loads up to 20A at AC-1 rating
- One normally open (1NO) auxiliary contact for control circuit integration
- High endurance: 12 million mechanical operations and 1 million electrical operations
- 1800 operation cycles per hour under AC-3 conditions
- 24V DC control voltage with 20.4-26.4V operating range
- Flexible screw terminal capacity for power, coil, and auxiliary circuits
- Compatible with all Legrand CTX3 mini accessories and auxiliaries
- Mounts on 35mm top-hat rails (IEC 60715) and mounting plates
- RoHS and REACH compliant for environmental responsibility
- Ideal for tertiary and industrial installations
Technical Specifications
| Specification |
Value |
| Product Type | 3-Phase Motor Contactor |
| Model | CTX³ mini |
| Manufacturer | Legrand |
| SKU/Reference | 417041 |
| EAN Code | 3414970404237 |
| Rated Control Supply Voltage | 24V DC |
| Control Voltage Range | 20.4-26.4V DC |
| Main Contact Configuration | 3 Normally Open (3NO) |
| Auxiliary Contact Configuration | 1 Normally Open (1NO) |
| Rated Operation Current AC-3 | 12A at 400V |
| Rated Operation Current AC-1 | 20A at 400V |
| Rated Power AC-3 | 5.5 kW at 400V |
| Electrical Connection Type | Cable Clamp Screw Terminals |
| Power Terminal Capacity | 1.25mm² to 2mm² |
| Coil Terminal Capacity | 0.75mm² to 2.5mm² |
| Auxiliary Circuit Terminal Capacity | 0.75mm² to 2.5mm² |
| Mechanical Endurance | Up to 12 million operations |
| Electrical Endurance | 1 million operations |
| Operation Cycles per Hour | 1800 cycles (AC-3) |
| Mounting Type | 35mm Top-Hat Rail (IEC 60715) and Mounting Plate |
| Size Category | Mini/Compact |
| Suitable for Distribution Board | Yes |
| Application | Industrial and Tertiary Installations |
| Load Types | 3-Phase Motors, Inductive and Non-Inductive Loads |
| Compatibility | All Legrand CTX3 mini Accessories and Auxiliaries |
| Regulatory Compliance | RoHS Directive, REACH Declaration |
| Environmental Design | Environmentally Conscious Process |
| Substance Restrictions | Compliant with Substance-Restriction Requirements |
