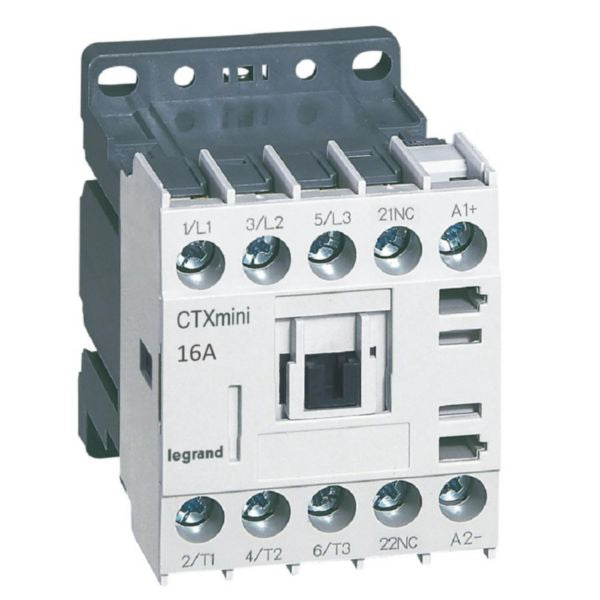

Shop Legrand CTX3 Mini 3P 16A 1NC 24V DC Motor Contactor | 417071 In Iraq Best Prices
Compact 16A 3-phase motor contactor with 24VDC coil, 1NC auxiliary contact, and 7.5kW switching capacity. Features screw terminals, 12 million mechanical operations endurance, and compatibility with standard DIN rail mounting systems.
The Legrand CTX³ mini power contactor is a compact and reliable switching device designed for controlling 3-phase motors up to 7.5kW and resistive loads up to 20A. With its reduced size, this contactor optimizes cabinet space while maintaining superior performance. The device features a 16A AC-3 rating, 24VDC coil, and a mirror 1NC auxiliary contact that ensures dependable control in both tertiary and industrial installations. Built with robust screw terminals supporting power connections from 1.25mm² to 2mm² and coil connections from 0.75mm² to 2.5mm², this contactor delivers exceptional reliability and longevity.
This motor contactor is engineered for seamless integration into distribution boards and mounting systems, featuring compatibility with standard 35mm top hat mounting rails (IEC 60715) and mounting plates. The CTX³ mini offers outstanding endurance with up to 12 million mechanical operations and 1 million electrical operations, supporting up to 1800 operation cycles per hour at AC-3 rating. Its design incorporates environmentally conscious manufacturing principles and complies with substance-restriction requirements, making it an ideal choice for modern electrical installations.
The contactor's advanced features include mirror contact technology meeting IEC 60947-4-1 standards, compatibility with all Legrand CTX3 mini auxiliaries and accessories, and screw terminal connections for secure power and control circuit integration. Whether used for inductive or non-inductive load switching, this product delivers consistent performance across diverse industrial and commercial applications.
Key Features
- Compact design with reduced size for optimized cabinet space utilization
- 16A AC-3 rated contactor for 3-phase motors up to 7.5kW at 415V
- 24VDC coil supply with mirror 1NC auxiliary contact meeting IEC 60947-4-1 standards
- Up to 12 million mechanical operations and 1 million electrical operations endurance
- Compatible with 35mm top hat mounting rail (IEC 60715) and all Legrand CTX3 mini accessories
- Screw terminal connections supporting power (1.25-2mm²) and coil (0.75-2.5mm²) circuits
- Supports up to 1800 operation cycles per hour at AC-3 rating
- Environmentally conscious manufacturing with substance-restriction compliance
- Suitable for both tertiary and industrial installations
- Resistive load capacity up to 20A AC-1
Technical Specifications
| Specification |
Value |
| Product Reference | 417071 |
| EAN Code | 3414970404534 |
| Product Line | CTX³ Mini |
| Manufacturer | Legrand |
| Type | Power Contactor |
| Rated Control Supply Voltage DC (Min-Max) | 20.4-26.4 V |
| Voltage Type for Actuating | DC (Direct Current) |
| Number of Main Contacts (NO) | 3 (Three-phase) |
| Number of Main Contacts (NC) | 0 |
| Rated Operation Current AC-1 at 400V | 20 A |
| Rated Operation Current AC-3 at 400V | 16 A |
| Rated Operation Power AC-3 at 400V | 7.5 kW |
| Auxiliary Contacts (NO) | 0 |
| Auxiliary Contacts (NC) | 1 (Mirror contact) |
| Power Terminal Capacity | 2 x 1.25mm² to 2mm² |
| Coil Terminal Capacity | 0.75mm² to 2.5mm² |
| Auxiliary Circuit Terminal Capacity | 0.75mm² to 2.5mm² |
| Type of Electrical Connection (Main Circuit) | Cable clamp (Screw terminals) |
| Mechanical Operations Endurance | Up to 12 million operations |
| Electrical Operations Endurance | Up to 1 million operations |
| Operation Cycles per Hour (AC-3) | 1800 cycles/hour |
| Mounting | 35mm top hat mounting rail (IEC 60715) or mounting plate |
| Suitable for Distribution Board | Yes |
| Auxiliary Contact Type | Mirror contact (IEC 60947-4-1 compliant) |
| Contact Material | Silver alloy |
| Coil Type | DC 24V |
| Environmental Compliance | RoHS and REACH compliant |
| Installation Type | Tertiary and Industrial |
| Load Type Compatibility | Inductive and non-inductive loads |
| Resistive Load Capacity | 20A AC-1 |
