Shop Legrand CTX3 Mini 4P 16A 24V AC Motor Contactor | 417140 In Iraq Best Prices
Professional motor contactor with 4P 16A capacity, 24V AC control, rated for 7.5kW at AC-3, featuring 12 million mechanical operations durability and compact design for industrial applications.

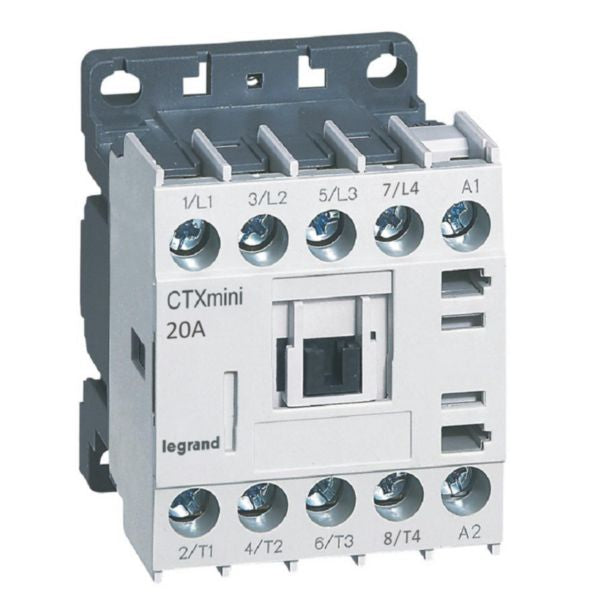

The Legrand CTX3 Mini 4P 16A 24V AC Motor Contactor (Reference 417140) is a professional-grade electrical switching device designed for tertiary and industrial installations. This compact contactor features 4 normally open main contacts with a rated operation current of 16A at AC-3 and 400V, delivering 7.5 kW of rated operation power. The device is engineered for high durability with up to 12 million mechanical operations and 1 million electrical operations, ensuring reliable long-term performance in demanding industrial environments.
The CTX3 mini contactor is specifically optimized for switching both inductive and non-inductive loads, making it ideal for motor control applications and complex electrical circuits. With a rated control supply voltage of 20.4-26.4V AC at both 50Hz and 60Hz, this device provides consistent performance across different power systems. The contactor features cable clamp connections for the main circuit, accommodating power terminals from 2 x 1.25mm² to 2mm² and coil terminals from 0.75mm² to 2.5mm², ensuring flexible installation options.
Designed with environmental consciousness, this product complies with all substance-restriction requirements and modern electrical standards. The reduced size enables optimal space utilization within electrical cabinets, while the possibility of mounting on 35mm 'top hat' mounting rails (IEC 60715) or mounting plates ensures versatile installation flexibility. With an operational cycle capacity of 1800 cycles per hour at AC-3, this contactor delivers exceptional reliability and performance for critical industrial switching applications.
Key Features
- 4 normally open main contacts with 16A rated operation current at AC-3 400V
- Exceptional durability: 12 million mechanical operations and 1 million electrical operations
- Compact design optimized for cabinet space utilization with reduced footprint
- Flexible mounting options on 35mm top hat rails (IEC 60715) or mounting plates
- High operational efficiency: 1800 operation cycles per hour at AC-3 for continuous industrial use
- 7.5 kW rated operation power at AC-3 400V for reliable motor control
- Cable clamp connections accommodating power terminals 2 x 1.25mm² to 2mm²
- Environmentally conscious design complying with substance-restriction requirements
Technical Specifications
| Specification |
Value |
| Product Reference | 417140 |
| EAN Code | 3414970404619 |
| Brand | Legrand |
| Product Series | CTX3 Mini |
| Number of Poles | 4P (4 Pole) |
| Rated Operation Current AC-1 | 20A at 400V |
| Rated Operation Current AC-3 | 16A at 400V |
| Rated Operation Power AC-3 | 7.5 kW at 400V |
| Control Supply Voltage AC 50Hz | 20.4-26.4V (Min-Max) |
| Control Supply Voltage AC 60Hz | 20.4-26.4V (Min-Max) |
| Voltage Type for Actuating | AC (Alternating Current) |
| Number of Normally Open Main Contacts | 4 |
| Number of Normally Closed Main Contacts | 0 |
| Main Circuit Connection Type | Cable Clamp |
| Power Terminal Capacity | 2 x 1.25mm² to 2mm² |
| Coil Terminal Capacity | 0.75mm² to 2.5mm² |
| Mechanical Operations | Up to 12 million cycles |
| Electrical Operations | Up to 1 million cycles |
| Operation Cycles per Hour AC-3 | 1800 cycles/hour |
| Mounting Type | 35mm top hat rail (IEC 60715) or mounting plate |
| Suitable for Distribution Board | Yes |
| Application Type | Tertiary and Industrial Installations |
| Load Type Compatibility | Inductive and non-inductive loads |
| Environmental Compliance | RoHS and REACH compliant |
| Design Philosophy | Environmentally conscious with substance-restriction compliance |
Order Legrand CTX3 Mini 4P 16A 24V AC Motor Contactor | 417140 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
