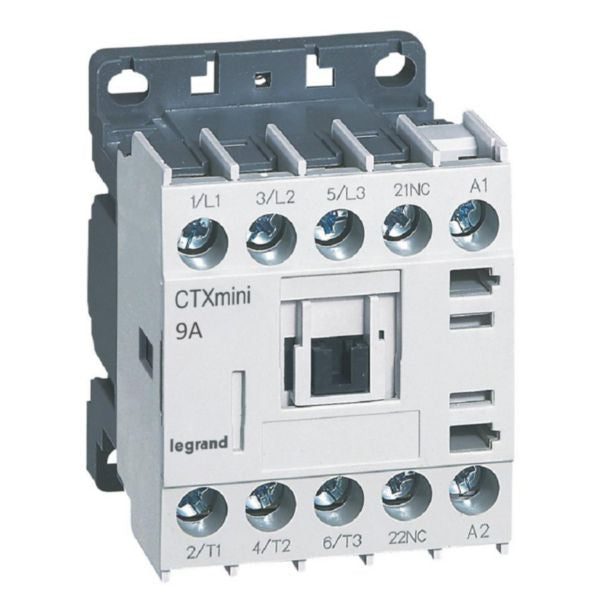

Shop Legrand CTX3 Mini 3P 9A Motor Contactor 110V AC | 417034 In Iraq Best Prices
Compact 9A 3-phase motor contactor with 110V AC coil, 1NC auxiliary contact, and reduced cabinet footprint for industrial motor control and switching applications.
The Legrand CTX³ mini power contactor is a compact industrial switching device designed for controlling motors, lighting, and heating circuits up to 16A. This innovative contactor offers a rated capacity of 9A (AC-3) for 3-phase motors up to 4kW at 415V, and 20A (AC-1) for resistive loads. The unit features a 110V AC coil with 1NC mirror auxiliary contact, providing reliable performance in tertiary and industrial installations. Its reduced size allows for optimal space utilization within electrical cabinets while maintaining exceptional durability and performance standards.
Equipped with screw terminals accommodating power connections from 2 x 1.25mm² to 2mm², coil connections from 0.75mm² to 2.5mm², and auxiliary circuit connections from 0.75mm² to 2.5mm², this contactor ensures secure and flexible wiring configurations. The device demonstrates outstanding endurance with up to 12 million mechanical operations and 1 million electrical operations, supporting up to 1800 operation cycles per hour at AC-3 rating. The NC auxiliary contact meets the definition of mirror contact according to IEC 60947-4-1 standard, and the contactor can be equipped with all Legrand CTX3 mini auxiliaries and accessories for enhanced functionality.
Designed with environmental consciousness and compliance with substance-restriction requirements, the CTX³ mini contactor represents a sustainable choice for modern electrical installations. Its compatibility with 35mm top hat mounting rails (IEC 60715) and mounting plates makes installation straightforward and efficient. This product is specially recommended for switching inductive and non-inductive loads in professional electrical applications.
Key Features
- Rated 9A (AC-3) for 3-phase motors up to 4kW at 415V and 20A (AC-1) for resistive loads
- Compact reduced-size design optimizing cabinet space with 35mm top hat rail mounting compatibility
- 1NC mirror auxiliary contact compliant with IEC 60947-4-1 standard
- Exceptional endurance: 12 million mechanical operations and 1 million electrical operations
- 110V AC coil with flexible screw terminal capacity for power and auxiliary circuits
Technical Specifications
| Specification |
Value |
| Product Reference | 417034 |
| EAN Code | 3414970404152 |
| Brand | Legrand |
| Product Line | CTX³ Mini |
| Rated Control Supply Voltage AC 50Hz | 93.5-121V |
| Rated Control Supply Voltage AC 60Hz | 93.5-121V |
| Voltage Type for Actuating | AC |
| Number of Main Contacts (Normally Open) | 3 |
| Number of Main Contacts (Normally Closed) | 0 |
| Number of Auxiliary Contacts (Normally Closed) | 1 |
| Number of Auxiliary Contacts (Normally Open) | 0 |
| Rated Operation Current AC-1 at 400V | 20A |
| Rated Operation Current AC-3 at 400V | 9A |
| Rated Operation Power AC-3 at 400V | 4kW |
| Power Terminal Capacity | 2 x 1.25mm² to 2mm² |
| Coil Terminal Capacity | 0.75mm² to 2.5mm² |
| Auxiliary Circuit Terminal Capacity | 0.75mm² to 2.5mm² |
| Type of Electrical Connection | Cable Clamp (Screw Terminals) |
| Mechanical Operations Endurance | Up to 12 million cycles |
| Electrical Operations Endurance | Up to 1 million cycles |
| Operation Cycles per Hour (AC-3) | 1800 |
| Mounting Method | 35mm Top Hat Rail (IEC 60715) and Mounting Plate |
| Suitable for Distribution Board | Yes |
| Auxiliary Contact Type | Mirror Contact (IEC 60947-4-1 Compliant) |
| Environmental Compliance | RoHS Compliant, REACH Declaration Available |
