Compact 3-phase motor contactor with 6A AC-3 rating, 1NC auxiliary contact, 24V AC coil, and screw terminals for reliable industrial panel integration with exceptional 12 million mechanical operation endurance.

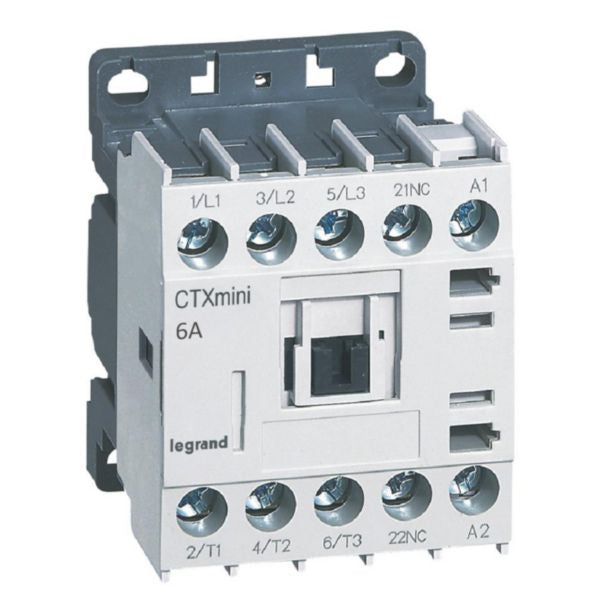

The Legrand CTX³ mini power contactor is a compact, highly reliable switching device designed for industrial and tertiary installations. With a reduced size profile, it efficiently switches 3-phase motors up to 2.2kW (AC-3 6A) and resistive loads up to 20A (AC-1). The device features screw terminals for secure power connections (2 x 1.25mm² to 2mm²) and coil connections (0.75mm² to 2.5mm²), ensuring reliable and safe electrical integration in control panels.
This motor contactor is engineered with a single normally closed (1NC) mirror auxiliary contact that complies with IEC 60947-4-1 standards, providing precise control and protection in motor switching applications. The CTX³ mini is compatible with all Legrand CTX3 mini auxiliaries and accessories, offering flexible customization for various installation requirements. Its exceptional endurance rating of up to 12 million mechanical operations and 1 million electrical operations ensures long-term reliability in demanding industrial environments.
The product is specifically designed for installation on 35mm 'top hat' mounting rails (IEC 60715) and mounting plates, optimizing space utilization in electrical cabinets. With a rated control supply voltage of 20.4-26.4V AC at both 50Hz and 60Hz, this contactor delivers consistent performance across different power systems. The device complies with substance-restriction requirements and has been manufactured through environmentally conscious processes, making it an ideal choice for modern sustainable electrical installations.
Key Features
- Compact reduced-size design optimizing cabinet space utilization
- Switches 3-phase motors up to 2.2kW (AC-3 6A) and resistive loads up to 20A (AC-1)
- 1NC mirror auxiliary contact complying with IEC 60947-4-1 standards
- Screw terminals for secure power (2 x 1.25-2mm²) and coil (0.75-2.5mm²) connections
- Exceptional 12 million mechanical and 1 million electrical operation endurance
- Compatible with all Legrand CTX3 mini auxiliaries and accessories
- Mounts on 35mm IEC 60715 top hat rails and mounting plates
- Rated control supply voltage 20.4-26.4V AC at 50/60Hz
- 1800 operation cycles per hour (AC-3) capability
- Environmentally conscious manufacturing and substance-restriction compliant
Technical Specifications
| Specification |
Value |
| Product Model | CTX3 Mini |
| Manufacturer | Legrand |
| Reference Number | 417010 |
| EAN Code | 3414970403919 |
| Rated Operation Current AC-1 at 400V | 20A |
| Rated Operation Current AC-3 at 400V | 6A |
| Rated Operation Power AC-3 at 400V | 2.2kW |
| Main Contacts Configuration | 3 Normally Open (NO) |
| Auxiliary Contacts | 1 Normally Closed (NC) Mirror Contact |
| Control Supply Voltage AC 50Hz | 20.4-26.4V AC |
| Control Supply Voltage AC 60Hz | 20.4-26.4V AC |
| Voltage Type | AC (Alternating Current) |
| Power Terminal Capacity | 2 x 1.25mm² to 2mm² |
| Coil Terminal Capacity | 0.75mm² to 2.5mm² |
| Auxiliary Circuit Terminal Capacity | 0.75mm² to 2.5mm² |
| Electrical Connection Type | Screw Terminals (Cable Clamp) |
| Mechanical Operations Endurance | Up to 12 Million |
| Electrical Operations Endurance | Up to 1 Million |
| Operation Cycles per Hour AC-3 | 1800 |
| Mounting Standard | 35mm IEC 60715 Top Hat Rail |
| Installation Method | DIN Rail or Mounting Plate |
| Suitable for Distribution Board | Yes |
| Compliance Standards | IEC 60947-4-1, RoHS Directive, REACH |
| Application | 3-Phase Motor Switching, Inductive and Non-Inductive Loads |
| Auxiliary Compatibility | All Legrand CTX3 Mini Auxiliaries and Accessories |
