Shop Legrand CTX3 Mini 3P 12A 1NO 415V AC Motor Contactor | 417049 In Iraq Best Prices
Compact 12A motor contactor for 3-phase applications up to 5.5kW, featuring integrated auxiliary contact, reduced size for cabinet optimization, and 12 million mechanical operations endurance.

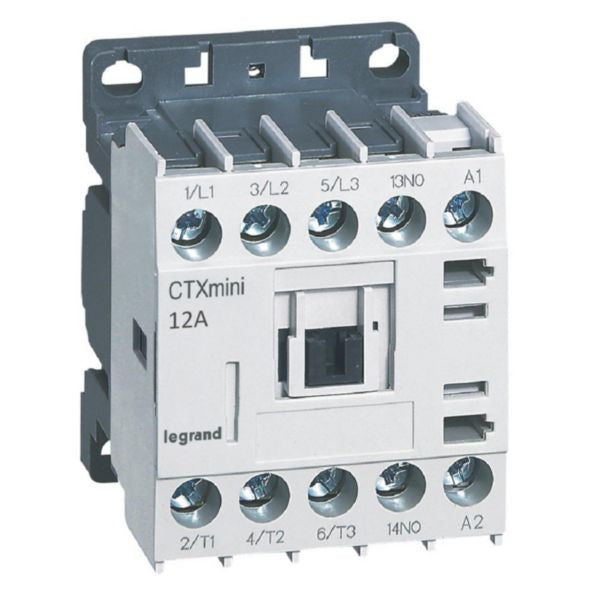

The Legrand CTX³ mini power contactor is a compact, high-performance switching device specifically designed for tertiary and industrial installations. With a rated capacity of 12A (AC-3), this contactor can efficiently switch three-phase motors up to 5.5kW at 415V, as well as resistive loads up to 20A (AC-1). The reduced size design optimizes cabinet space while maintaining exceptional reliability and performance. This contactor features an integrated 1NO auxiliary contact and is equipped with screw terminals capable of accommodating power cables from 1.25mm² to 2mm², coil connections from 0.75mm² to 2.5mm², and auxiliary circuit connections from 0.75mm² to 2.5mm². The device demonstrates outstanding endurance with up to 12 million mechanical operations and 1 million electrical operations, making it ideal for demanding applications that require frequent switching cycles.
The CTX³ mini contactor is engineered for easy panel integration and can be mounted on both 35mm top-hat mounting rails (IEC 60715) and mounting plates, providing flexible installation options for various cabinet configurations. Its AC 50/60 Hz rated control supply voltage range of 352.75-456.5V ensures compatibility with standard industrial power systems. The contactor is fully compatible with all Legrand CTX3 mini auxiliaries and accessories, allowing for customized configurations to meet specific application requirements. The device complies with all substance-restriction requirements and has been manufactured using environmentally conscious processes, reflecting Legrand's commitment to sustainable industrial solutions.
This motor contactor is recommended for switching both inductive and non-inductive loads in industrial and tertiary environments. With its superior mechanical and electrical endurance, compact design, and comprehensive compatibility with Legrand accessories, the CTX³ mini represents an optimal choice for applications requiring reliable motor control and protection. The product is supplied with comprehensive technical documentation and installation guides to ensure proper implementation and maximum operational efficiency.
Key Features
- 12A (AC-3) rated capacity for 3-phase motors up to 5.5kW at 415V
- Resistive load switching capability up to 20A (AC-1)
- Integrated 1NO auxiliary contact for flexible control configurations
- Compact reduced size design optimizing cabinet space utilization
- 12 million mechanical operations and 1 million electrical operations endurance
- Screw terminals supporting power cables 1.25-2mm², coil 0.75-2.5mm², auxiliary 0.75-2.5mm²
- Mountable on 35mm top-hat rail (IEC 60715) and mounting plates
- Compatible with all Legrand CTX3 mini auxiliaries and accessories
- AC 50/60 Hz rated control supply voltage 352.75-456.5V
- RoHS and REACH compliant with environmentally conscious manufacturing
Technical Specifications
| Specification |
Value |
| Product Type | Power Contactor |
| Brand | Legrand |
| Series | CTX³ Mini |
| Reference Number | 417049 |
| EAN Code | 3414970404299 |
| Rated Current AC-3 at 400V | 12A |
| Rated Current AC-1 at 400V | 20A |
| Rated Power AC-3 at 400V | 5.5 kW |
| Number of Main Poles | 3 (3NO) |
| Auxiliary Contacts | 1NO (Normally Open) |
| Control Supply Voltage AC 50 Hz | 352.75-456.5V |
| Control Supply Voltage AC 60 Hz | 352.75-456.5V |
| Voltage Type | AC |
| Power Terminal Capacity | 1.25mm² to 2mm² |
| Coil Terminal Capacity | 0.75mm² to 2.5mm² |
| Auxiliary Circuit Terminal Capacity | 0.75mm² to 2.5mm² |
| Connection Type | Cable Clamp (Screw Terminals) |
| Mechanical Endurance | 12 million operations |
| Electrical Endurance | 1 million operations |
| Operation Cycles per Hour (AC-3) | 1800 |
| Mounting Options | 35mm Top-Hat Rail (IEC 60715) and Mounting Plate |
| Size | Mini (Compact/Reduced) |
| Suitable for Distribution Board | Yes |
| Standards Compliance | IEC 60715, RoHS, REACH |
| Environmental Compliance | Substance-Restriction Compliant, Environmentally Conscious Manufacturing |
| Application | Tertiary and Industrial Installations |
| Load Type | Inductive and Non-Inductive Loads |
