Professional CTX³ control relay with 4NO contacts, 415V AC coil, 20 million mechanical operations endurance, DIN-rail mounting, and expandable contact configuration for industrial motor control applications.

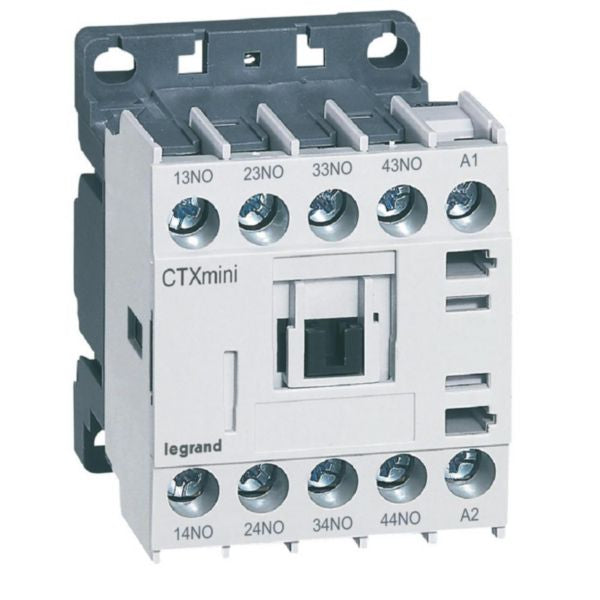

The Legrand CTX³ control relay is a professional-grade switching device designed for industrial and tertiary installations. This relay features 4 normally open (4NO) main contacts actuated by an AC coil operating between 340V to 440V, making it suitable for three-phase motor control and circuit switching applications. The device delivers exceptional reliability with endurance ratings up to 20 million mechanical operations and 0.5 million electrical operations at AC-15 rating, ensuring long-term performance in demanding industrial environments.
This CTX³ relay is engineered with screw terminal connections supporting power circuits from 1.25mm² to 2mm² and coil connections from 0.75mm² to 2.5mm², providing flexible installation options for various electrical configurations. The relay can be mounted on 35mm DIN-rail (IEC 60715) or directly on mounting plates, optimizing space utilization in electrical cabinets. With a rated operation current of 1.9A at 400V and support for up to 1800 operation cycles per hour in AC-3 applications, this relay maintains consistent performance under continuous industrial use.
The CTX³ relay's contact configuration can be extended using auxiliary contact blocks, allowing customization for complex control circuits. The device is fully compliant with substance restriction requirements and has been manufactured using environmentally conscious processes. Its compact design, robust construction, and expandable architecture make it an ideal choice for motor starters, circuit protection, and industrial automation systems requiring reliable switching solutions.
Key Features
- 4 Normally Open (4NO) main contacts for reliable circuit switching
- AC coil rated 340V-440V for flexible voltage applications
- 20 million mechanical operations and 0.5 million electrical operations endurance
- DIN-rail (IEC 60715) and screw mounting options for cabinet optimization
- Expandable contact configuration with auxiliary contact blocks
- Screw terminals supporting power 1.25-2mm² and coil 0.75-2.5mm²
- 1.9A rated operation current at 400V for efficient motor control
- 1800 operation cycles per hour in AC-3 applications
- Manual operation capability for emergency control
- RoHS compliant and environmentally conscious manufacturing
Technical Specifications
| Specification |
Value |
| Product Type | Control Relay |
| Model | CTX³ |
| SKU/Reference | 416809 |
| EAN Code | 3414970407610 |
| Rated Control Supply Voltage AC 50Hz | 340-440 V |
| Rated Control Supply Voltage AC 60Hz | 340-440 V |
| Voltage Type | AC (Alternating Current) |
| Number of Main Contacts | 4 Normally Open (4NO) |
| Number of Auxiliary Contacts | Expandable with auxiliary contact blocks |
| Rated Operation Current at 400V | 1.9 A |
| Mechanical Operations Endurance | Up to 20 million cycles |
| Electrical Operations Endurance AC-15 | 0.5 million cycles |
| Operation Cycles per Hour AC-3 | 1800 cycles |
| Power Terminal Capacity | 1.25mm² to 2mm² |
| Coil Terminal Capacity | 0.75mm² to 2.5mm² |
| Connection Type | Screw terminals |
| Mounting Method | DIN-rail (IEC 60715) and screw mounting |
| LED Indication | No |
| Manual Operation | Yes |
| Interface | Yes |
| Compliance Standards | RoHS Directive, REACH Declaration, IEC 60715 |
| Environmental Certification | Environmentally conscious manufacturing process |
| Application | Industrial and tertiary installations, motor control, circuit switching |
