Shop Legrand CTX3 Control Relay 4NO 24V DC Motor Contactor | 416801 In Iraq Best Prices
Compact industrial control relay with 4NO contacts, 24VDC coil, rated for 20 million mechanical and 0.5 million electrical operations. Features secure screw terminals, DIN-rail mounting, and manual operation capability for reliable motor control and circuit protection.

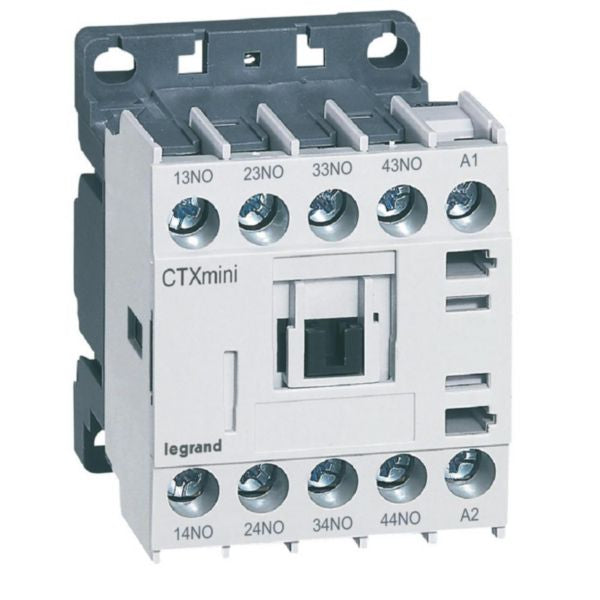

The Legrand CTX³ control relay is a compact industrial-grade device designed for controlling circuits via 4 normally open (NO) contacts actuated by a 24VDC low-consumption coil. This versatile contactor is specifically engineered for tertiary and industrial installations where reliable circuit control is essential. The relay offers exceptional endurance with up to 20 million mechanical operations and 0.5 million electrical operations, making it an ideal choice for demanding applications requiring long-term reliability and consistent performance.
The CTX³ features advanced screw terminal connections with capacity ranging from 0.75mm² to 2.5mm² for the coil and 1.25mm² to 2mm² for power circuits, ensuring secure and reliable electrical connections. The device supports a rated operation current of 1.9A at 400V and operates at a rated control supply voltage between 20.4V and 26.4V DC. Its compact design allows for flexible mounting on 35mm DIN-rail or mounting plates, optimizing space utilization within electrical cabinets.
This control relay is engineered with environmental consciousness and complies with substance-restriction requirements including RoHS and REACH directives. The CTX³ can be extended with mini auxiliary contact blocks to increase contact configurations, providing flexibility for complex control circuits. With manual operation capability and interface compatibility, this relay delivers professional-grade performance for motor control, circuit protection, and industrial automation applications.
Key Features
- 4 Normally Open (NO) main contacts for reliable circuit control and switching
- Low-consumption 24VDC coil with rated operation current of 1.9A at 400V
- Exceptional endurance: 20 million mechanical operations and 0.5 million electrical operations
- Compact DIN-rail (35mm) and plate mounting for flexible installation and space optimization
- Extendable with CTX3 mini auxiliary contact blocks for customizable circuit configurations
- Secure screw terminals: Power 1.25mm² to 2mm², Coil 0.75mm² to 2.5mm²
- Manual operation capability for emergency control and testing
- RoHS and REACH compliant for environmental responsibility
- Interface compatibility for integration with control systems
- Rated control supply voltage: 20.4V to 26.4V DC with stable performance
Technical Specifications
| Specification |
Value |
| Product Type | Control Relay / Motor Contactor |
| Model | CTX³ |
| Reference Number | 416801 |
| EAN Code | 3414970407535 |
| Coil Voltage | 24V DC |
| Coil Supply Voltage Range | 20.4V - 26.4V DC |
| Number of Contacts | 4 Normally Open (NO) |
| Rated Operation Current | 1.9A at 400V |
| Mechanical Endurance | Up to 20 million operations |
| Electrical Endurance | 0.5 million operations (AC-15) |
| Operation Cycles per Hour | 1800 cycles/hour (AC-3) |
| Power Terminal Capacity | 1.25mm² to 2mm² |
| Coil Terminal Capacity | 0.75mm² to 2.5mm² |
| Connection Type | Screw terminals |
| Mounting Method | DIN-rail (35mm IEC 60715) / Plate mounting |
| Manual Operation | Yes |
| LED Indication | No |
| Interface | Yes |
| Auxiliary Contacts Extension | Compatible with CTX3 mini auxiliary contact blocks |
| Compliance Standards | RoHS Directive, REACH Declaration |
| Application | Tertiary and industrial installations, motor control, circuit protection |
| Design Philosophy | Environmentally conscious manufacturing process |
