Legrand CTX³ 2NO2NC 24VDC control relay with 20 million mechanical operations endurance, DIN-rail mounting, and extended contact configuration capability for industrial motor control applications.

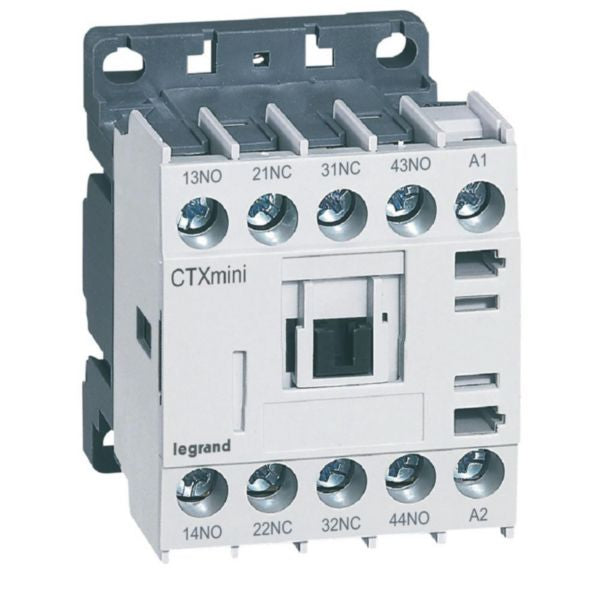

The Legrand CTX³ control relay with 2NO+2NC configuration and 24VDC rated control supply voltage is engineered for reliable switching of inductive and resistive loads in demanding industrial control logic applications. This compact relay features screw terminal capacity accommodating power connections from 1.25mm² to 2mm² and coil connections from 0.75mm² to 2.5mm², making it ideal for diverse cabinet installations. The device delivers exceptional endurance with up to 20 million mechanical operations and 0.5 million electrical operations at AC-15 rating, ensuring long-term reliability in continuous industrial duty cycles.
Designed for versatile mounting options, the CTX³ relay can be installed on 35mm DIN-rail (IEC 60715) or directly on mounting plates, optimizing valuable cabinet space in tertiary and industrial installations. The relay's contact configuration can be extended using optional CTX3 mini auxiliary contact blocks, providing flexibility for complex control schemes. With a rated operation current of 1.9A at 400V and capability for 1800 operation cycles per hour under AC-3 conditions, this relay excels in motor control, automation, and protection applications requiring precision switching performance.
Complying with all substance-restriction requirements and manufactured through environmentally conscious processes, the CTX³ relay represents Legrand's commitment to sustainable industrial solutions. Its manual operation capability and interface features enable seamless integration into existing control systems, while the screw connection terminals ensure secure and reliable electrical connections for mission-critical industrial applications.
Key Features
- 2NO + 2NC main contacts configuration for flexible switching control
- Up to 20 million mechanical operations and 0.5 million electrical operations at AC-15 rating
- Compact DIN-rail and plate mounting for optimized cabinet space utilization
- Screw terminals supporting 1.25mm² to 2mm² power and 0.75mm² to 2.5mm² coil connections
- Extendable contact configuration with optional CTX3 mini auxiliary contact blocks
- Manual operation capability and interface features for seamless system integration
- 1800 operation cycles per hour under AC-3 conditions
- RoHS compliant and environmentally conscious manufacturing process
- Rated control supply voltage 24VDC with operating range 20.4-26.4V
- Rated operation current of 1.9A at 400V for reliable load switching
Technical Specifications
| Specification |
Value |
| Product Type | Control Relay |
| Model | CTX³ |
| Reference Number | 416821 |
| EAN Code | 3414970407733 |
| Rated Control Supply Voltage DC | 24V |
| Operating Voltage Range | 20.4-26.4V |
| Voltage Type for Actuating | DC |
| Main Contacts Configuration | 2NO + 2NC |
| Auxiliary Contacts - Normally Open | 2 |
| Auxiliary Contacts - Normally Closed | 2 |
| Rated Operation Current at 400V | 1.9A |
| Mounting Method | DIN-rail (IEC 60715) and Screw mounting |
| Power Terminal Capacity | 1.25mm² to 2mm² |
| Coil Terminal Capacity | 0.75mm² to 2.5mm² |
| Connection Type | Screw connection |
| Mechanical Operations Endurance | Up to 20 million |
| Electrical Operations Endurance (AC-15) | 0.5 million |
| Operation Cycles per Hour (AC-3) | 1800 |
| Manual Operation | Yes |
| LED Indication | No |
| Interface | Yes |
| Contact Extension Option | CTX3 mini auxiliary contact blocks available |
| Compliance | RoHS Directive, REACH Declaration |
| Application | Industrial motor control, automation, and protection |
| Load Type | Inductive and resistive loads |
