Shop Legrand CTX3 Control Relay 2NO2NC 24V AC Motor | 416820 In Iraq Best Prices

Professional Legrand CTX³ control relay with 2NO+2NC contacts for industrial motor control. Rated 24V AC, 20 million mechanical operations, DIN-rail mountable, screw terminals, AC-15 rated.

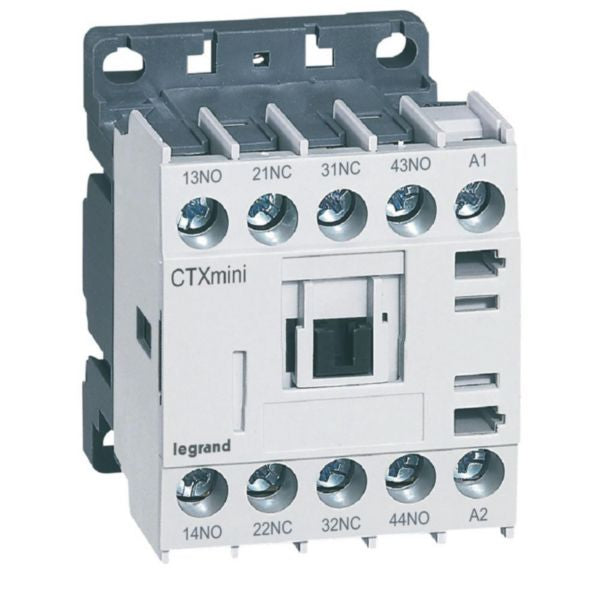

The Legrand CTX³ Control Relay is a professional-grade electrical component designed for controlling circuits through normally open and normally closed contacts. This relay features 2NO+2NC main contacts and is engineered for both DIN-rail and plate mounting configurations, making it ideal for tertiary and industrial installations. With an impressive endurance rating of up to 20 million mechanical operations and 0.5 million electrical operations (AC-15), this relay ensures long-term reliability and consistent performance in demanding environments. This control relay is specifically engineered for motor control applications and circuit protection in industrial settings. The CTX³ relay offers flexible installation options with reduced size to optimize cabinet space. The screw terminals accommodate power connections from 1.25mm² to 2mm² and coil connections from 0.75mm² to 2.5mm², providing versatile wiring compatibility. The relay operates at a rated control supply voltage of 20.4-26.4V AC at both 50 Hz and 60 Hz, ensuring global compatibility across different electrical systems. The device complies with substance-restriction requirements and has been designed with environmental consciousness in mind. Its contact configuration can be extended using CTX3 mini auxiliary contact blocks, allowing for customized control solutions. With a rated operation current of 1.9A at 400V and capable of handling 1800 operation cycles per hour in AC-3 mode, the CTX³ relay delivers exceptional performance for complex control systems. The interface capability and manual operation support make this relay an excellent choice for both automated and semi-automated control applications.

Key Features

2NO+2NC main contacts for flexible circuit control
20 million mechanical operations endurance rating
DIN-rail and plate mounting options available
Compact design optimizes cabinet space utilization
Extendable with CTX3 mini auxiliary contact blocks
0.5 million electrical operations at AC-15 rating
1800 operation cycles per hour in AC-3 mode
Interface capability for automated control systems
Manual operation support for semi-automatic applications
Environmentally conscious design with RoHS compliance

Technical Specifications

Specification	Value
Product Model	CTX³ Control Relay
Reference Number	416820
EAN Code	3414970407726
Rated Control Supply Voltage AC 50 Hz	20.4-26.4V
Rated Control Supply Voltage AC 60 Hz	20.4-26.4V
Voltage Type for Actuating	AC
Rated Operation Current at 400V	1.9A
Main Contact Configuration	2NO + 2NC
Auxiliary Contacts - Normally Open	2
Auxiliary Contacts - Normally Closed	2
Mounting Method	DIN-rail/screw and mounting plate
Power Terminal Capacity	1.25mm² to 2mm²
Coil Terminal Capacity	0.75mm² to 2.5mm²
Connection Type	Screw connection
Mechanical Operations Endurance	Up to 20 million operations
Electrical Operations Endurance AC-15	0.5 million operations
Operation Cycles AC-3 per Hour	1800 cycles
LED Indication	No
Manual Operation	Yes
Interface Capability	Yes
Compliance Standards	RoHS Directive, REACH Declaration
Application	Tertiary and industrial installations, motor control
Design Approach	Environmentally conscious process

Order Legrand CTX3 Control Relay 2NO2NC 24V AC Motor | 416820 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
