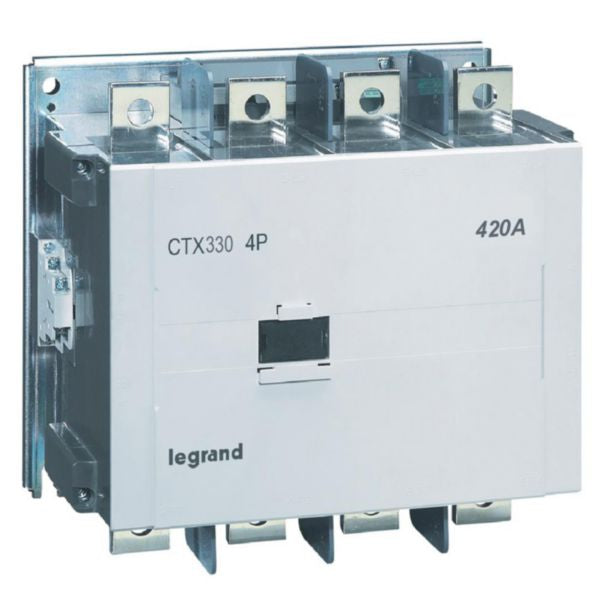

| Product Type | 4-Pole Power Contactor |
| Manufacturer | Legrand |
| Model | CTX³ |
| Reference Number | 416496 |
| EAN Code | 3414970403773 |
| Rated Operation Current AC-1 at 400V | 420 A |
| Rated Operation Current AC-3 at 400V | 330 A |
| Rated Operation Power AC-3 at 400V | 160 kW |
| Control Supply Voltage AC 50 Hz (Min-Max) | 85-264 V |
| Control Supply Voltage AC 60 Hz (Min-Max) | 85-264 V |
| Control Supply Voltage DC (Min-Max) | 85-242 V |
| Voltage Type for Actuating | AC/DC |
| Number of Main Contacts (Normally Open) | 4 |
| Number of Main Contacts (Normally Closed) | 0 |
| Number of Auxiliary Contacts (Normally Open) | 2 |
| Number of Auxiliary Contacts (Normally Closed) | 2 |
| Electrical Connection Type | Screw Connection |
| Power Terminal Capacity | 95mm² to 240mm² |
| Coil Terminal Capacity | 1.25mm² to 5.5mm² |
| Auxiliary Circuit Terminal Capacity | 1.25mm² to 5.5mm² |
| Mechanical Operations Endurance | Up to 2.5 million |
| Electrical Operations Endurance | 0.5 million |
| Operation Cycles per Hour (AC-1) | 1200 |
| Suitable for Distribution Board | No |
| Mounting | Fixing possible on mounting plate |
| Front Cover | Removable for visual inspection |
| Coil Replacement | Easy replacement design |
| Compliance | RoHS Directive, REACH Declaration, Environmentally conscious design |
| Application | Tertiary and industrial installations |
| Load Type | Inductive and non-inductive loads |
