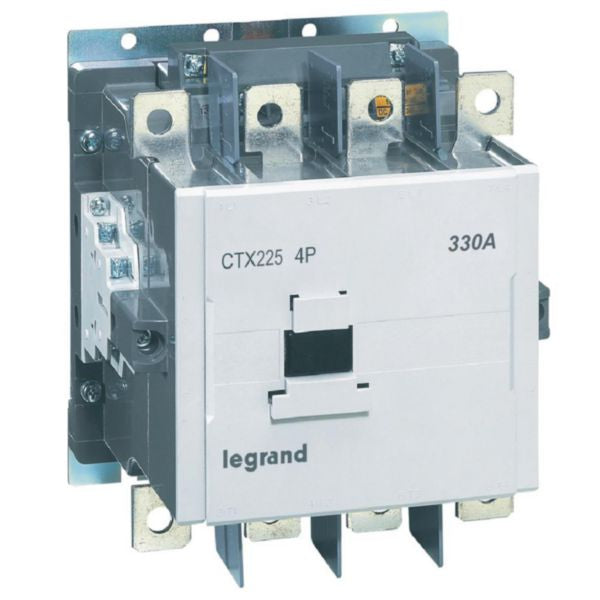

Shop Legrand CTX3 4P 330A Motor Contactor 100V-240V AC | 416486 In Iraq Best Prices
Professional 4-pole 330A motor contactor with integrated auxiliary contacts, 100-240V AC/DC coil, exceptional endurance up to 5 million mechanical operations, and removable front cover for easy maintenance.
The Legrand CTX³ power contactor is a high-performance industrial switching device designed for demanding motor control and circuit protection applications. With a 4-pole configuration and rated capacity of 330A AC-1/225A AC-3, this contactor delivers reliable performance for tertiary and industrial installations. The device features a 100-240V AC or 100-220V DC coil supply, making it versatile for various electrical systems. Equipped with integrated 2NO+2NC auxiliary contacts, the CTX³ provides comprehensive control and monitoring capabilities for complex motor switching scenarios.
This robust contactor is engineered for exceptional endurance with up to 5 million mechanical operations and 0.8 million electrical operations, ensuring long-term reliability in demanding industrial environments. The removable front cover design allows for easy visual inspection of arc chambers and contacts, facilitating maintenance and troubleshooting. Screw terminal connections accommodate power cables from 50mm² to 150mm², coil connections from 1.25mm² to 5.5mm², and auxiliary circuit connections of the same capacity, providing flexibility in installation configurations.
The CTX³ contactor complies with all substance-restriction requirements and has been designed with environmental consciousness in mind. It can be equipped with all Legrand CTX3 auxiliaries and accessories, allowing for customized configurations to meet specific application requirements. With a rated operation current of 330A at AC-1 and 225A at AC-3 (400V), delivering 132kW power at AC-3, this contactor is ideal for switching both inductive and non-inductive loads in professional electrical installations.
Key Features
- 4-pole configuration with 330A AC-1 and 225A AC-3 rated capacity
- Integrated 2NO+2NC auxiliary contacts for comprehensive control
- 100-240V AC / 100-220V DC coil supply for versatile applications
- Exceptional endurance: 5 million mechanical and 0.8 million electrical operations
- Removable front cover for visual inspection and easy maintenance
- Screw terminal connections: Power 50-150mm², Coil 1.25-5.5mm², Auxiliary 1.25-5.5mm²
- Compatible with all Legrand CTX3 auxiliaries and accessories
- High reliability for demanding industrial and tertiary installations
- Engineered for both inductive and non-inductive load switching
- Environmentally conscious design with substance-restriction compliance
Technical Specifications
| Specification |
Value |
| Product Type | Power Contactor |
| Poles | 4-pole |
| Rated Operation Current AC-1 | 330 A at 400V |
| Rated Operation Current AC-3 | 225 A at 400V |
| Rated Operation Power AC-3 | 132 kW at 400V |
| Coil Supply Voltage AC | 85-264V (50Hz and 60Hz) |
| Coil Supply Voltage DC | 85-242V |
| Main Contact Configuration | 4 Normally Open (NO) |
| Auxiliary Contacts | 2NO + 2NC (factory assembled) |
| Mechanical Endurance | Up to 5 million operations |
| Electrical Endurance | 0.8 million operations |
| Operation Cycles per Hour AC-1 | 1200 cycles |
| Power Terminal Capacity | 50mm² to 150mm² (screw connection) |
| Coil Terminal Capacity | 1.25mm² to 5.5mm² (screw connection) |
| Auxiliary Circuit Terminal Capacity | 1.25mm² to 5.5mm² (screw connection) |
| Connection Type | Screw terminals |
| Front Cover | Removable for inspection and maintenance |
| Coil Replacement | Engineered for easy replacement |
| Mounting | Fixing possible on mounting plate |
| Reference Number | 416486 |
| EAN Code | 3414970403766 |
| Suitable for Distribution Board | No |
| Environmental Compliance | RoHS and REACH compliant |
| Application | Tertiary and industrial installations |
| Load Types | Inductive and non-inductive loads |
