Description

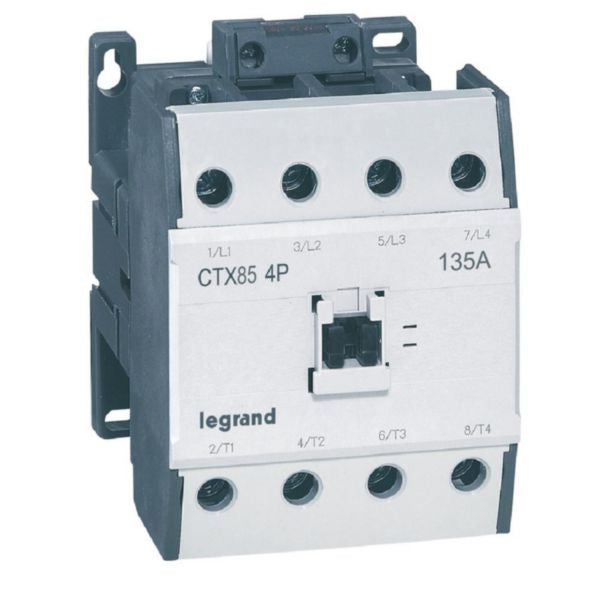

Shop Legrand CTX3 4-Pole 135A 230V AC Motor Contactor | 416456 In Iraq Best Prices

High-performance 4-pole motor contactor rated 135A at 230VAC with 12 million mechanical operations, compact DIN-rail mounting, and full compatibility with CTX³ auxiliaries for reliable industrial motor control.

The Legrand CTX³ power contactor is a high-performance 4-pole motor control device rated at 135A (AC-1) operating at 230VAC. Engineered for demanding motor switching and circuit control applications, this contactor delivers exceptional reliability with up to 12 million mechanical operations and 1 million electrical operations. The compact design facilitates easy DIN-rail mounting on standard 35mm top-hat rails, optimizing cabinet space while maintaining superior electrical performance. With screw terminal capacity supporting power connections from 2x25mm² to 50mm² and coil connections from 0.75mm² to 2.5mm², this contactor provides flexible installation options for diverse industrial and tertiary applications. The CTX³ contactor features engineered coil replacement capabilities for simplified maintenance and extended service life. Operating at 1800 cycles per hour under AC-1 conditions, it demonstrates exceptional endurance suitable for continuous industrial use. The device is fully compatible with all Legrand CTX³ auxiliaries and accessories, allowing for customized control configurations. Its robust construction complies with substance-restriction requirements and incorporates environmentally conscious design principles, making it an ideal choice for modern industrial installations requiring reliable motor protection and control. This motor contactor is specifically designed for switching both inductive and non-inductive loads in tertiary and industrial installations. The 4 normally-open main contacts provide reliable circuit switching, while the cable clamp electrical connection ensures secure and stable power transmission. With rated operation current of 85A at AC-3 400V and 45kW rated power, the CTX³ delivers versatile performance across multiple industrial applications.

Key Features

4-pole configuration with 4 normally-open main contacts for reliable motor switching
High endurance rated at 135A (AC-1) with up to 12 million mechanical operations
Compact DIN-rail mounting on standard 35mm top-hat rails for space optimization
Engineered coil replacement capability for simplified maintenance and extended service life
Full compatibility with all Legrand CTX³ auxiliaries and accessories for customized control
Operates at 1800 cycles per hour under AC-1 conditions with 1 million electrical operations
Screw terminal connections supporting 2x25mm² to 50mm² power and 0.75mm² to 2.5mm² coil wiring
AC-3 rated at 85A 400V with 45kW power capacity for versatile industrial applications
Environmentally conscious design complying with substance-restriction requirements
Suitable for both inductive and non-inductive load switching in industrial installations

Technical Specifications

Specification	Value
Product Type	4-Pole Motor Contactor
Model	CTX³
Rated Current (AC-1)	135A at 230VAC
Rated Current (AC-3)	85A at 400VAC
Rated Power (AC-3)	45 kW at 400VAC
Number of Poles	4
Main Contacts Configuration	4 Normally Open (NO)
Auxiliary Contacts	0 NO, 0 NC (expandable with accessories)
Control Supply Voltage AC 50Hz	195.5-253V
Control Supply Voltage AC 60Hz	195.5-253V
Voltage Type	AC
Power Terminal Capacity	2 x 25mm² to 50mm²
Coil Terminal Capacity	0.75mm² to 2.5mm²
Electrical Connection Type	Cable Clamp
Mechanical Operations	Up to 12 million
Electrical Operations	Up to 1 million
Operating Cycles Per Hour (AC-1)	1800
Mounting Type	DIN-rail 35mm top-hat (IEC 60715)
Suitable for Distribution Board	Yes
Reference Number	416456
EAN Code	3414970403728
Compliance	RoHS Directive, REACH Declaration
Application	Motor control and protection, inductive and non-inductive load switching
Recommended Use	Tertiary and industrial installations

Order Legrand CTX3 4-Pole 135A 230V AC Motor Contactor | 416456 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
