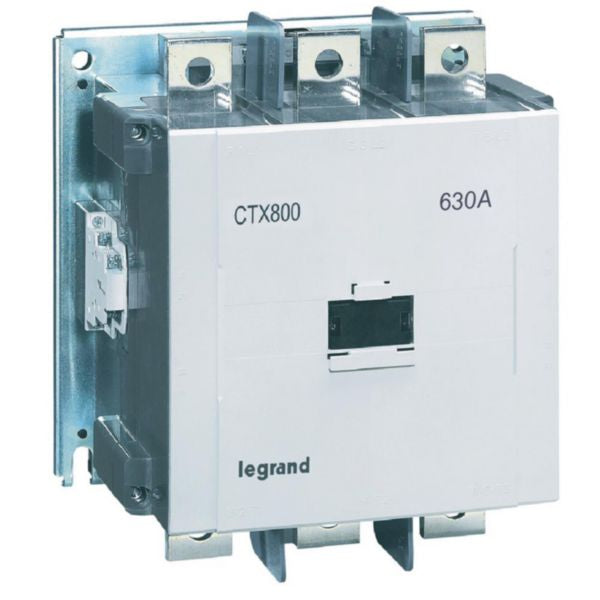

| Product Type | Three-Phase AC Power Contactor |
| Brand | Legrand |
| Model | CTX³ |
| Reference Number | 416349 |
| EAN Code | 3414970403612 |
| Rated Current AC-3 (400V) | 630A |
| Rated Current AC-1 (400V) | 660A |
| Rated Current AC-4 (400V) | 400A |
| Rated Power AC-3 (400V) | 330kW |
| Rated Power AC-4 (400V) | 200kW |
| Control Voltage AC 50Hz (Min-Max) | 323-418V |
| Control Voltage AC 60Hz (Min-Max) | 323-418V |
| Voltage Type for Actuating | AC |
| Main Contact Configuration | 3 Normally Open (NO), 0 Normally Closed (NC) |
| Auxiliary Contacts | 2NO + 2NC (Mirror contacts per IEC 60947-4-1) |
| Electrical Connection Type | Screw Connection |
| Power Terminal Capacity | M16 Screws |
| Coil Terminal Capacity | 1.25mm² to 5.5mm² |
| Auxiliary Circuit Terminal Capacity | 1.25mm² to 5.5mm² |
| Mechanical Operations | Up to 2,000,000 cycles |
| Electrical Operations | Up to 500,000 cycles |
| Maximum Operation Cycles per Hour (AC-3) | 1200 cycles/hour |
| Front Cover Type | Removable for inspection |
| Mounting Method | Fixing on mounting plate |
| Suitable for Distribution Board | No |
| Compatibility | All Legrand CTX3 auxiliaries and accessories |
| Environmental Compliance | RoHS Directive, REACH Declaration, Substance-restriction requirements |
| Carbon Footprint (Manufacturing Phase A1-A3) | 194.75 kg CO₂ eq. |
| Application | Motor switching, circuit control, inductive and non-inductive loads |
| Installation Type | Tertiary and industrial installations |
