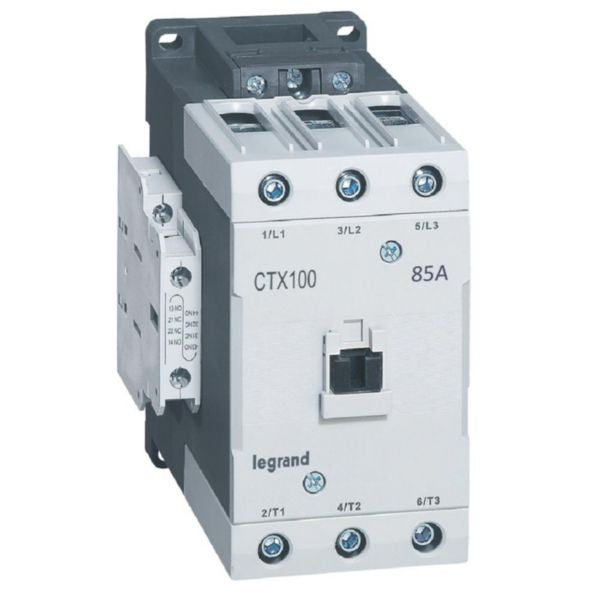

Shop Legrand CTX³ 3-Pole Motor Contactor 85A AC-3 45kW | 416210 In Iraq Best Prices
Premium 3-pole motor contactor with 85A AC-3 rating for 45kW motors, featuring 2NO+2NC auxiliary contacts, modular rail mounting, and 12 million mechanical operation endurance.
The Legrand CTX³ is a premium 3-pole contactor specifically engineered for motor control and protection in tertiary and industrial installations. With a rated capacity of 85A AC-3 for switching 3-phase motors up to 45 kW at 415V, this contactor delivers exceptional performance and reliability. It features 2NO+2NC auxiliary contacts that meet IEC 60947-4-1 standards, providing flexible control options for complex automation systems. The modular design allows mounting on standard 35mm rail systems, optimizing cabinet space while maintaining full operational integrity.
Built with advanced arc chamber technology and removable front covers for visual inspection, the CTX³ contactor ensures safe and efficient operation in demanding industrial environments. It supports cage terminals with power capacity from 2.5mm² to 70mm², and coil connections from 0.75mm² to 2.5mm². With an impressive endurance rating of up to 12 million mechanical operations and 2 million electrical operations, this contactor guarantees long-term durability and cost-effectiveness. The device is fully compliant with RoHS and REACH regulations, reflecting Legrand's commitment to environmental sustainability.
The CTX³ contactor features flexible coil supply options on either top or bottom side, engineered for easy coil replacement and maintenance. Its compact modular design reduces installation time while the robust construction ensures reliable performance under continuous industrial use. Whether for motor starting, load switching, or complex control sequences, the Legrand CTX³ delivers the performance and reliability that industrial professionals demand.
Key Features
- 85A AC-3 rated capacity for 3-phase motors up to 45 kW at 415V
- 2NO+2NC auxiliary contacts meeting IEC 60947-4-1 standards
- 12 million mechanical operations and 2 million electrical operations endurance
- Modular design for 35mm rail mounting with compact cabinet optimization
- Flexible coil supply options on top or bottom side with easy replacement
- Advanced arc chamber technology with removable front covers for inspection
- Cage terminals supporting power 2.5mm² to 70mm² and coil 0.75mm² to 2.5mm²
- RoHS and REACH compliant for environmental sustainability
- Suitable for tertiary and industrial motor control applications
- 1800 operation cycles per hour at AC-3 rating for continuous duty
Technical Specifications
| Specification |
Value |
| Product Type | 3-Pole Motor Contactor |
| Rated Current AC-3 (400V) | 85A |
| Rated Power AC-3 (400V) | 45 kW |
| Rated Current AC-1 (400V) | 135A |
| Rated Current AC-4 (400V) | 62A |
| Rated Power AC-4 (400V) | 30 kW |
| Main Contacts Configuration | 3 Normally Open (NO) |
| Auxiliary Contacts | 2NO + 2NC |
| Coil Supply Voltage AC 50Hz | 20.4-26.4V |
| Coil Supply Voltage AC 60Hz | 20.4-26.4V |
| Coil Supply Type | AC |
| Main Circuit Connection | Screw Connection |
| Power Terminal Capacity | 1 x 2.5mm² to 70mm², 2 x 2.5mm² to 50mm² |
| Coil Terminal Capacity | 0.75mm² to 2.5mm² |
| Auxiliary Circuit Terminal Capacity | 0.75mm² to 2.5mm² |
| Mechanical Operations Endurance | 12 Million |
| Electrical Operations Endurance | 2 Million |
| Operation Cycles per Hour (AC-3) | 1800 |
| Mounting Type | 35mm Top Hat Rail (IEC 60715) and Mounting Plate |
| Standards Compliance | IEC 60947-4-1 |
| Environmental Compliance | RoHS Directive and REACH Regulation |
| Carbon Footprint (Manufacturing) | 14.25 kg CO2 eq. |
| Reference Number | 416210 |
| EAN Code | 3414970402042 |
| Coil Supply Position | Top or Bottom Side |
Order Legrand CTX³ 3-Pole Motor Contactor 85A AC-3 45kW | 416210 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
