Shop Legrand CTX³ 3-Pole Motor Contactor 85A 230V AC | 416206 In Iraq Best Prices
Professional 3-pole motor contactor rated 85A AC-3 with 45kW capacity, featuring 2NO+2NC auxiliary contacts, screw terminals, and modular design for industrial and tertiary installations.

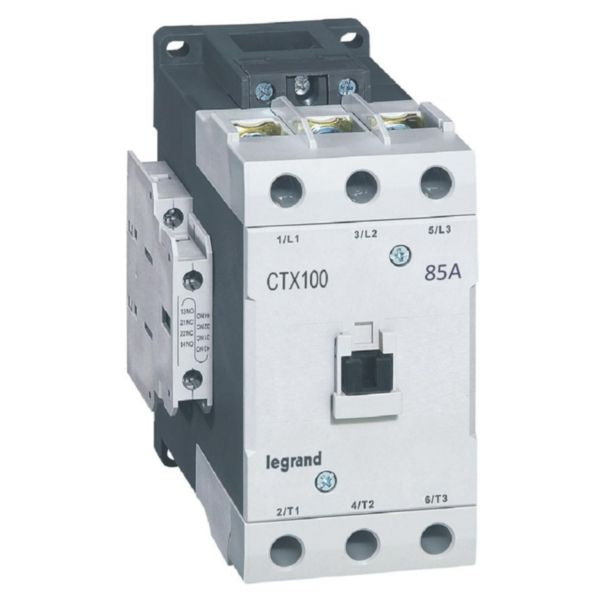

The Legrand CTX³ is a professional-grade 3-pole motor contactor designed for switching three-phase motors up to 45 kW at 415V and resistive loads up to 135A at AC-1 rating. This compact modular contactor features screw terminals with capacity for power connections from 10mm² to 50mm² and auxiliary circuits from 0.75mm² to 2.5mm². Equipped with 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts that meet IEC 60947-4-1 standards, the CTX³ delivers exceptional reliability with up to 12 million mechanical operations and 2 million electrical operations.
The contactor is specifically engineered for tertiary and industrial installations, offering flexible mounting options on standard 35mm DIN rails (IEC 60715) or mounting plates. The removable front cover provides easy visual inspection of arc chambers and contacts, while the engineered coil design allows straightforward replacement. With a rated control supply voltage of 195.5-253V AC at both 50Hz and 60Hz, this device ensures consistent performance across different electrical standards. The coil supply can be positioned on either the top or bottom side of the unit for optimal installation flexibility.
Built with environmental consciousness, the CTX³ complies with substance-restriction requirements and RoHS directives. The product features a carbon footprint of 14.25 kg CO₂ equivalents during the manufacturing phase, reflecting Legrand's commitment to sustainable industrial solutions. The device is suitable for distribution boards and comes with comprehensive technical documentation including instruction manuals, technical sheets, and protection guides for three-phase asynchronous motors.
Key Features
- 85A AC-3 rated for switching 3-phase motors up to 45 kW at 415V
- 135A AC-1 rating for resistive loads with excellent current handling capacity
- 2 normally open and 2 normally closed auxiliary contacts meeting IEC 60947-4-1 standards
- Up to 12 million mechanical operations and 2 million electrical operations for extended lifespan
- Compact modular design with flexible mounting on DIN rails or mounting plates
- Removable front cover for easy visual inspection of arc chambers and contacts
- Engineered coil design allowing straightforward replacement and maintenance
- Screw terminals with power capacity 10mm² to 50mm² and auxiliary circuit 0.75mm² to 2.5mm²
- Dual coil supply positioning (top or bottom) for optimal installation flexibility
- RoHS compliant and environmentally conscious manufacturing process
Technical Specifications
| Specification |
Value |
| Product Model | CTX³ 3-Pole Contactor |
| Reference Number | 416206 |
| EAN Code | 3414970401960 |
| Rated Current AC-3 | 85A at 400V |
| Rated Current AC-1 | 135A at 400V |
| Rated Power AC-3 | 45 kW at 415V |
| Rated Power AC-4 | 30 kW at 400V |
| Rated Current AC-4 | 62A at 400V |
| Control Supply Voltage AC 50Hz | 195.5-253V |
| Control Supply Voltage AC 60Hz | 195.5-253V |
| Voltage Type | AC |
| Main Contacts Configuration | 3 Normally Open (3NO) |
| Auxiliary Contacts | 2NO + 2NC (Mirror contacts) |
| Electrical Connection Type | Cable Clamp (Screw Terminals) |
| Power Terminal Capacity | 10mm² to 50mm² |
| Coil Terminal Capacity | 0.75mm² to 2.5mm² |
| Auxiliary Circuit Terminal Capacity | 0.75mm² to 2.5mm² |
| Mechanical Operations | Up to 12 million cycles |
| Electrical Operations | Up to 2 million cycles |
| Operations per Hour AC-3 | 1800 cycles |
| Mounting Type | DIN Rail (35mm IEC 60715) and Mounting Plate |
| Form Factor | Modular, Compact |
| Coil Supply Position | Top or Bottom |
| Front Cover | Removable for Arc Chamber Inspection |
| Suitable for Distribution Board | Yes |
| Environmental Compliance | RoHS Compliant, REACH Declaration |
| Carbon Footprint Manufacturing | 14.25 kg CO₂ equivalent |
| Application Type | Tertiary and Industrial Installations |
| Load Types | Inductive and Non-Inductive Loads |
| Standards Compliance | IEC 60947-4-1, IEC 60715 |
