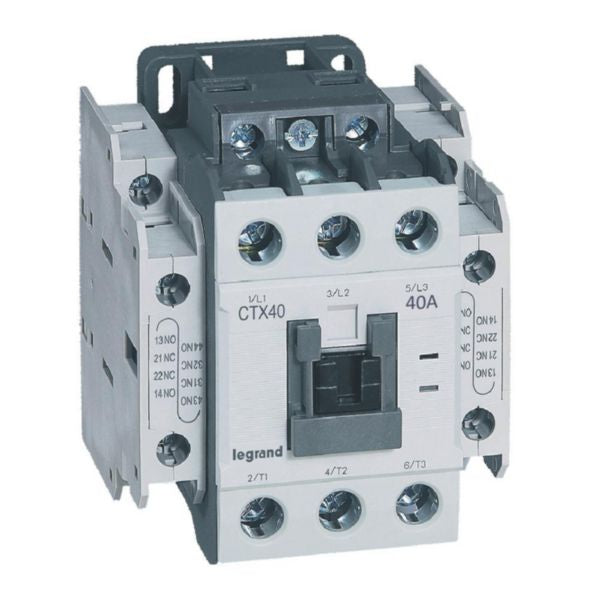

Shop Legrand CTX³ 3-Pole Motor Contactor 40A AC-3 Screw Terminals | 416139 In Iraq Best Prices
Professional 3-pole motor contactor with 40A AC-3 rating, 18.5 kW capacity at 415V, screw terminals, 2NO+2NC auxiliary contacts, and up to 12 million mechanical operations for reliable industrial motor control.
The Legrand CTX³ is a professional-grade 3-pole motor contactor designed for industrial and tertiary installations. With a 40A AC-3 rating, this contactor can switch 3-phase motors up to 18.5 kW at 415V, making it ideal for medium-sized motor control applications. The device features screw terminal connections with capacities ranging from 0.75mm² to 16mm² for power circuits and auxiliary circuits, ensuring reliable and secure connections for various wire gauges.
This modular contactor is equipped with 2NO (normally open) and 2NC (normally closed) auxiliary contacts, complying with IEC 60947-4-1 standards. The NC auxiliary contact meets the mirror contact definition according to international standards, providing flexible control options. Built for endurance, the CTX³ achieves up to 12 million mechanical operations and 2 million electrical operations, with a rated operation cycle of 1800 per hour at AC-3 rating.
The contactor features an eco-friendly design and can be equipped with all Legrand CTX3 auxiliaries and accessories. Its compact size optimizes cabinet space utilization, while the removable front cover allows easy visual inspection of arc chambers and contacts. The coil supply can be positioned on either the top or bottom side for installation flexibility. Designed for switching inductive and non-inductive loads, this contactor is an essential component for reliable motor control in industrial environments.
Key Features
- 40A AC-3 rating for 3-phase motors up to 18.5 kW at 415V
- 2NO + 2NC auxiliary contacts with mirror contact compliance to IEC 60947-4-1
- Up to 12 million mechanical operations and 2 million electrical operations
- Screw terminals with capacity from 0.75mm² to 16mm² for flexible wiring
- Compact modular design with removable front cover for easy maintenance
- Eco-friendly design compliant with substance-restriction requirements
- Compatible with all Legrand CTX3 auxiliaries and accessories
- Flexible coil supply positioning on top or bottom side
Technical Specifications
| Specification |
Value |
| Product Type | 3-Pole Motor Contactor |
| Model | CTX³ |
| Rated Current (AC-3) | 40A at 400V |
| Rated Power (AC-3) | 18.5 kW at 415V |
| Rated Current (AC-1) | 60A for resistive loads |
| Rated Current (AC-4) | 17A at 400V |
| Rated Power (AC-4) | 7.5 kW |
| Number of Main Contacts | 3 Normally Open |
| Auxiliary Contacts | 2NO + 2NC (Mirror Contact) |
| Main Circuit Connection | Cable Clamp (Screw Terminals) |
| Power Terminal Capacity | 2 x 10mm² to 16mm² |
| Coil Terminal Capacity | 0.75mm² to 2.5mm² |
| Auxiliary Circuit Terminal Capacity | 0.75mm² to 2.5mm² |
| Control Supply Voltage AC 50Hz (Min-Max) | 352.75-456.5V |
| Control Supply Voltage AC 60Hz (Min-Max) | 352.75-456.5V |
| Voltage Type for Actuating | AC |
| Mechanical Operations Endurance | Up to 12 million |
| Electrical Operations Endurance | Up to 2 million |
| Operation Cycles per Hour (AC-3) | 1800 |
| Mounting | 35mm Top Hat Rail (IEC 60715) or Mounting Plate |
| Installation Type | Modular Version |
| Standards Compliance | IEC 60947-4-1 |
| Suitable for Distribution Board | Yes |
| Reference Number | 416139 |
| EAN Code | 3414970400628 |
| Carbon Footprint (Manufacturing Phase) | 4.75 kg CO₂eq |
| Environmental Design | Eco-Friendly, Substance-Restriction Compliant |
| Coil Supply Positioning | Top or Bottom Side |
| Front Cover | Removable for Arc Chamber and Contact Inspection |
| Accessories Compatibility | All Legrand CTX3 Auxiliaries and Accessories |
