Description

Shop Legrand CTX³ 3-Pole Motor Contactor 40A AC-3 Screw Terminals | 416136 In Iraq Best Prices

Professional 3-pole motor contactor with 40A AC-3 rating, 2NO+2NC auxiliary contacts, screw terminals, and up to 12M mechanical operations for industrial motor control applications.

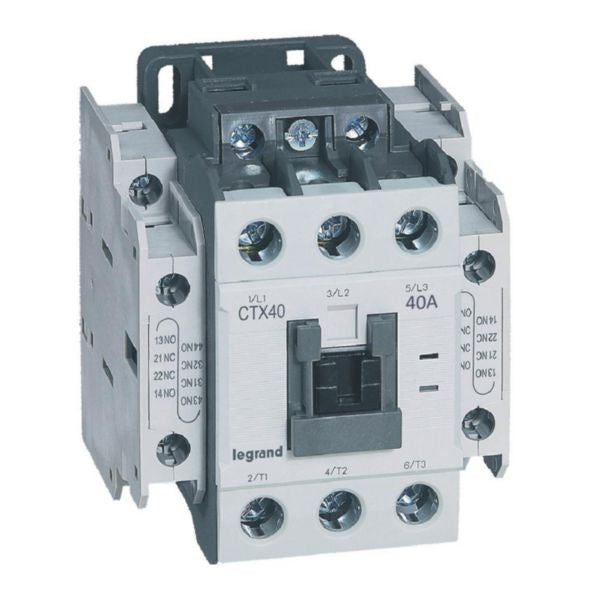

The Legrand CTX³ is a professional-grade 3-pole contactor designed for motor control and protection in industrial and tertiary installations. With a rated capacity of 40A at AC-3 rating, this contactor is engineered to switch 3-phase motors up to 18.5 kW at 415V, as well as resistive loads up to 60A at AC-1. The device features screw terminal connections with flexible cable capacity ranging from 2x10mm² to 16mm² for power circuits and 0.75mm² to 2.5mm² for coil and auxiliary circuits. This robust contactor is equipped with 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts, with the NC contact meeting the mirror contact definition according to IEC 60947-4-1 standard. The CTX³ offers exceptional durability with up to 12 million mechanical operations and 2 million electrical operations, supporting up to 1800 operation cycles per hour under AC-3 conditions. Its removable front cover allows for easy visual inspection of arc chambers and contacts, while the coil supply can be positioned either on the top or bottom side for flexible installation configurations. The contactor is designed for mounting on 35mm 'top hat' mounting rails (IEC 60715) or directly on mounting plates, optimizing cabinet space. It complies with all substance-restriction requirements and is manufactured through environmentally conscious processes. The device is fully compatible with all Legrand CTX3 auxiliaries and accessories, making it an ideal choice for comprehensive motor control solutions in demanding industrial environments.

Key Features

40A AC-3 rated capacity for 3-phase motors up to 18.5 kW at 415V
2 normally open and 2 normally closed auxiliary contacts with mirror contact compliance
12 million mechanical operations and 2 million electrical operations endurance
Screw terminals with flexible cable capacity from 2x10mm² to 16mm² for power circuits
Removable front cover for easy visual inspection of arc chambers and contacts
Flexible coil supply positioning on top or bottom side
Mounting on 35mm top hat rail (IEC 60715) or mounting plate
Compatible with all Legrand CTX3 auxiliaries and accessories
Environmentally conscious manufacturing with substance-restriction compliance
Supports up to 1800 operation cycles per hour under AC-3 conditions

Technical Specifications

Specification	Value
Product Type	3-Pole Motor Contactor
Rated Current AC-3 (400V)	40A
Rated Power AC-3 (400V)	18.5 kW
Rated Current AC-1 (400V)	60A
Rated Current AC-4 (400V)	17A
Rated Power AC-4 (400V)	7.5 kW
Control Supply Voltage AC 50Hz	195.5-253V
Control Supply Voltage AC 60Hz	195.5-253V
Number of Main Poles	3 (Normally Open)
Auxiliary Contacts	2NO + 2NC (Mirror Contact)
Main Circuit Connection Type	Screw Terminals (Cable Clamp)
Power Terminal Capacity	2 x 10mm² to 16mm²
Coil Terminal Capacity	0.75mm² to 2.5mm²
Auxiliary Circuit Terminal Capacity	0.75mm² to 2.5mm²
Mechanical Operations	12 Million
Electrical Operations	2 Million
Operation Cycles per Hour (AC-3)	1800
Mounting Method	35mm Top Hat Rail (IEC 60715) or Mounting Plate
Coil Supply Position	Top or Bottom
Standard Compliance	IEC 60947-4-1
Reference Number	416136
EAN Code	3414970400567
Manufacturer	Legrand
Carbon Footprint (Manufacturing)	4.75 kg CO₂ eq.
Environmental Compliance	RoHS Directive, REACH Declaration

Order Legrand CTX³ 3-Pole Motor Contactor 40A AC-3 Screw Terminals | 416136 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
