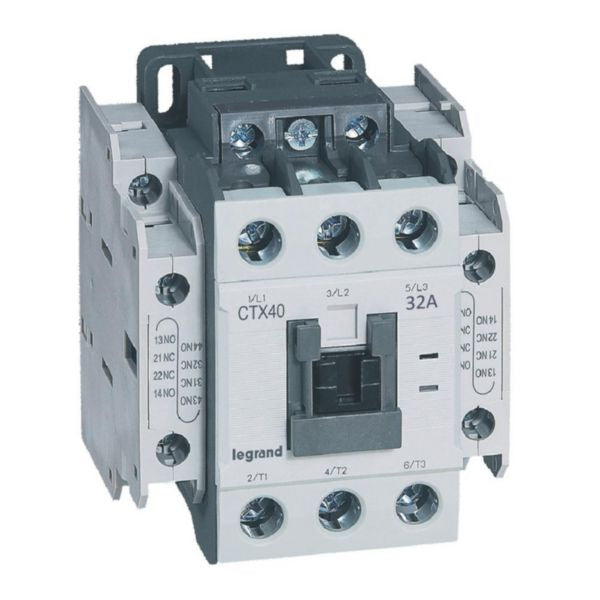

| Manufacturer | Legrand |
| Product Type | 3-Pole Motor Contactor |
| Model | CTX³ |
| Reference Number | 416129 |
| EAN Code | 3414970400420 |
| Rated Current (AC-3 at 400V) | 32A |
| Rated Current (AC-1 at 400V) | 50A |
| Rated Current (AC-4 at 400V) | 17A |
| Rated Power (AC-3 at 400V) | 15 kW |
| Rated Power (AC-4 at 400V) | 7.5 kW |
| Control Voltage AC 50Hz (Min-Max) | 352.75-456.5V |
| Control Voltage AC 60Hz (Min-Max) | 352.75-456.5V |
| Voltage Type | AC |
| Number of Main Contacts | 3 Normally Open (NO) |
| Number of Auxiliary Contacts | 2 NO + 2 NC |
| Auxiliary Contact Type | 2 Normally Open + 2 Normally Closed (Mirror Contact) |
| Main Circuit Connection Type | Screw Terminals (Cable Clamp) |
| Power Terminal Capacity | 2 x 1.5mm² to 10mm² |
| Coil Terminal Capacity | 0.75mm² to 2.5mm² |
| Auxiliary Circuit Terminal Capacity | 0.75mm² to 2.5mm² |
| Mechanical Operations | Up to 12 million |
| Electrical Operations | Up to 2 million |
| Operation Cycles per Hour (AC-3) | 1800 |
| Mounting Type | 35mm DIN Rail (IEC 60715) or Mounting Plate |
| Coil Supply Position | Top or Bottom Configurable |
| Front Cover | Removable for Arc Chamber and Contact Inspection |
| Compatibility | All Legrand CTX3 Auxiliaries and Accessories |
| Standards Compliance | IEC 60947-4-1, IEC 60715 |
| Environmental Compliance | RoHS Compliant, REACH Compliant |
| Carbon Footprint (Manufacturing Phase) | 4.75 kg CO₂ eq. |
| Application | Motor Control, Industrial Installations, Tertiary Applications |
| Load Types | Inductive (Motors) and Non-Inductive (Resistive up to 50A AC-1) |
| Suitable for Distribution Board | Yes |
