Professional 3-pole motor contactor with 32A AC-3 rating, 24V DC actuation, 2NO+2NC auxiliary contacts, and 12 million mechanical operations endurance for industrial switching applications.

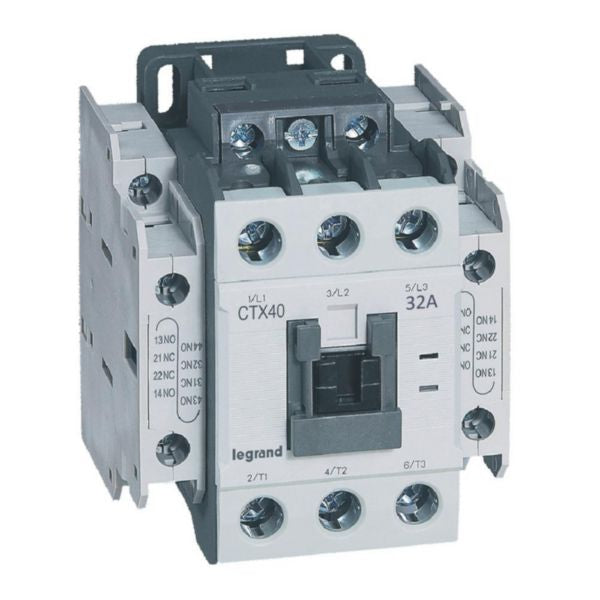

The Legrand CTX³ motor contactor is a professional-grade electrical switching device designed for industrial and tertiary installations. This 3-pole contactor features a 32A AC-3 rating, making it suitable for switching 3-phase motors up to 15 kW at 415V, with additional capacity for resistive loads up to 50A AC-1. The contactor is equipped with 24V DC actuation and includes 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts, with the NC contact meeting the mirror contact definition according to IEC 60947-4-1 standards.
Designed for reliability and durability, this CTX³ contactor offers exceptional endurance with up to 12 million mechanical operations and 2 million electrical operations, supporting 1800 operation cycles per hour under AC-3 conditions. The device features screw terminal connections with power capacity from 2 x 1.5mm² to 10mm² and coil connections from 0.75mm² to 2.5mm². The compact design allows for mounting on 35mm DIN rails or mounting plates, optimizing cabinet space while maintaining full functionality.
The CTX³ contactor incorporates advanced engineering features including a removable front cover for visual inspection of arc chambers and contacts, and the innovative capability to supply the coil from either the top or bottom side. Compatible with all Legrand CTX3 auxiliaries and accessories, this contactor is fully compliant with substance-restriction requirements and designed through environmentally conscious manufacturing processes.
Key Features
- 32A AC-3 rating for 3-phase motors up to 15 kW at 415V with 50A AC-1 resistive load capacity
- 24V DC actuation with dual coil supply capability from top or bottom side
- 2NO + 2NC auxiliary contacts with mirror contact compliance to IEC 60947-4-1 standard
- 12 million mechanical operations and 2 million electrical operations with 1800 cycles per hour
- Compact design with 35mm DIN rail mounting and removable front cover for inspection
- Screw terminal connections supporting power cables 2x1.5mm² to 10mm² and coil 0.75mm² to 2.5mm²
- Compatible with all Legrand CTX3 auxiliaries and accessories
- Environmentally conscious manufacturing with full substance-restriction compliance
- Easy coil replacement engineering for maintenance efficiency
Technical Specifications
| Specification |
Value |
| Product Type | 3-Pole Motor Contactor |
| Rated Current AC-3 (400V) | 32A |
| Rated Power AC-3 (400V) | 15 kW |
| Rated Current AC-1 (400V) | 50A |
| Rated Current AC-4 (400V) | 17A |
| Rated Power AC-4 (400V) | 7.5 kW |
| Control Supply Voltage | 24V DC (20.4-26.4V range) |
| Main Contact Configuration | 3 Normally Open (NO) |
| Auxiliary Contacts | 2NO + 2NC |
| Power Terminal Capacity | 2 x 1.5mm² to 10mm² |
| Coil Terminal Capacity | 0.75mm² to 2.5mm² |
| Auxiliary Circuit Terminal Capacity | 0.75mm² to 2.5mm² |
| Connection Type | Screw Terminals (Cable Clamp) |
| Mechanical Operations | Up to 12 million operations |
| Electrical Operations | Up to 2 million operations |
| Operation Cycles per Hour (AC-3) | 1800 cycles |
| Mounting | 35mm DIN Rail (IEC 60715) or Mounting Plate |
| Standard Compliance | IEC 60947-4-1 |
| Reference Number | 416121 |
| EAN Code | 3414970400260 |
| Coil Supply Position | Top or Bottom Side |
| Front Cover | Removable for Arc Chamber and Contact Inspection |
| Environmental Compliance | RoHS Compliant, REACH Declaration, Substance-Restriction Requirements Met |
| Carbon Footprint (Manufacturing) | 4.75 kg CO₂ eq. |
| Suitable for Distribution Board | Yes |
