Shop Legrand CTX³ 3-Pole Motor Contactor 22A AC-3 DC Actuation | 416111 In Iraq Best Prices
Professional 3-pole motor contactor with 22A AC-3 rating, DC actuation, and 1NO+1NC auxiliary contacts for reliable industrial motor control and switching applications

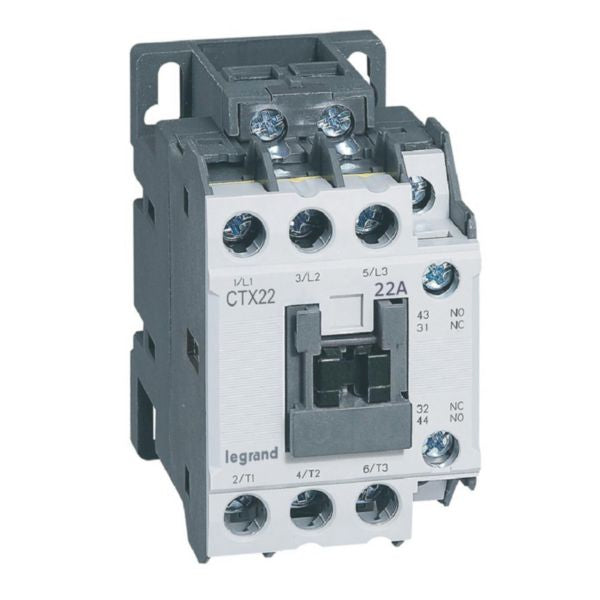

The Legrand CTX³ motor contactor is a high-performance industrial switching device designed for reliable control of three-phase motors and resistive loads. With a rated capacity of 22A AC-3 (11 kW at 415V) and 40A AC-1, this modular contactor delivers exceptional performance for tertiary and industrial installations. The device features DC voltage actuation (20.4-26.4V), 1NO+1NC auxiliary contacts, and screw terminal connections for power circuits (1.5mm² to 10mm²) and control circuits (0.75mm² to 2.5mm²). Built to IEC 60947-4-1 standards, the CTX³ offers impressive endurance with up to 15 million mechanical operations and 2.5 million electrical operations, supporting 1800 operation cycles per hour in AC-3 mode.
This compact contactor is specifically engineered for easy installation on 35mm DIN rail mounting systems and mounting plates, optimizing cabinet space utilization. The design allows flexible coil supply from either the top or bottom side, facilitating seamless integration into existing control systems. The 1NO+1NC auxiliary contacts are factory-assembled with the NC contact meeting the mirror contact definition according to IEC 60947-4-1 standards. All Legrand CTX3 accessories and auxiliaries are compatible with this device, providing extensive customization options for various application requirements.
The CTX³ contactor complies with all substance-restriction requirements and has been developed through environmentally conscious manufacturing processes. With a carbon footprint of 4.75 kg CO₂eq during the manufacturing phase, this device represents a sustainable choice for industrial motor control. The product includes comprehensive technical documentation, installation guides, and support materials to ensure proper deployment and maintenance throughout its operational lifespan.
Key Features
- 22A AC-3 rating for 3-phase motors up to 11 kW at 415V with 40A AC-1 resistive load capacity
- DC voltage actuation (20.4-26.4V) with flexible coil supply from top or bottom side
- 1NO+1NC auxiliary contacts factory-assembled with mirror contact definition per IEC 60947-4-1
- 15 million mechanical operations and 2.5 million electrical operations endurance rating
- Compact modular design compatible with 35mm DIN rail and mounting plates for optimized cabinet space
- Screw terminal connections for power (1.5-10mm²) and control circuits (0.75-2.5mm²)
- 1800 operation cycles per hour in AC-3 mode for high-frequency switching applications
- Environmentally conscious manufacturing with 4.75 kg CO₂eq carbon footprint
- Full compatibility with all Legrand CTX3 accessories and auxiliary modules
- Easy coil replacement design for simplified maintenance and service
Technical Specifications
| Specification |
Value |
| Product Type | 3-Pole Motor Contactor |
| Brand | Legrand |
| Model | CTX³ |
| SKU/Reference | 416111 |
| EAN Code | 3414970400062 |
| Rated Current AC-3 (400V) | 22A |
| Rated Power AC-3 (400V) | 11 kW |
| Rated Current AC-1 (400V) | 40A |
| Rated Current AC-4 (400V) | 13A |
| Rated Power AC-4 (400V) | 5.5 kW |
| Control Supply Voltage Type | DC (Direct Current) |
| Control Supply Voltage Range | 20.4-26.4V DC |
| Main Contacts Configuration | 3 Normally Open (3NO) |
| Normally Closed Main Contacts | 0 |
| Auxiliary Contacts | 1NO + 1NC (1 Normally Open + 1 Normally Closed) |
| Auxiliary Contact Type | Mirror Contact per IEC 60947-4-1 |
| Power Circuit Terminal Type | Screw Terminals (Cable Clamp) |
| Power Terminal Capacity | 1.5mm² to 10mm² |
| Coil Terminal Capacity | 0.75mm² to 2.5mm² |
| Auxiliary Circuit Terminal Capacity | 0.75mm² to 2.5mm² |
| Mechanical Endurance | 15 million operations |
| Electrical Endurance | 2.5 million operations |
| Operation Cycles per Hour (AC-3) | 1800 cycles |
| Mounting System | 35mm DIN Rail (IEC 60715) and Mounting Plate |
| Installation Type | Modular, Rail-Mount |
| Coil Supply Position | Top or Bottom Side Flexible |
| Suitable for Distribution Board | Yes |
| Standards Compliance | IEC 60947-4-1 |
| RoHS Compliance | Yes |
| REACH Compliance | Yes |
| Carbon Footprint (Manufacturing Phase) | 4.75 kg CO₂eq |
| Environmental Classification | Environmentally Conscious Design |
| Accessories Compatibility | All Legrand CTX3 Accessories and Auxiliaries |
| Application | Industrial and Tertiary Installations |
| Load Type | Inductive and Non-Inductive Loads |
