Shop Legrand CTX³ 3-Pole Motor Contactor 22A AC-3 Screw Terminals | 416110 In Iraq Best Prices

Industrial-grade 3-pole motor contactor with 22A AC-3 rating, 11kW motor capacity, dual auxiliary contacts, 15M mechanical and 2.5M electrical operations, DIN rail mounting, and full IEC 60947-4-1 compliance.

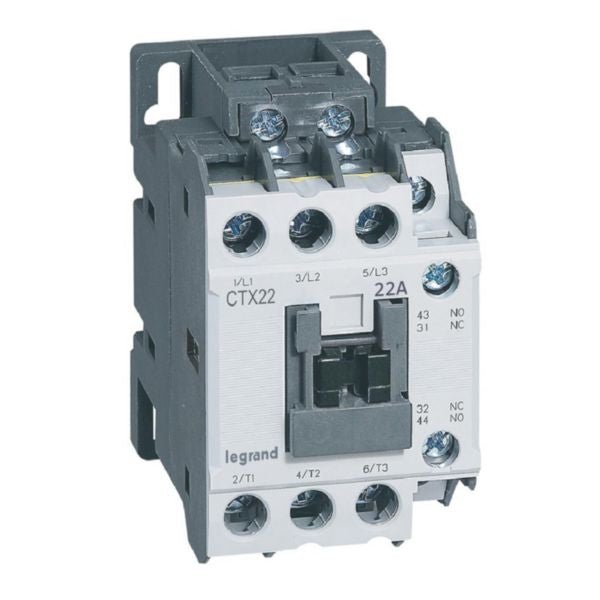

The Legrand CTX³ 3-pole contactor is a high-performance industrial switching device designed for reliable motor control and protection applications. With a rated capacity of 22A at AC-3 (suitable for 3-phase motors up to 11 kW at 415V), this contactor delivers exceptional performance for tertiary and industrial installations. The device features screw terminals with power capacity of 2x1.5mm² to 10mm², making it compatible with various cable sizes for flexible installation configurations. This contactor is engineered with advanced reliability features including 1 normally open (NO) and 1 normally closed (NC) auxiliary contact that meets the mirror contact definition according to IEC 60947-4-1 standard. The robust design ensures endurance up to 15 million mechanical operations and 2.5 million electrical operations, with a capability of 1800 operation cycles per hour under AC-3 conditions. The compact size optimizes space utilization in electrical cabinets while maintaining full compatibility with all Legrand CTX3 auxiliaries and accessories. The contactor offers flexible installation options with possible fixing on 35mm top hat mounting rails (IEC 60715) and mounting plates. The coil can be supplied from either the top or bottom side, providing installation flexibility. With DIN rail mounting capability and environmentally conscious design meeting substance-restriction requirements, this product represents a reliable solution for motor control in demanding industrial environments.

Key Features

22A AC-3 rating suitable for 3-phase motors up to 11 kW at 415V
Dual auxiliary contacts: 1NO and 1NC mirror contact per IEC 60947-4-1 standard
Exceptional endurance: 15 million mechanical operations and 2.5 million electrical operations
Flexible coil supply from top or bottom side for installation convenience
Compact DIN rail mounting design optimizing cabinet space utilization

Technical Specifications

Specification	Value
Product Type	3-Pole Motor Contactor
Rated Current (AC-3)	22A at 400V
Rated Power (AC-3)	11 kW at 400V
Rated Current (AC-1)	40A at 400V
Rated Current (AC-4)	13A at 400V
Rated Power (AC-4)	5.5 kW at 400V
Control Supply Voltage AC 50Hz	24V AC (20.4-26.4V range)
Control Supply Voltage AC 60Hz	24V AC (20.4-26.4V range)
Main Contacts Configuration	3 normally open (NO) contacts
Auxiliary Contacts	1NO + 1NC mirror contact
Power Terminal Capacity	2x1.5mm² to 10mm²
Coil Terminal Capacity	0.75mm² to 2.5mm²
Auxiliary Circuit Terminal Capacity	0.75mm² to 2.5mm²
Mechanical Operations	Up to 15 million operations
Electrical Operations	Up to 2.5 million operations
Operation Cycles per Hour (AC-3)	1800 cycles
Electrical Connection Type	Screw terminals (cable clamp)
Mounting Method	35mm top hat rail (IEC 60715) and mounting plate
Installation Standards	IEC 60947-4-1 compliant
Suitable for Distribution Board	Yes
Reference Number	416110
EAN Code	3414970400048
Carbon Footprint (Manufacturing)	4.75 kg CO₂ eq.
Environmental Compliance	RoHS compliant, REACH declaration available

Order Legrand CTX³ 3-Pole Motor Contactor 22A AC-3 Screw Terminals | 416110 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
