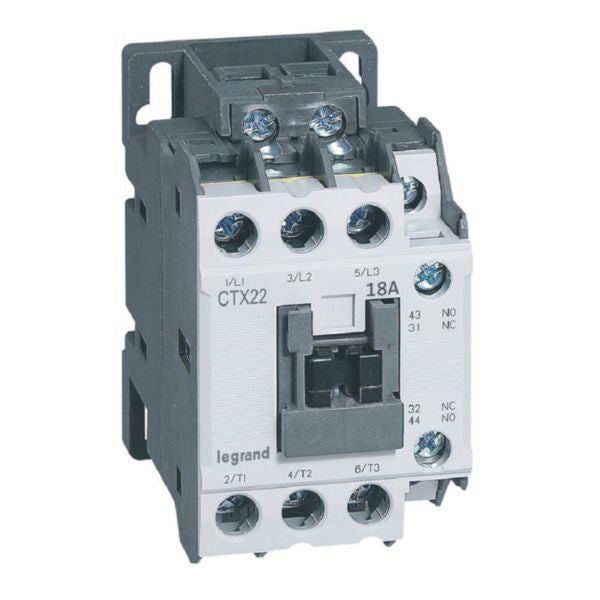

Shop Legrand CTX³ 3-Pole Motor Contactor 18A AC-3 24V | 416100 In Iraq Best Prices
Professional 3-pole motor contactor with 18A AC-3 rating, 7.5kW power capacity, and 24V AC coil. Features 1NO+1NC auxiliary contacts, screw terminals, and up to 15 million mechanical operations for reliable industrial motor control.
The Legrand CTX³ is a professional-grade 3-pole motor contactor designed for industrial and tertiary installations. With a rated current of 18A at AC-3 and power rating of 7.5kW at 415V, this contactor is engineered to efficiently switch 3-phase motors and resistive loads up to 40A (AC-1). The device features 1 normally open and 1 normally closed auxiliary contact, meeting the stringent requirements of IEC 60947-4-1 standard. Built with screw terminals accommodating power conductors from 1.5mm² to 10mm², this contactor ensures reliable electrical connections for both power and control circuits.
The CTX³ contactor boasts exceptional durability with an endurance rating of up to 15 million mechanical operations and 2.5 million electrical operations, supporting up to 1800 operation cycles per hour under AC-3 conditions. Its compact design enables optimal space utilization within electrical cabinets while maintaining full functionality. The contactor can be mounted on standard 35mm DIN rail (IEC 60715) or directly on mounting plates, providing installation flexibility. The coil can be supplied from either the top or bottom side, facilitating flexible installation configurations in various cabinet layouts.
This contactor is fully compatible with all Legrand CTX3 auxiliary modules and accessories, allowing for customized control solutions. The device complies with all substance-restriction requirements and has been manufactured using environmentally conscious processes. With its robust construction, proven reliability, and comprehensive feature set, the Legrand CTX³ contactor represents an excellent choice for motor control applications in industrial, commercial, and residential settings requiring dependable three-phase motor switching.
Key Features
- 18A AC-3 rated current for 3-phase motors up to 7.5kW at 415V
- 40A AC-1 resistive load capacity for flexible application coverage
- 1 normally open and 1 normally closed auxiliary contacts with mirror contact functionality
- Screw terminals accommodating 1.5mm² to 10mm² power conductors and 0.75mm² to 2.5mm² auxiliary conductors
- 15 million mechanical and 2.5 million electrical operations endurance rating
- 1800 operation cycles per hour capacity under AC-3 conditions
- DIN rail (IEC 60715) and mounting plate installation options
- Top or bottom coil supply flexibility for cabinet layout optimization
- Compatible with all Legrand CTX3 auxiliary modules and accessories
- IEC 60947-4-1 standard compliance with environmentally conscious manufacturing
Technical Specifications
| Specification |
Value |
| Product Type | 3-Pole Motor Contactor |
| Brand | Legrand |
| Model | CTX³ |
| Reference Number | 416100 |
| EAN Code | 3414970399847 |
| Rated Current AC-3 | 18A at 400V |
| Rated Power AC-3 | 7.5 kW at 415V |
| Rated Current AC-1 | 32A at 400V |
| Rated Current AC-4 | 11A at 400V |
| Rated Power AC-4 | 4 kW at 400V |
| Control Supply Voltage | 24V AC |
| Control Voltage Range AC 50Hz | 20.4-26.4V |
| Control Voltage Range AC 60Hz | 20.4-26.4V |
| Main Contacts | 3 Normally Open (NO) |
| Auxiliary Contacts | 1NO + 1NC (Mirror Contact) |
| Electrical Connection Type | Screw Terminals |
| Power Terminal Capacity | 1.5mm² to 10mm² |
| Coil Terminal Capacity | 0.75mm² to 2.5mm² |
| Auxiliary Circuit Terminal Capacity | 0.75mm² to 2.5mm² |
| Mechanical Operations | 15 million |
| Electrical Operations | 2.5 million |
| Operation Cycles per Hour AC-3 | 1800 |
| Mounting Options | 35mm DIN Rail (IEC 60715) / Mounting Plate |
| Coil Supply Position | Top or Bottom |
| Standard Compliance | IEC 60947-4-1 |
| Suitable for Distribution Board | Yes |
| Environmental Compliance | RoHS Compliant, REACH Compliant |
| Carbon Footprint Manufacturing | 4.75 kg CO₂ eq. |
| Installation Type | Industrial / Tertiary |
| Recommended Use | Switching of inductive and non-inductive loads |
Order Legrand CTX³ 3-Pole Motor Contactor 18A AC-3 24V | 416100 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
