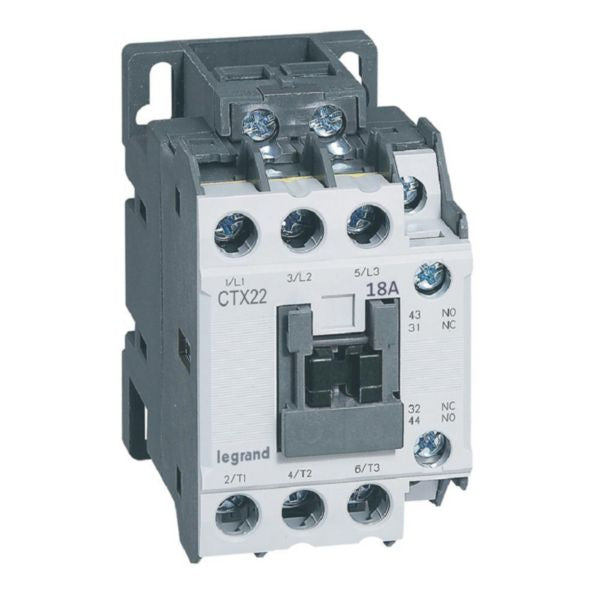

Shop Legrand CTX³ 3-Pole Motor Contactor 18A AC-3 Dual Voltage | 416106 In Iraq Best Prices
Industrial-grade 3-pole motor contactor with 18A AC-3 rating, dual voltage coil, 1NO+1NC auxiliary contacts, 15M mechanical and 2.5M electrical operations, DIN rail mount, and eco-friendly design.
The Legrand CTX³ motor contactor is a high-performance industrial switching device designed for reliable control of 3-phase asynchronous motors and inductive loads. With a rated capacity of 18A at AC-3 rating, this contactor is capable of switching motors up to 7.5 kW at 415V, making it ideal for industrial and tertiary installations. The device features 1 normally open (NO) and 1 normally closed (NC) auxiliary contact that meets IEC 60947-4-1 standards for mirror contact definition, providing flexible control and protection capabilities.
Built with exceptional durability in mind, the CTX³ contactor offers up to 15 million mechanical operations and 2.5 million electrical operations, with an operational cycle rate of 1800 cycles per hour under AC-3 conditions. The contactor features screw terminals accommodating power conductors from 1.5mm² to 10mm², coil connections from 0.75mm² to 2.5mm², and auxiliary circuit connections from 0.75mm² to 2.5mm². Its compact DIN rail mounting design optimizes cabinet space while maintaining full operational efficiency.
The CTX³ contactor is engineered with environmental responsibility in mind, complying with substance-restriction requirements and featuring an eco-friendly design. The coil can be supplied from either the top or bottom side for installation flexibility, and the device is compatible with all Legrand CTX3 auxiliaries and accessories. Its dual voltage coil design provides operational versatility for various industrial applications, making it an essential component for motor control and protection systems.
Key Features
- 18A AC-3 rating for 3-phase motors up to 7.5 kW at 415V
- 1 normally open and 1 normally closed auxiliary contacts with mirror contact compliance
- 15 million mechanical operations and 2.5 million electrical operations
- Dual voltage coil supply from top or bottom for installation flexibility
- Compact DIN rail mount design optimizing cabinet space
- Screw terminals: Power 1.5-10mm², Coil 0.75-2.5mm², Auxiliary 0.75-2.5mm²
- 1800 operation cycles per hour at AC-3 rating
- Eco-friendly design with substance-restriction compliance
- Compatible with all Legrand CTX3 auxiliaries and accessories
- Easy coil replacement engineering
Technical Specifications
| Specification |
Value |
| Product Model | CTX³ |
| Reference Number | 416106 |
| EAN Code | 3414970399960 |
| Number of Poles | 3-pole |
| Rated Current (AC-3) | 18A at 400V |
| Rated Power (AC-3) | 7.5 kW at 400V |
| Rated Current (AC-1) | 32A at 400V |
| Rated Current (AC-4) | 11A at 400V |
| Rated Power (AC-4) | 4 kW at 400V |
| Voltage Type | AC (Alternating Current) |
| Control Supply Voltage AC 50Hz | 195.5-253V |
| Control Supply Voltage AC 60Hz | 195.5-253V |
| Normally Open Main Contacts | 3 |
| Normally Closed Main Contacts | 0 |
| Auxiliary Contacts (NO) | 1 |
| Auxiliary Contacts (NC) | 1 |
| Main Circuit Connection Type | Cable clamp (Screw terminals) |
| Power Terminal Capacity | 1.5mm² to 10mm² |
| Coil Terminal Capacity | 0.75mm² to 2.5mm² |
| Auxiliary Circuit Terminal Capacity | 0.75mm² to 2.5mm² |
| Mechanical Operations | Up to 15 million |
| Electrical Operations | Up to 2.5 million |
| Operation Cycles per Hour (AC-3) | 1800 |
| Mounting Type | DIN rail mount (35mm top hat rail IEC 60715) and mounting plate |
| Auxiliary Contact Type | Mirror contact (IEC 60947-4-1 compliant) |
| Coil Supply Position | Top or bottom side |
| Suitable for Distribution Board | Yes |
| Carbon Footprint (Manufacturing) | 4.750 kg CO2 eq. |
| Compliance Standards | IEC 60947-4-1, RoHS, REACH |
| Environmental Design | Eco-friendly, substance-restriction compliant |
| Manufacturer | Legrand |
| Application | 3-phase motor control, inductive and non-inductive load switching |
| Installation Environment | Tertiary and industrial installations |
Order Legrand CTX³ 3-Pole Motor Contactor 18A AC-3 Dual Voltage | 416106 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
