Shop Legrand CTX³ 3-Pole Motor Contactor 150A DC Actuation | 416261 In Iraq Best Prices
Professional 3-pole motor contactor with 150A AC-3 rating, DC actuation, 2NO+2NC auxiliary contacts, suitable for 3-phase motors up to 75 kW with 5 million mechanical operations endurance

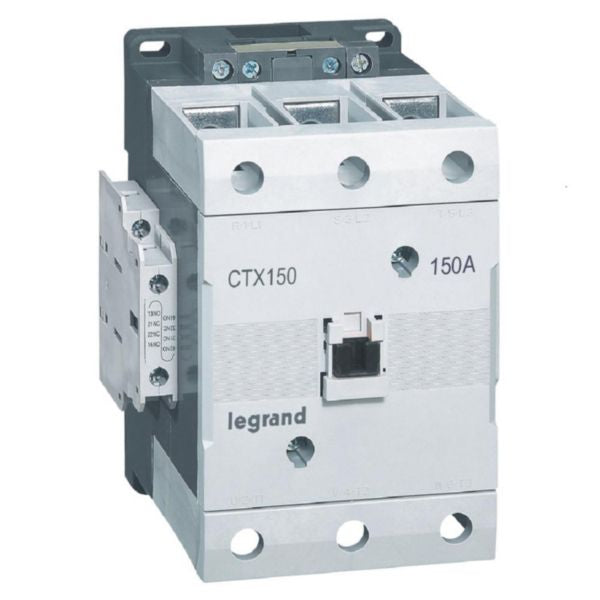

The Legrand CTX³ is a professional-grade 3-pole motor contactor designed for industrial and tertiary installations. With a 150A AC-3 rating, this contactor is engineered to switch 3-phase motors up to 75 kW at 415V, making it ideal for medium to large motor applications. The device features DC voltage actuation with a rated control supply voltage of 20.4-26.4V DC, ensuring reliable and precise switching operations. Equipped with 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts, this contactor provides flexible control and monitoring capabilities for complex motor control circuits.
The CTX³ contactor demonstrates exceptional durability and reliability with an endurance rating of up to 5 million mechanical operations and 1 million electrical operations. The screw terminal capacity accommodates power conductors from 2 x 35mm² to 95mm², while coil and auxiliary circuit connections support 0.75mm² to 2.5mm² conductors. With a maximum operation cycle rate of 1,200 cycles per hour in AC-3 mode, this contactor is built for demanding industrial environments. The modular design allows for easy replacement of the coil and compatibility with all Legrand CTX3 auxiliaries and accessories.
The contactor features advanced design elements including removable front cover for visual inspection of arc chambers and contacts, and flexible coil supply positioning available on either the top or bottom side. It is suitable for distribution boards and complies with substance-restriction requirements and environmentally conscious manufacturing processes. The product is specifically recommended for switching inductive and non-inductive loads in industrial motor control applications.
Key Features
- 150A AC-3 rating for 3-phase motors up to 75 kW at 415V
- DC voltage actuation with 20.4-26.4V control supply range
- 2 normally open and 2 normally closed auxiliary contacts with mirror contact compliance
- 5 million mechanical operations and 1 million electrical operations endurance
- Modular design with easy coil replacement and full Legrand CTX3 accessory compatibility
- Screw terminals supporting power 2x35-95mm² and coil 0.75-2.5mm² conductors
- Removable front cover for arc chamber and contact inspection
- Flexible coil supply positioning on top or bottom side
- Suitable for distribution boards and industrial installations
- Environmentally conscious manufacturing and RoHS/REACH compliant
Technical Specifications
| Specification |
Value |
| Product Type | 3-Pole Motor Contactor |
| Rated Current AC-3 | 150A at 400V |
| Rated Current AC-1 | 210A at 400V |
| Rated Current AC-4 | 110A at 400V |
| Rated Power AC-3 | 75 kW at 400V |
| Rated Power AC-4 | 55 kW at 400V |
| Control Supply Voltage | DC 20.4-26.4V |
| Actuation Type | DC Voltage |
| Main Contacts | 3 Normally Open (3NO) |
| Auxiliary Contacts | 2 Normally Open + 2 Normally Closed (2NO+2NC) |
| Terminal Type | Screw Terminals (Cable Clamp) |
| Power Terminal Capacity | 2 x 35mm² to 95mm² |
| Coil Terminal Capacity | 0.75mm² to 2.5mm² |
| Auxiliary Circuit Capacity | 0.75mm² to 2.5mm² |
| Mechanical Operations | Up to 5 Million |
| Electrical Operations | Up to 1 Million |
| Maximum Operation Cycles/Hour AC-3 | 1,200 cycles |
| Design Type | Modular with Removable Front Cover |
| Coil Supply Position | Top or Bottom Side |
| Distribution Board Suitable | Yes |
| Reference Number | 416261 |
| EAN Code | 3414970403063 |
| Carbon Footprint Manufacturing | 19.0 kg CO₂ eq. |
| Compliance Standards | IEC 60947-4-1, RoHS, REACH |
| Application | 3-Phase Motor Control, Industrial & Tertiary Installations |
