Shop Legrand CTX³ 3-Pole Motor Contactor 130A AC-3 Modular | 416256 In Iraq Best Prices
Professional 3-pole motor contactor with 130A AC-3 rating, 60 kW power capacity, modular screw connection design, and dual auxiliary contacts for industrial automation and motor control applications.

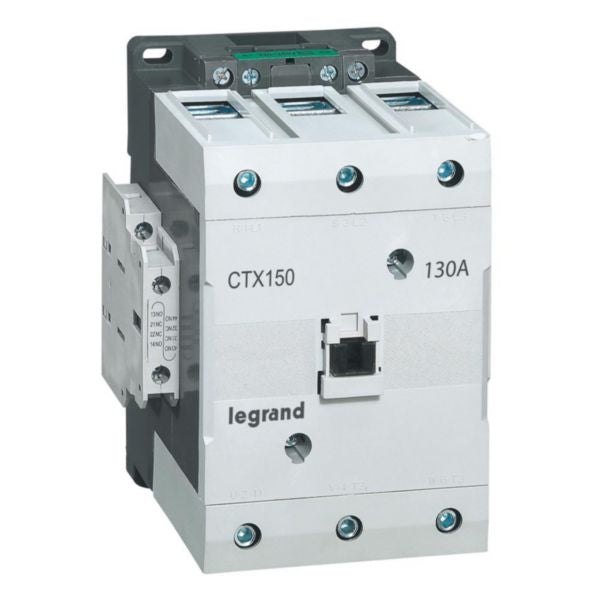

The Legrand CTX³ is a premium 3-pole motor contactor designed for industrial and tertiary applications. With a rated current of 130A at AC-3 (400V) and power capacity of 60 kW, this contactor is engineered for switching three-phase motors and resistive loads up to 160A at AC-1. The device features a modular design with screw connections, making it ideal for distribution board installations and industrial control systems.
This contactor is equipped with 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts, providing flexible control options for complex automation systems. The NC auxiliary contact meets the IEC 60947-4-1 standard definition of mirror contact, ensuring reliable operation. The CTX³ supports both AC and DC coil supplies with voltage ranges of 85-264V AC (50/60 Hz) and 85-242V DC, offering maximum versatility in control applications.
Built for durability and reliability, the CTX³ delivers up to 5 million mechanical operations and 1 million electrical operations. The device features removable front cover for easy visual inspection of arc chambers and contacts, and engineered coil replacement capability. With cage terminals accommodating power connections from 2 x 35mm² to 95mm², auxiliary circuits from 0.75mm² to 2.5mm², and coil connections from 0.75mm² to 2.5mm², this contactor provides comprehensive connectivity options for diverse industrial installations.
Key Features
- 130A AC-3 rated current (400V) with 60 kW switching power for three-phase motors
- 160A AC-1 rated current for resistive loads with modular screw connection design
- 2NO + 2NC auxiliary contacts with IEC 60947-4-1 mirror contact compliance
- AC/DC coil supply 85-264V AC (50/60 Hz) and 85-242V DC for flexible control
- 5 million mechanical operations and 1 million electrical operations endurance rating
- Removable front cover for easy inspection of arc chambers and contacts
- Engineered coil replacement capability with top or bottom coil supply positioning
- Cage terminals supporting 2 x 35-95mm² power, 0.75-2.5mm² coil and auxiliary circuits
- 1200 operation cycles per hour at AC-3 rated conditions
- Environmentally conscious design compliant with substance-restriction requirements
Technical Specifications
| Specification |
Value |
| Product Type | 3-Pole Motor Contactor |
| Model | CTX³ |
| Reference Number | 416256 |
| EAN Code | 3414970402967 |
| Rated Current AC-3 (400V) | 130A |
| Rated Current AC-1 (400V) | 160A |
| Rated Power AC-3 (400V) | 60 kW |
| Rated Power AC-4 (400V) | 45 kW |
| Rated Current AC-4 (400V) | 90A |
| Coil Supply Voltage AC (50 Hz) | 85-264V |
| Coil Supply Voltage AC (60 Hz) | 85-264V |
| Coil Supply Voltage DC | 85-242V |
| Voltage Type | AC/DC |
| Main Contacts | 3 Normally Open (NO), 0 Normally Closed (NC) |
| Auxiliary Contacts | 2 NO + 2 NC |
| Electrical Connection Type | Screw Connection |
| Power Terminal Capacity | 2 x 35mm² to 95mm² |
| Coil Terminal Capacity | 0.75mm² to 2.5mm² |
| Auxiliary Circuit Terminal Capacity | 0.75mm² to 2.5mm² |
| Mechanical Operations | 5 Million |
| Electrical Operations | 1 Million |
| Operation Cycles Per Hour (AC-3) | 1200 |
| Design Standard | IEC 60947-4-1 |
| Installation Type | Mounting on Distribution Board |
| Design Feature | Modular Version with Removable Front Cover |
| Coil Positioning | Top or Bottom Supply |
| Carbon Footprint (Manufacturing) | 19.000 kg CO₂ eq. |
| Environmental Compliance | RoHS Directive, REACH Declaration |
| Suitable for Distribution Board | Yes |
| Auxiliary Contact Type | Mirror Contact (IEC 60947-4-1 Compliant) |
