Shop Legrand CTX³ 3-Pole Motor Contactor 130A AC-3 DC Coil | 416241 In Iraq Best Prices
Professional 3-pole motor contactor with 130A AC-3 rating, 60 kW capacity, 24V DC coil, 2NO+2NC auxiliary contacts, screw terminals, and 5 million mechanical operations endurance for reliable industrial motor control.

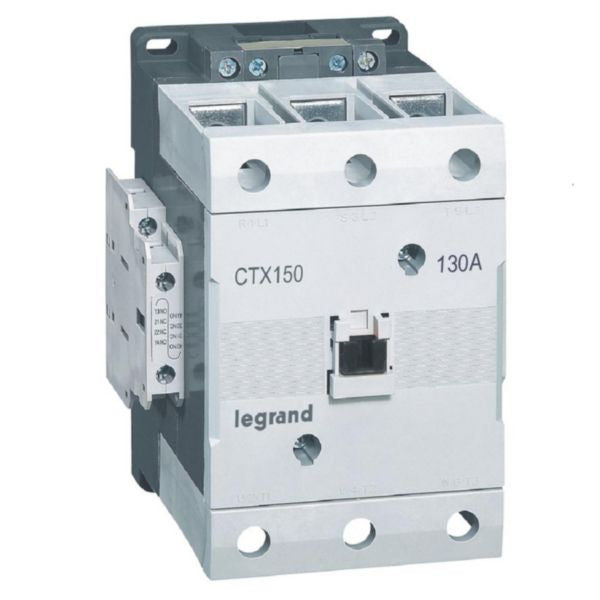

The Legrand CTX³ is a professional-grade 3-pole motor contactor designed for demanding industrial and tertiary applications. With a rated current of 130A at AC-3 (60 kW at 415V), this contactor delivers reliable switching of three-phase motors and resistive loads up to 160A. The device features a 24V DC coil with screw terminals capable of accommodating power connections from 35mm² to 70mm², ensuring secure and flexible installation in various electrical configurations.
This contactor is engineered for exceptional durability with up to 5 million mechanical operations and 1 million electrical operations, supporting 1200 AC-3 operation cycles per hour. It comes equipped with 2NO (normally open) + 2NC (normally closed) auxiliary contacts that meet IEC 60947-4-1 standards, providing comprehensive control and monitoring capabilities. The modular design allows easy replacement of the coil and features a removable front cover for visual inspection of arc chambers and contacts, enabling straightforward maintenance and diagnostics.
The CTX³ contactor combines advanced engineering with environmental consciousness, featuring a carbon footprint of 19 kg CO₂eq during manufacturing. Compatible with all Legrand CTX3 accessories and auxiliaries, this contactor is the ideal choice for applications requiring robust motor control, reliable switching performance, and long-term operational stability in industrial environments.
Key Features
- 130A AC-3 rating with 60 kW switching capacity at 415V for three-phase motors
- 24V DC coil with flexible screw terminals (Power: 35-70mm², Coil: 0.75-2.5mm², Aux: 0.75-2.5mm²)
- 2NO + 2NC auxiliary contacts meeting IEC 60947-4-1 standards for comprehensive control
- 5 million mechanical operations and 1 million electrical operations with 1200 AC-3 cycles per hour
- Modular design with removable front cover for easy maintenance and visual inspection of contacts
Technical Specifications
| Specification |
Value |
| Product Type | 3-Pole Motor Contactor |
| Rated Current AC-3 at 400V | 130A |
| Rated Power AC-3 at 400V | 60 kW |
| Rated Current AC-1 at 400V | 160A |
| Rated Current AC-4 at 400V | 90A |
| Rated Power AC-4 at 400V | 45 kW |
| Control Supply Voltage | 24V DC |
| Control Voltage Range | 20.4V - 26.4V DC |
| Main Contacts Configuration | 3 Normally Open (NO) |
| Auxiliary Contacts | 2NO + 2NC |
| Power Terminal Capacity | 35mm² to 70mm² |
| Coil Terminal Capacity | 0.75mm² to 2.5mm² |
| Auxiliary Terminal Capacity | 0.75mm² to 2.5mm² |
| Connection Type | Screw Terminals (Cable Clamp) |
| Mechanical Operations | 5 Million |
| Electrical Operations | 1 Million |
| AC-3 Operation Cycles per Hour | 1200 |
| Mounting | Mounting Plate |
| Suitable for Distribution Board | Yes |
| Carbon Footprint (Manufacturing) | 19 kg CO₂eq |
| Reference Number | 416241 |
| EAN Code | 3414970402660 |
| Manufacturer | Legrand |
| Coil Replacement | Easy - Engineered for simple replacement |
| Front Cover | Removable for visual inspection |
Order Legrand CTX³ 3-Pole Motor Contactor 130A AC-3 DC Coil | 416241 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
