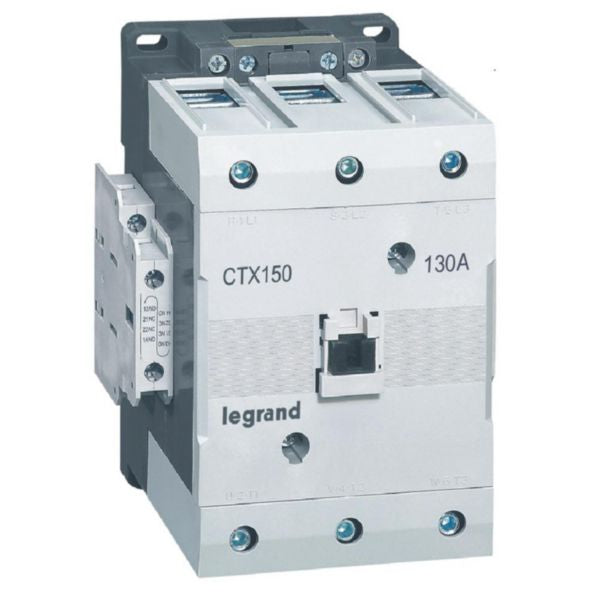

Shop Legrand CTX³ 3-Pole Motor Contactor 130A AC-3 Screw | 416250 In Iraq Best Prices
Industrial-grade 3-pole motor contactor with 130A AC-3 rating, 60 kW capacity, 2NO+2NC auxiliary contacts, screw terminals, and 5 million mechanical operations endurance for reliable motor control.
The Legrand CTX³ is a premium 3-pole motor contactor designed for industrial and tertiary applications, offering exceptional reliability and performance. With a rated capacity of 130A at AC-3 rating, this contactor can efficiently switch 3-phase motors up to 60 kW at 415V, or resistive loads up to 160A at AC-1. The device features 2NO+2NC auxiliary contacts that comply with IEC 60947-4-1 standards, ensuring mirror contact functionality for enhanced safety and control.
This contactor is engineered with a modular design that allows for easy coil replacement and flexible installation options. The coil supply can be positioned either on the top or bottom side of the unit, providing installation flexibility. With cage terminal capacity supporting power connections from 2x35mm² to 95mm² and auxiliary circuit connections from 0.75mm² to 2.5mm², this contactor accommodates various wiring configurations. The robust construction ensures up to 5 million mechanical operations and 1 million electrical operations, with a maximum operational cycle rate of 1200 cycles per hour under AC-3 conditions.
The CTX³ contactor incorporates environmentally conscious design principles and complies with substance-restriction requirements. It features a removable front cover for visual inspection of arc chambers and contacts, facilitating maintenance and troubleshooting. The screw connection type ensures secure and reliable power distribution, making it ideal for demanding industrial environments. Compatible with all Legrand CTX3 auxiliaries and accessories, this contactor provides a comprehensive solution for motor control and protection applications.
Key Features
- 130A AC-3 rated capacity for 3-phase motors up to 60 kW at 415V
- 2NO+2NC auxiliary contacts with mirror contact functionality per IEC 60947-4-1
- Up to 5 million mechanical operations and 1 million electrical operations
- Flexible coil supply positioning on top or bottom side of unit
- Removable front cover for visual inspection of arc chambers and contacts
- Modular design for easy coil replacement and maintenance
- Screw connection terminals with capacity from 2x35mm² to 95mm²
- Maximum 1200 operational cycles per hour under AC-3 conditions
- Environmentally conscious design with substance-restriction compliance
- Compatible with all Legrand CTX3 auxiliaries and accessories
Technical Specifications
| Specification |
Value |
| Product Model | CTX³ 3-Pole Motor Contactor |
| Reference Number | 416250 |
| EAN Code | 3414970402844 |
| Rated Voltage AC-3 at 400V | 130A |
| Rated Power AC-3 at 400V | 60 kW |
| Rated Current AC-1 at 400V | 160A |
| Rated Current AC-4 at 400V | 90A |
| Rated Power AC-4 at 400V | 45 kW |
| Control Supply Voltage AC 50Hz | 20.4-26.4V |
| Control Supply Voltage AC 60Hz | 20.4-26.4V |
| Voltage Type for Actuating | AC |
| Main Circuit Contacts | 3 Normally Open |
| Auxiliary Contacts | 2 Normally Open + 2 Normally Closed |
| Electrical Connection Type | Screw Connection |
| Power Terminal Capacity | 2 x 35mm² to 95mm² |
| Coil Terminal Capacity | 0.75mm² to 2.5mm² |
| Auxiliary Circuit Terminal Capacity | 0.75mm² to 2.5mm² |
| Mechanical Operations Endurance | 5 Million |
| Electrical Operations Endurance | 1 Million |
| Maximum Operational Cycles per Hour | 1200 (AC-3) |
| Suitable for Distribution Board | Yes |
| Design Standards | IEC 60947-4-1 Compliant |
| Carbon Footprint Manufacturing Phase | 19.000 kg CO₂ eq. |
| Installation Method | Mounting Plate Fixing |
| Coil Supply Position Options | Top or Bottom Side |
| Front Cover | Removable for Arc Chamber Inspection |
| Environmental Compliance | Substance-Restriction Requirements Compliant |
| Manufacturer | Legrand |
