Shop Legrand CTX³ 3-Pole Motor Contactor 100A AC-3 Screw Terminals | 416226 In Iraq Best Prices

Professional 3-pole motor contactor with 100A AC-3 rating, 55 kW capacity at 415V, screw terminals, 2NO+2NC auxiliary contacts, 12M mechanical and 2M electrical operations, modular rail-mount design for industrial motor control applications.

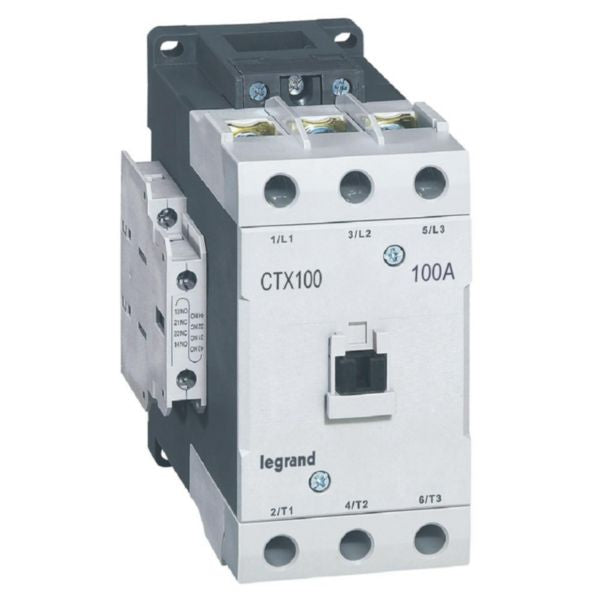

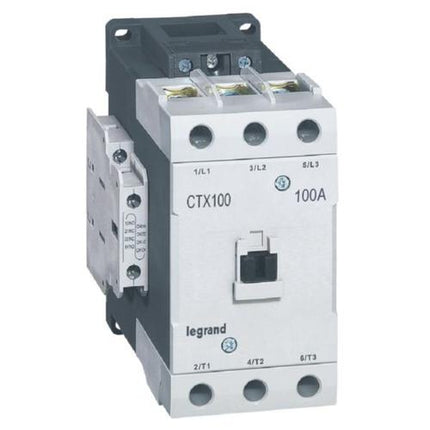

The Legrand CTX³ motor contactor is a professional-grade 3-pole switching device designed for industrial and tertiary installations. With a 100A AC-3 rating, it efficiently handles 3-phase motor switching up to 55 kW at 415V, making it ideal for motor control applications. The contactor features screw terminals with capacity for power connections from 10mm² to 70mm², coil connections from 0.75mm² to 2.5mm², and auxiliary circuit connections from 0.75mm² to 2.5mm². This modular version includes 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts, where the NC contact meets the mirror contact definition according to IEC 60947-4-1 standard. Engineered for reliability and durability, the CTX³ contactor delivers exceptional endurance with up to 12 million mechanical operations and 2 million electrical operations. The device operates at 1800 cycles per hour in AC-3 mode and can handle resistive loads up to 160A (AC-1). Its compact modular design allows for mounting on standard 35mm "top hat" mounting rails (IEC 60715) or mounting plates, optimizing cabinet space utilization. The removable front cover enables easy visual inspection of arc chambers and contacts for maintenance purposes. The coil supply can be positioned either on the top or bottom side, providing flexible installation options. The contactor is equipped with factory-assembled auxiliary contacts and features an engineered design for easy coil replacement. All components comply with substance-restriction requirements and have been designed with environmental consciousness. This product is recommended for switching both inductive and non-inductive loads and is compatible with all Legrand CTX3 accessories and auxiliaries.

Key Features

100A AC-3 rated contactor for 3-phase motor switching up to 55 kW at 415V
2 normally open and 2 normally closed auxiliary contacts with mirror contact compliance (IEC 60947-4-1)
Screw terminal connections: Power 10-70mm², Coil 0.75-2.5mm², Auxiliary 0.75-2.5mm²
Exceptional endurance: 12 million mechanical operations and 2 million electrical operations
Compact modular design for 35mm rail mounting with removable front cover for easy maintenance
Flexible coil supply positioning (top or bottom mounted) with factory-assembled auxiliary contacts
Handles resistive loads up to 160A (AC-1) with 1800 operation cycles per hour in AC-3 mode
Compatible with all Legrand CTX3 accessories and auxiliaries for extended functionality

Technical Specifications

Specification	Value
Product Type	3-Pole Motor Contactor
Rated Control Supply Voltage AC 50 Hz	195.5-253 V
Rated Control Supply Voltage AC 60 Hz	195.5-253 V
Voltage Type for Actuating	AC
Rated Operation Current AC-1 at 400V	160 A
Rated Operation Current AC-3 at 400V	105 A
Rated Operation Power AC-3 at 400V	55 kW
Rated Operation Current AC-4 at 400V	75 A
Rated Operation Power AC-4 at 400V	37 kW
Number of Main Contacts	3 normally open (3NO)
Number of Auxiliary Contacts	2 normally open + 2 normally closed (2NO+2NC)
Main Circuit Connection Type	Screw Terminals (Cable Clamp)
Power Terminal Capacity	2 x 10mm² to 70mm²
Coil Terminal Capacity	0.75mm² to 2.5mm²
Auxiliary Circuit Terminal Capacity	0.75mm² to 2.5mm²
Mechanical Endurance	12 million operations
Electrical Endurance	2 million operations
Operation Cycles per Hour AC-3	1800 cycles/hour
Mounting Method	35mm Top Hat Rail (IEC 60715) or Mounting Plate
Design Version	Modular with Screw Terminals
Suitable for Distribution Board	Yes
Auxiliary Contact Configuration	Factory Assembled
Front Cover	Removable for Inspection
Coil Supply Positioning	Top or Bottom Mounted
Reference Number	416226
EAN Code	3414970402363
Carbon Footprint Manufacturing Phase	14.25 kg CO₂ eq.
Compliance Standards	IEC 60947-4-1, RoHS, REACH
Environmental Compliance	Substance-restriction requirements met, Environmentally conscious design
Recommended Application	Tertiary and industrial installations for inductive and non-inductive loads

Order Legrand CTX³ 3-Pole Motor Contactor 100A AC-3 Screw Terminals | 416226 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
